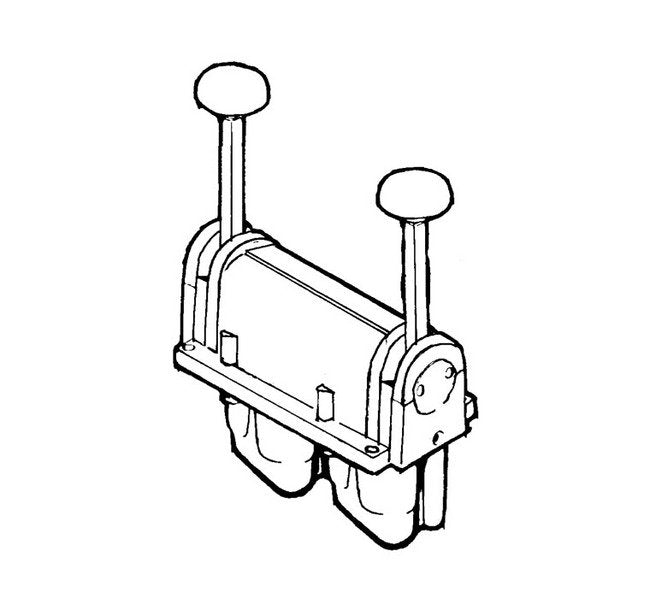

Rexroth 2-HA-3 & 2-HA-4 Quadruple 3-Way Valve Set

Name: Rexroth 2-HA-3 & 2-HA-4 Quadruple 3-Way Valve Set
Brand: Distributor To Industry, Inc.
SKU: DRI-df3c1c
Price: 299.99 USD
Availability: OutOfStock

SKU:DRI-df3c1c

Premium Rexroth 2-HA-3 & 2-HA-4 Quadruple 3-Way Valve Set for precise directional control and enhanced durability.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Rexroth 2-HA-3 & 2-HA-4 Quadruple 3-Way Valve Set, part of the Aventics Panel-Mounted PILOTAIR Valves, offers exceptional versatility and durability. Designed for deluxe panel mountings, they feature a streamlined compact design suitable for various outdoor installations. With multiple detent options and a range of handle positions, these valves provide precise directional control with superior strength and longer service life. Ideal for multi-position cylinders and diverse circuit applications, the 2-HA-3 and 2-HA-4 models ensure reliable performance in demanding environments.

Product Specifications

Features Features

Several new features have been designed into the Panel-Mounted "A" PILOTAIR Valve for added strength, easier maintenance and longer service life.One-piece solid steel shaft for increased strength.Bronze bearings in cam housing for longer wear.Separate steel handle and hub for increased strength.Tooth-type Nylatron plastic detents for longer wear and more positive detenting.Internal centering spring assembly for longer wear and more positive handle centering.Die-cast anodized aluminum body and cam housing for lighter weight, added strength and corrosion resistance.More-positive handle latch. Available in one, two, and three positions for added flexibility and longer service lift.

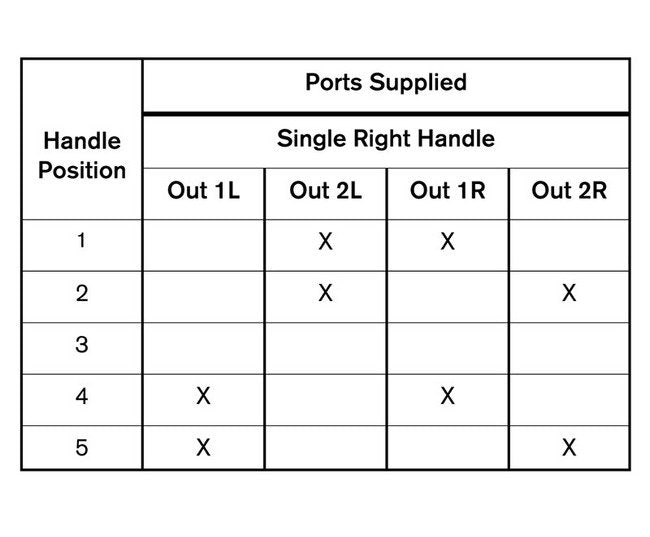

Specifications Handle Positions

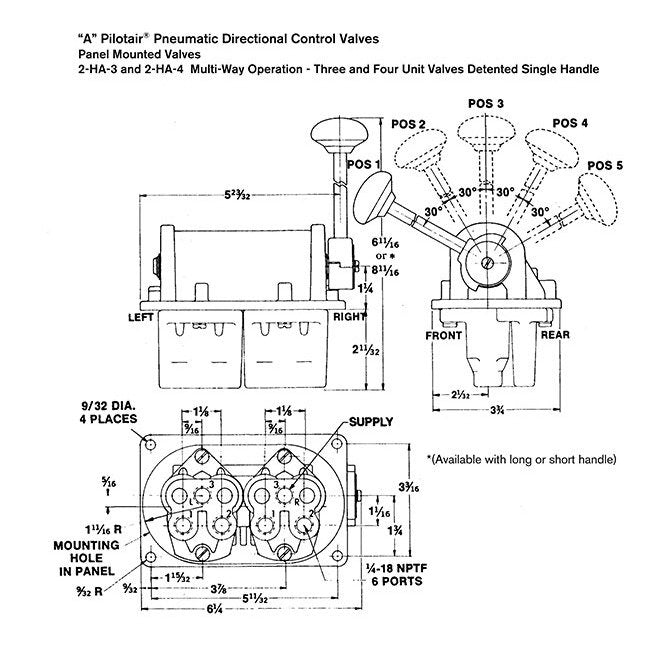

Specifications Height

6 11/16 in. | 8 11/16 in.

Specifications Length

6 1/4 in.

Specifications Model

2-HA-4

Specifications Old Part

P 060957 | P -060957-00000 | P 60957 | P060957 | P60957

Specifications Type

Quadruple 3-Way Valve

Specifications Weight

4 lb | 1.81 kg

Specifications Width

3 3/4 in.

Rexroth 2-HA-3 & 2-HA-4 Quadruple 3-Way Valve Set
