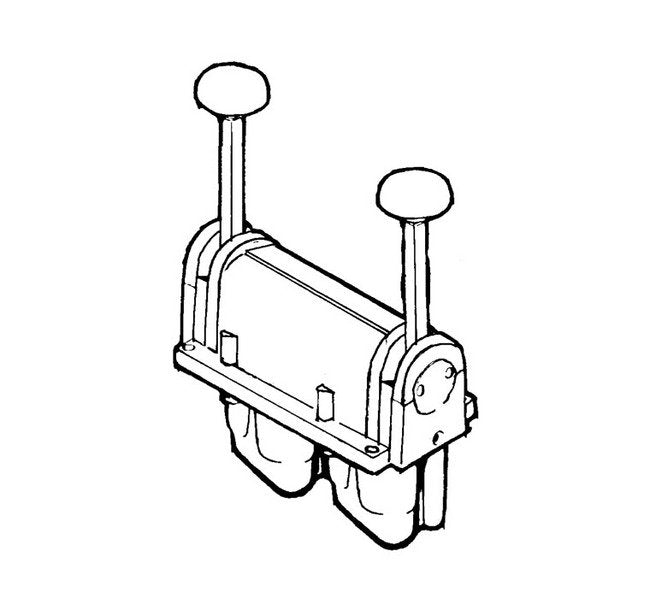

The Rexroth 2-HA-3 & 2-HA-4 Quadruple 3-Way Valve is a high-performance pneumatic directional control valve designed for deluxe panel mountings and outdoor installations. With a streamlined compact design, this valve offers increased strength, easy maintenance, and long service life. Featuring a solid steel shaft, bronze bearings, Nylatron plastic detents, and die-cast aluminum body, it ensures durability and corrosion resistance. The valve's multiple handle positions, detent options, and internal centering spring provide operational versatility, making it ideal for applications requiring up to four different circuits.
Product Specifications
Features Features
Several new features have been designed into the Panel-Mounted "A" PILOTAIR Valve for added strength, easier maintenance and longer service life.One-piece solid steel shaft for increased strength.Bronze bearings in cam housing for longer wear.Separate steel handle and hub for increased strength.Tooth-type Nylatron plastic detents for longer wear and more positive detenting.Internal centering spring assembly for longer wear and more positive handle centering.Die-cast anodized aluminum body and cam housing for lighter weight, added strength and corrosion resistance.More-positive handle latch. Available in one, two, and three positions for added flexibility and longer service lift.

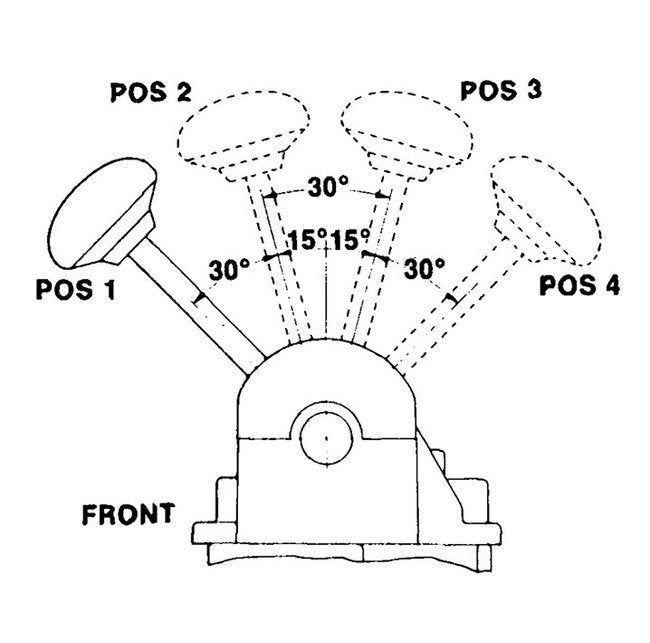

Specifications Handle Positions
5

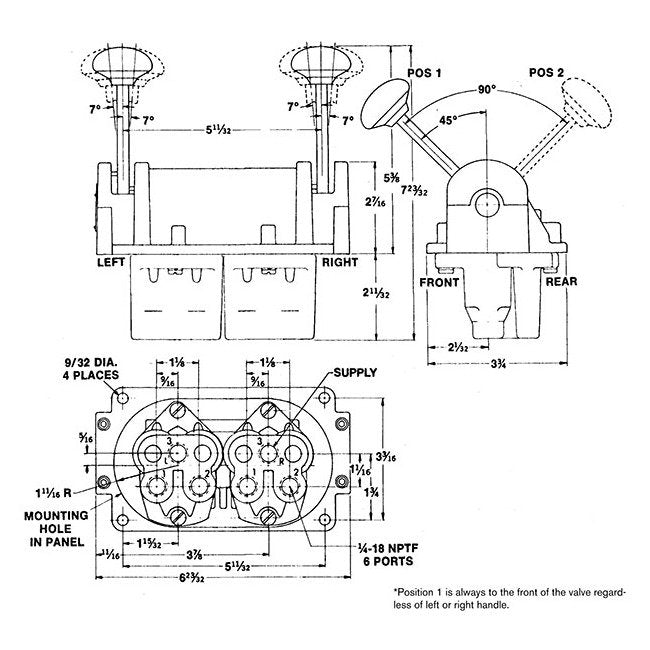

Specifications Height
7 23/32 in.
Specifications Length
6 5/16 in.
Specifications Model
2-HA-4
Specifications Old Part
P -058455-00002 | P 058455-2 | P 58455-2 | P058455-2 | P58455-2
Specifications Type
Quadruple 3-Way Valve
Specifications Weight
4 lb | 1.81 kg
Specifications Width
3 3/4 in.
