Rexroth 2-HA-3 & 2-HA-4 Single Handle Panel-Mounted Valve

Name: Rexroth 2-HA-3 & 2-HA-4 Single Handle Panel-Mounted Valve
Brand: Distributor To Industry, Inc.
SKU: DRI-e5469b
Price: 299.99 USD
Availability: OutOfStock

SKU:DRI-e5469b

Enhanced Panel-Mounted Valve for versatile control in demanding conditions.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

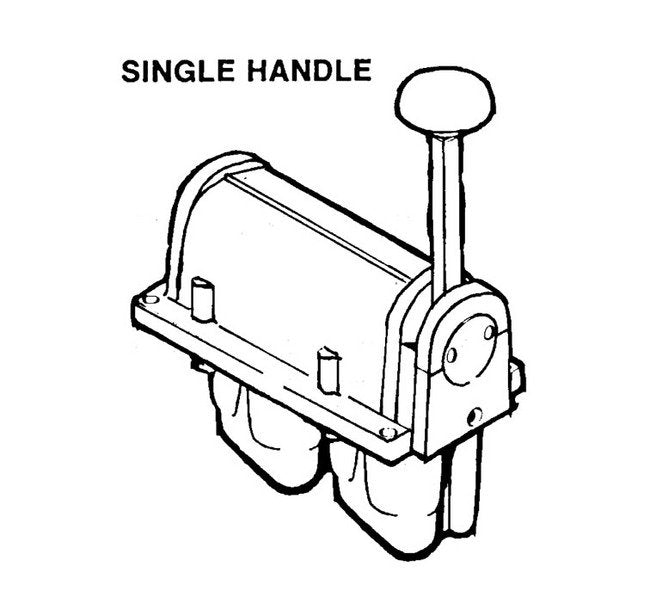

The Rexroth 2-HA-3 & 2-HA-4 Single Handle Panel-Mounted Valve offers unparalleled versatility and durability. Designed for deluxe panel mountings, it features a streamlined compact design suitable for various installations. With robust construction and innovative features like solid steel shaft, bronze bearings, and Nylatron detents, this valve ensures long service life and easy maintenance. Ideal for Transmission Controls and multiposition cylinders, it allows for up to four different circuits with a single or dual handle operation.

Product Specifications

Features Features

Several new features have been designed into the Panel-Mounted "A" PILOTAIR Valve for added strength, easier maintenance and longer service life.One-piece solid steel shaft for increased strength.Bronze bearings in cam housing for longer wear.Separate steel handle and hub for increased strength.Tooth-type Nylatron plastic detents for longer wear and more positive detenting.Internal centering spring assembly for longer wear and more positive handle centering.Die-cast anodized aluminum body and cam housing for lighter weight, added strength and corrosion resistance.More-positive handle latch. Available in one, two, and three positions for added flexibility and longer service lift.

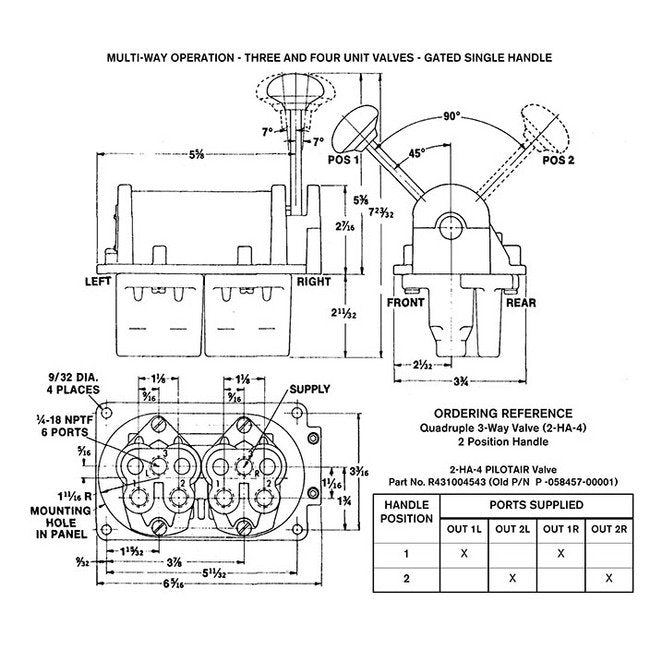

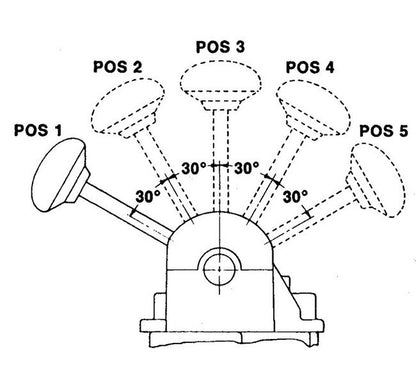

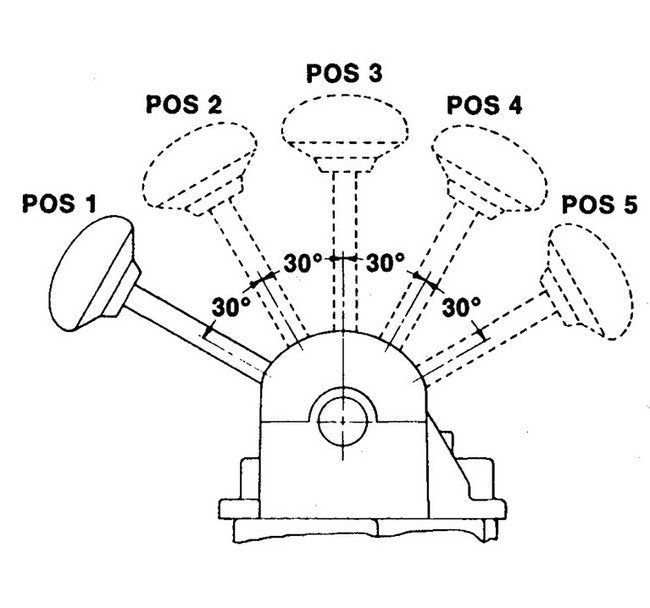

Specifications Handle Positions

Specifications Height

7 23/32 in.

Specifications Length

6 5/16 in.

Specifications Model

2-HA-4

Specifications Old Part

P -058892-00001 | P 058892-1 | P 58992-1 | P058892-1 | P58992-1

Specifications Type

Quadruple 3-Way Valve

Specifications Weight

4 lb | 1.81 kg

Specifications Width

3 3/4 in.

Rexroth 2-HA-3 & 2-HA-4 Single Handle Panel-Mounted Valve
