Rexroth 2-HA-3 & 2-HA-4 Triple 3-Way Panel-Mounted Valve
Rexroth 2-HA-3 & 2-HA-4 Triple 3-Way Panel-Mounted Valve
SKU:DRI-498406
Enhanced Rexroth 2-HA-3 & 2-HA-4 Triple 3-Way Panel-Mounted Valve for precise pneumatic directional control.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Rexroth 2-HA-3 & 2-HA-4 Triple 3-Way Panel-Mounted Valve
$189.99
Quantity: 1
Claim Your Seller Account
Rexroth 2-HA-3 & 2-HA-4 Triple 3-Way Panel-Mounted Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rexroth 2-HA-3 & 2-HA-4 Triple 3-Way Panel-Mounted Valve offers unparalleled versatility and durability for pneumatic directional control applications. Designed with a streamlined compact build for deluxe panel mountings, this valve features a solid steel shaft, bronze bearings, and tooth-type detents for enhanced strength and wear resistance. With die-cast aluminum construction and multiple handle positions, this valve ensures precise control and longevity in diverse working conditions. Ideal for multiposition cylinders and transmission controls, it complies with federal procurement standards and industry-specific certifications.
Product Specifications
Features Features
Several new features have been designed into the Panel-Mounted "A" PILOTAIR Valve for added strength, easier maintenance and longer service life.One-piece solid steel shaft for increased strength.Bronze bearings in cam housing for longer wear.Separate steel handle and hub for increased strength.Tooth-type Nylatron plastic detents for longer wear and more positive detenting.Internal centering spring assembly for longer wear and more positive handle centering.Die-cast anodized aluminum body and cam housing for lighter weight, added strength and corrosion resistance.More-positive handle latch. Available in one, two, and three positions for added flexibility and longer service lift.

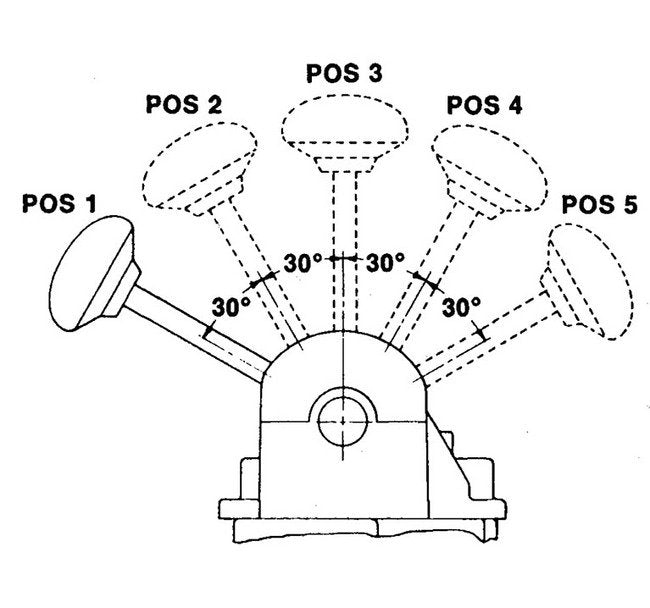

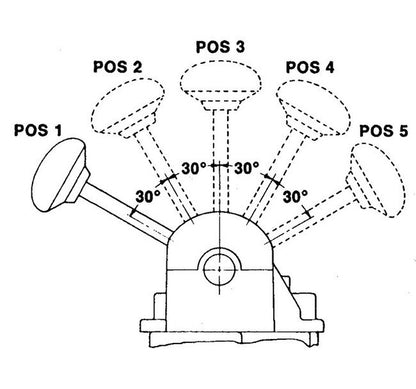

Specifications Handle Positions
5
Specifications Height
7 23/32 in.
Specifications Length
6 5/16 in.
Specifications Model
2-HA-3
Specifications Old Part
P -058379-00001 | P 058379-1 | P 58379-1 | P058379-1 | P58379-1
Specifications Type
Triple 3-Way Valve
Specifications Weight
4 lb | 1.81 kg
Specifications Width
3 3/4 in.
