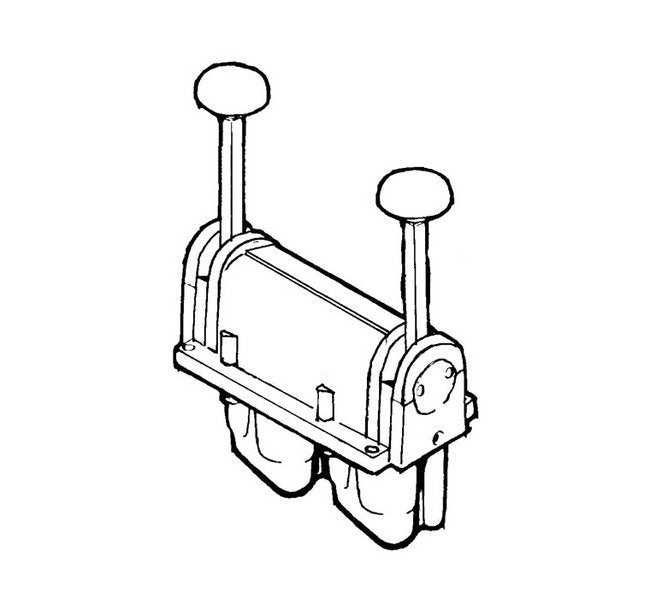

The Rexroth 2-HA-3 Triple 3-Way Valve is a high-performance pneumatic directional control valve designed for versatile panel mountings and outdoor installations. Featuring a streamlined compact design, this valve offers operational flexibility with its reversible and rotating operating cams. Built to withstand unfavorable working conditions, it boasts a one-piece solid steel shaft, bronze bearings, and Nylatron plastic detents for durability and reliable performance. The die-cast anodized aluminum body ensures lightweight construction, added strength, and corrosion resistance.
Product Specifications
Features Features
Several new features have been designed into the Panel-Mounted "A" PILOTAIR Valve for added strength, easier maintenance and longer service life.One-piece solid steel shaft for increased strength.Bronze bearings in cam housing for longer wear.Separate steel handle and hub for increased strength.Tooth-type Nylatron plastic detents for longer wear and more positive detenting.Internal centering spring assembly for longer wear and more positive handle centering.Die-cast anodized aluminum body and cam housing for lighter weight, added strength and corrosion resistance.More-positive handle latch. Available in one, two, and three positions for added flexibility and longer service lift.

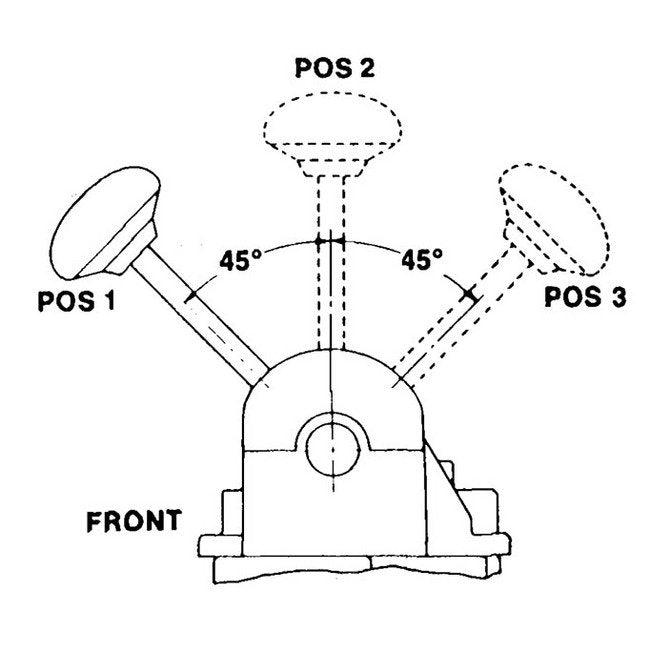

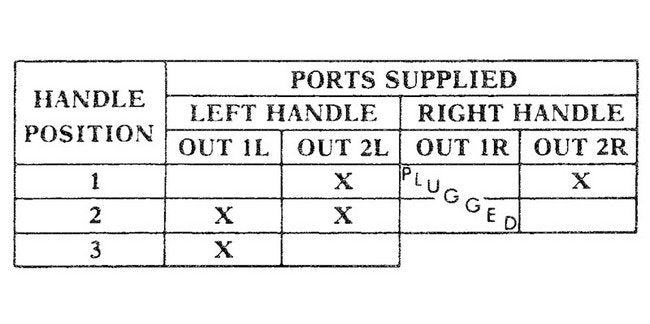

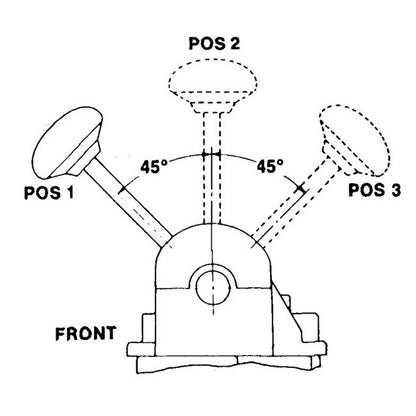

Specifications Handle Positions
2 (Right Handle) | 3 (Left Handle)

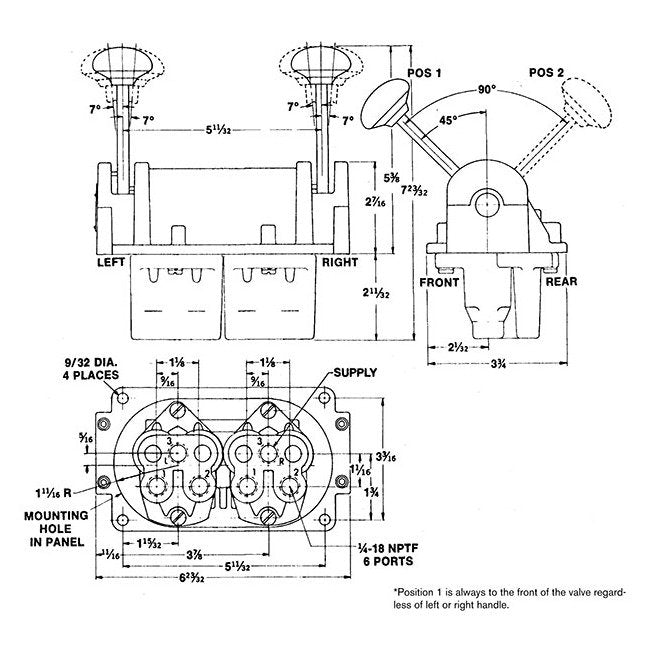

Specifications Height
7 23/32 in.
Specifications Length
6 23/32 in.
Specifications Model
2-HA-3
Specifications Old Part
P -058380-00001 | P 058380-1 | P 58380-1 | P058380-1 | P58380-1
Specifications Type
Triple 3-Way Valve
Specifications Weight
4 lb | 1.81 kg
Specifications Width
3 3/4 in.
