Rexroth 2-HA-4 Quadruple 3-Way Valve

Name: Rexroth 2-HA-4 Quadruple 3-Way Valve
Brand: Distributor To Industry, Inc.
SKU: DRI-482ea8
Price: 259.99 USD
Availability: OutOfStock

SKU:DRI-482ea8

Enhanced pneumatic valve with robust construction, flexible handle positions, and durable materials for extended service life.

$259.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

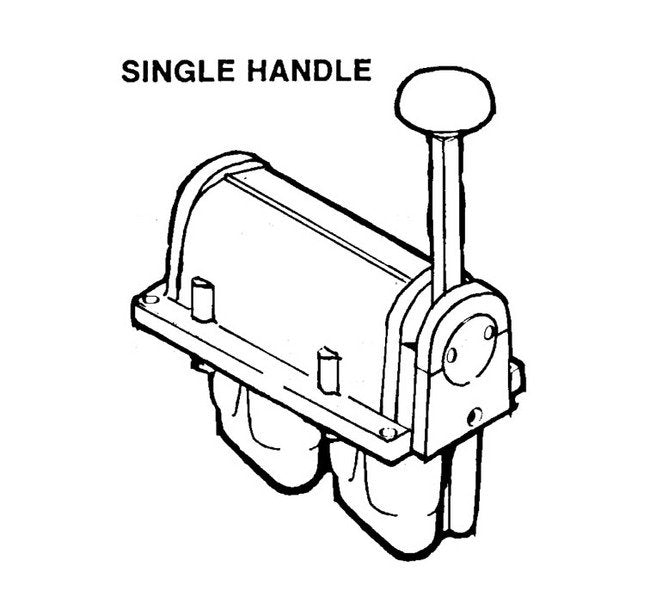

The Rexroth 2-HA-4 Quadruple 3-Way Valve is a robust pneumatic directional control valve designed for deluxe panel mountings, ideal for outdoor installations, and unfavorable working conditions. This valve features a one-piece solid steel shaft for increased strength, bronze bearings for durability, and tooth-type Nylatron plastic detents for longer wear. With a die-cast anodized aluminum body, this valve offers lighter weight, added strength, and corrosion resistance. It allows for versatile operation with multiple handle positions, providing flexibility and longer service life.

Product Specifications

Features Features

Several new features have been designed into the Panel-Mounted "A" PILOTAIR Valve for added strength, easier maintenance and longer service life.One-piece solid steel shaft for increased strength.Bronze bearings in cam housing for longer wear.Separate steel handle and hub for increased strength.Tooth-type Nylatron plastic detents for longer wear and more positive detenting.Internal centering spring assembly for longer wear and more positive handle centering.Die-cast anodized aluminum body and cam housing for lighter weight, added strength and corrosion resistance.More-positive handle latch. Available in one, two, and three positions for added flexibility and longer service lift.

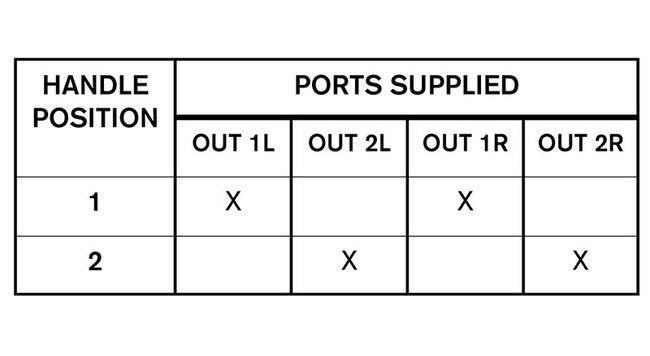

Specifications Handle Positions

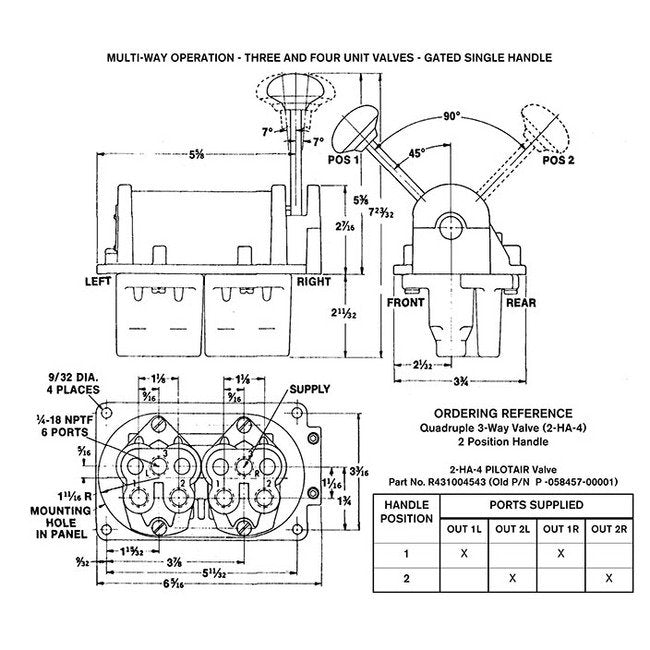

Specifications Height

7 23/32 in.

Specifications Length

6 5/16 in.

Specifications Model

2-HA-4

Specifications Old Part

P -058457-00001 | P 058457-1 | P 58457-1 | P058457-1 | P58457-1

Specifications Type

Quadruple 3-Way Valve

Specifications Weight

4 lb | 1.81 kg

Specifications Width

3 3/4 in.

Rexroth 2-HA-4 Quadruple 3-Way Valve
