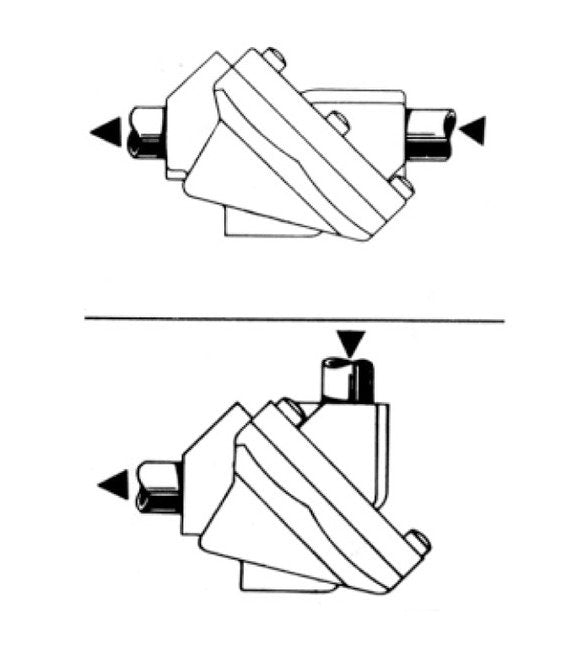

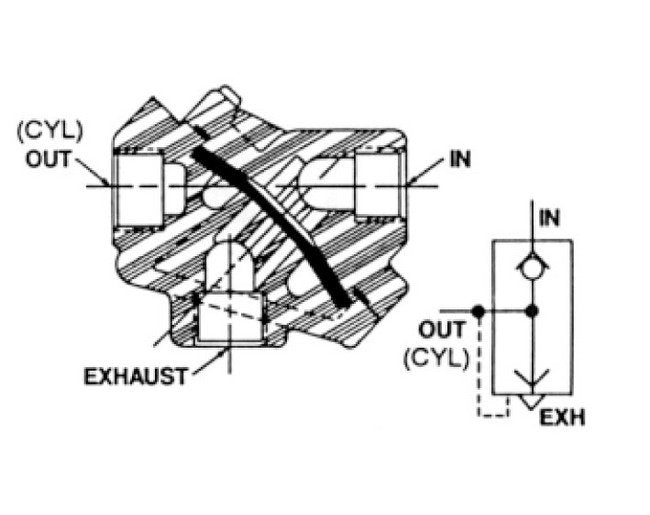

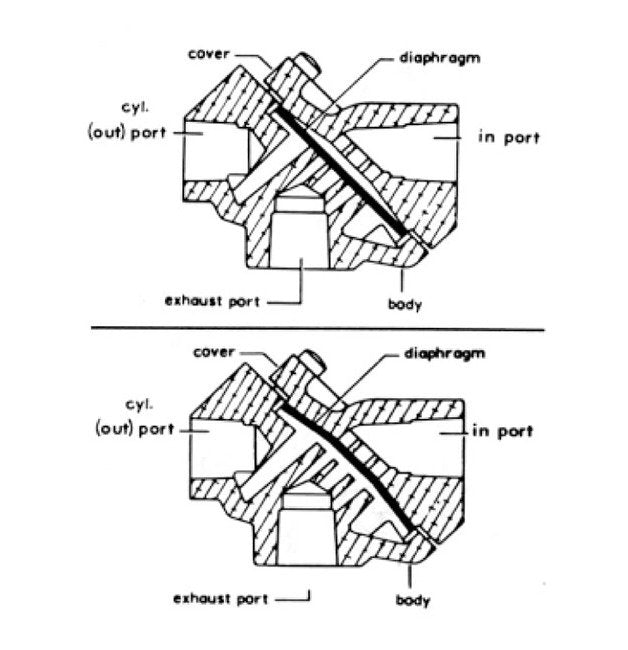

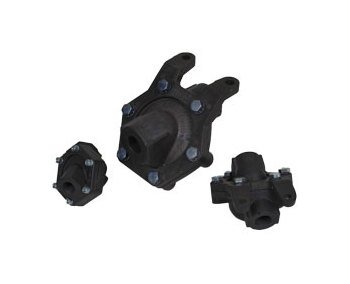

The Rexroth Aluminum Quick Exhaust Valves provide rapid air exhalation, enhancing the performance of air cylinders, clutches, and pneumatic devices. These valves swiftly release air pressure near the operated equipment, minimizing venting back through control valves. Featuring a sensitive diaphragm design for quick response, large capacity for optimal operation speed, and durable aluminum construction for longevity and corrosion resistance, these valves ensure efficient and quiet exhaust operations. With flexible mounting options for in-line or right-angle piping, these valves offer easy installation and enhanced operational flexibility.
Product Specifications

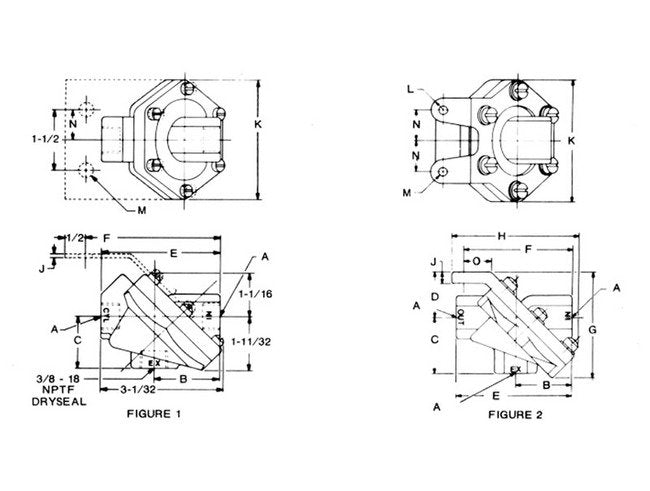

Dimensions A Nptf Dryseal
14 in.
Dimensions B
1 3/4 in.
Dimensions C
1 11/32 in.
Dimensions D
1 1/2 in.
Dimensions E
3 11/16 in.
Dimensions F
3 7/16 in.
Dimensions G
3 15/32 in.
Dimensions H
4 1/8 in.
Dimensions J
3/8 in.
Dimensions K
3 15/16 in.
Dimensions L
3/8 R.
Dimensions M 2 Holes
9/32 Ã
Dimensions N
1 in.
Dimensions O
7/8 in.
Specifications Capacity Cv In To Out
5.00
Specifications Capacity Cv Out To Exh
5.50
Specifications Media
Air or inert gas
Specifications Old Part
P -052935-00004 | P 052935-4 | P 52935-4 | P052935-4 | P52935-4
Specifications Ports
1/2 in.
Specifications Port Size
1/4" to 1" NPTF
Specifications Temperature Range
-40ºF to 160ºF (200ºF Intermittent)
Specifications Type
In-Line Piping
Specifications Weight
7 oz | 1 lb
Specifications Working Pressure
150 psi max. on 1/2" thru 1" sizes | 200 psi max. on 1/4" and 3/8"
