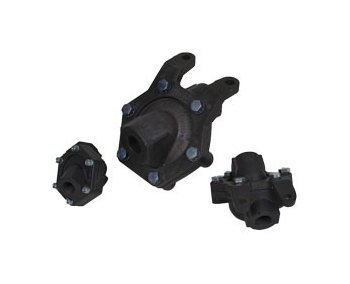

Rexroth Aluminum Quick Exhaust Valves - Efficient Pneumatic Device (1/4" Ports)
Rexroth Aluminum Quick Exhaust Valves - Efficient Pneumatic Device (1/4" Ports)
SKU:DRI-1b13e0
Enhance pneumatic system efficiency with Rexroth Aluminum Quick Exhaust Valves - reliable, efficient, and durable. Ideal for air cylinders and clutches.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Rexroth Aluminum Quick Exhaust Valves - Efficient Pneumatic Device (1/4" Ports)
$39.99
Quantity: 1
Claim Your Seller Account
Rexroth Aluminum Quick Exhaust Valves - Efficient Pneumatic Device (1/4" Ports)
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

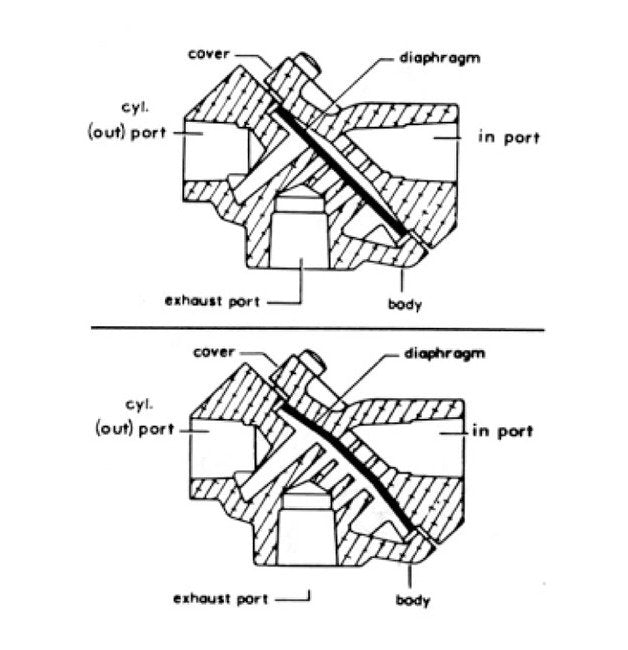

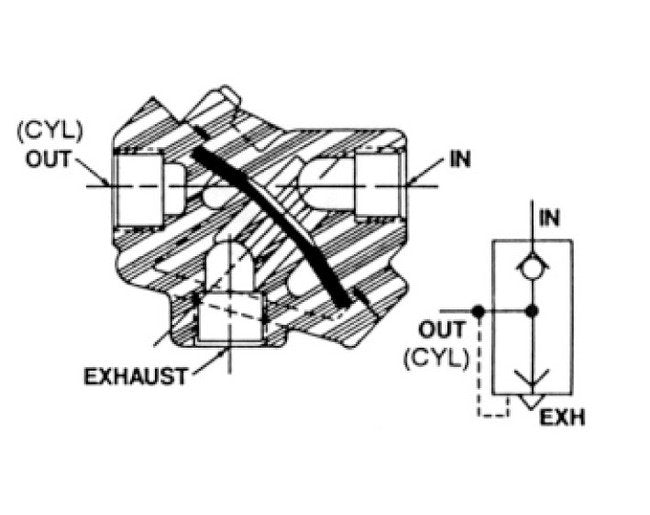

The Rexroth Aluminum Quick Exhaust Valves are designed to expedite the exhausting process of air cylinders, clutches, and other pneumatic devices, enhancing operational efficiency. Featuring a sensitive diaphragm for quick exhaust, large internal air passages for top speed operation, and a corrosion-resistant body for longevity, these valves ensure quiet operation and reduced weight for easy installation. With a working pressure of 150 psi on 1/2" thru 1" sizes and 200 psi on 1/4" and 3/8" sizes, along with a temperature range of -40°F to 160°F, these valves are versatile and reliable for various applications.
Product Specifications

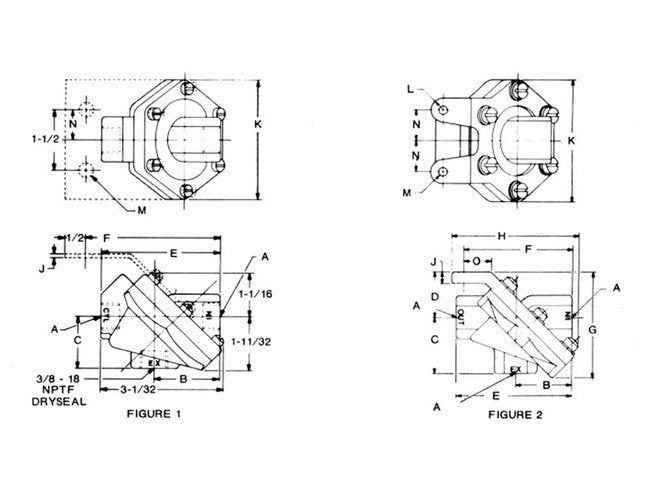

Dimensions A Nptf Dryseal
18 in.
Dimensions B
1 3/4 in.
Dimensions C
1 11/32 in.
Dimensions E
3 in.
Dimensions F
3 3/8 in.
Dimensions J
1/16 in.
Dimensions K
3 in.
Dimensions M 2 Holes
11/32 Ã
Dimensions N
3/4 in.
Specifications Capacity Cv In To Out
1.77
Specifications Capacity Cv Out To Exh
2.50
Specifications Media
Air or inert gas
Specifications Old Part
P -052935-00021 | P 052935-21 | P 52935-21 | P052935-21 | P52935-21
Specifications Ports
1/4 in.
Specifications Port Size
1/4" to 1" NPTF
Specifications Temperature Range
-40ºF to 160ºF (200ºF Intermittent)
Specifications Type

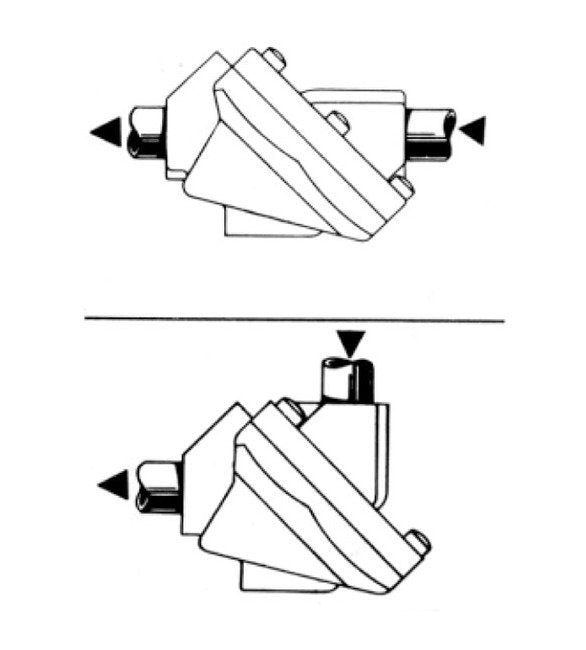

Right Angle Piping
Specifications Weight
10 oz
Specifications Working Pressure
150 psi max. on 1/2" thru 1" sizes | 200 psi max. on 1/4" and 3/8"
