Rexroth Aluminum Quick Exhaust Valves (Imperial) - Efficient Air Pressure Management Solution

Name: Rexroth Aluminum Quick Exhaust Valves (Imperial) - Efficient Air Pressure Management Solution
Brand: Distributor To Industry, Inc.
SKU: DRI-880fc2
Price: 49.99 USD
Availability: OutOfStock

SKU:DRI-880fc2

Enhance productivity with Rexroth Aluminum Quick Exhaust Valves for rapid air pressure control.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

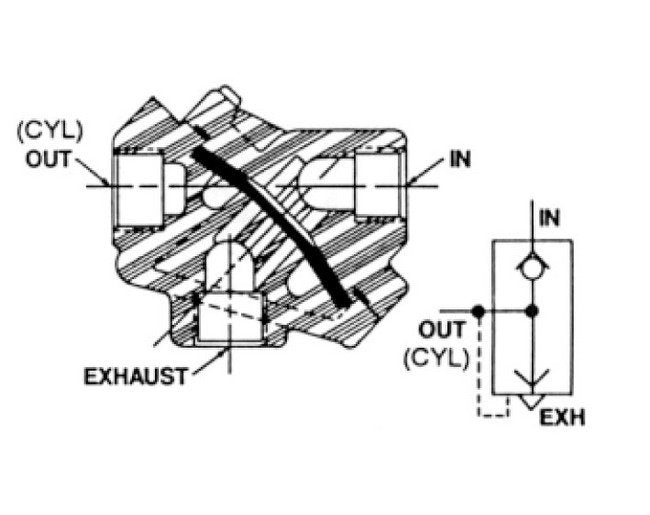

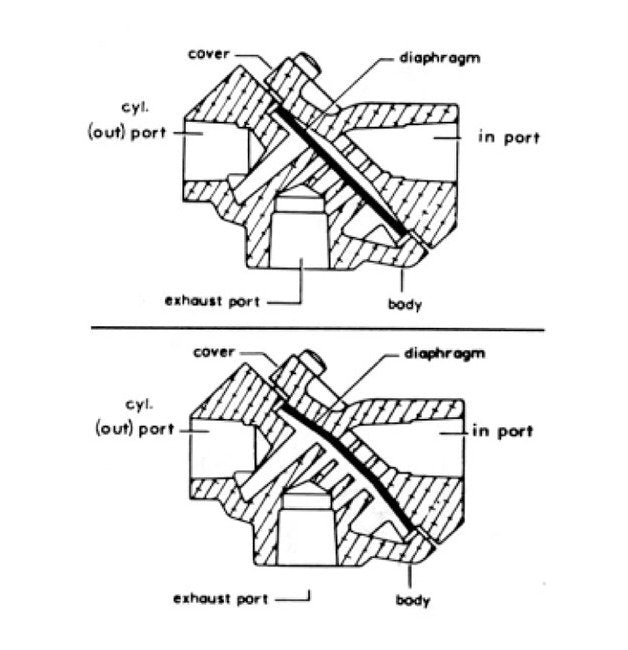

The Rexroth Aluminum Quick Exhaust Valves provide swift air pressure release for enhanced operational efficiency in pneumatic systems. Designed to reduce equipment cycling times and increase output, these valves feature a sensitive diaphragm for quick exhaust, a corrosion-resistant body for long-lasting durability, and versatile mounting options. With a focus on large capacity, quiet operation, and reduced weight, these valves are ideal for demanding industrial applications.

Product Specifications

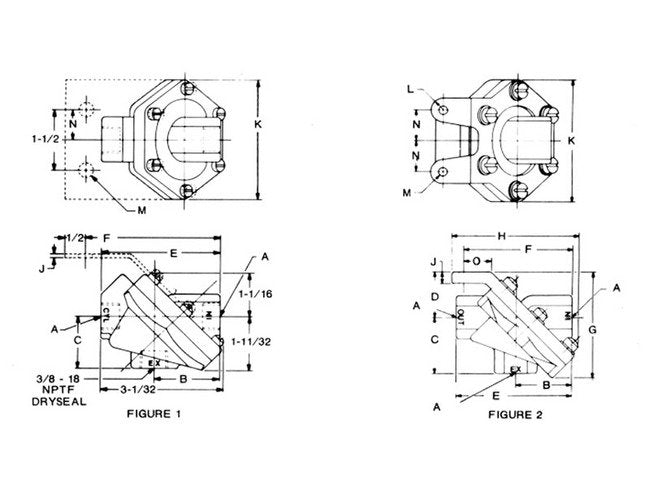

Dimensions A Nptf Dryseal

11 1/2 in.

Dimensions B

2 11/16 in.

Dimensions C

2 21/32 in.

Dimensions D

2 1/16 in.

Dimensions E

5 1/4 in.

Dimensions F

5 in.

Dimensions G

4 13/16 in.

Dimensions H

5 1/2 in.

Dimensions J

7/16 in.

Dimensions K

6 1/2 in.

Dimensions L

1/2 R.

Dimensions M 2 Holes

13/32 Ã

Dimensions N

1 1/2 in.

Dimensions O

1 1/8 in.

Specifications Capacity Cv In To Out

11.95

Specifications Capacity Cv Out To Exh

13.45

Specifications Media

Air or inert gas

Specifications Old Part

P -052935-00008 | P 052935-8 | P 52935-8 | P052935-8

Specifications Ports

1 in.

Specifications Port Size

1/4" to 1" NPTF

Specifications Temperature Range

-40ÂºF to 160ÂºF (200ÂºF Intermittent)

Specifications Type

In-Line Piping

Specifications Weight

5 oz | 3 lb

Specifications Working Pressure

150 psi max. on 1/2" thru 1" sizes | 200 psi max. on 1/4" and 3/8"
