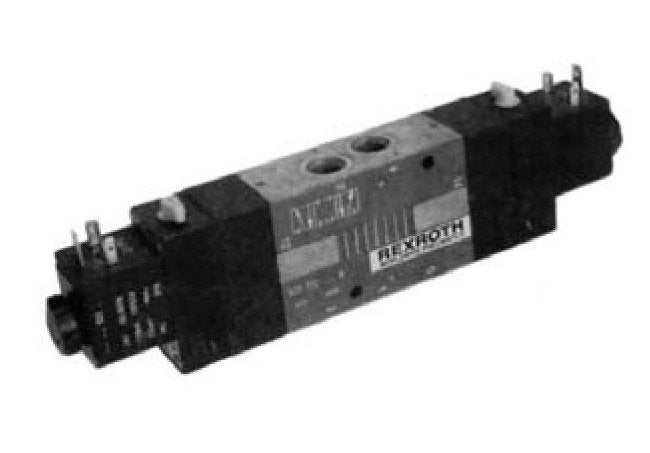

Rexroth CD07 4/3 Air Valves, 1/4" NPT Double Solenoid Operated

Rexroth CD07 4/3 Air Valves, 1/4" NPT Double Solenoid Operated

DRI-2471cf

High-performance Rexroth CD07 4/3 Air Valves for precise control in diverse applications.

$85.99
$85.99
Sale

Initiate Order

Rexroth CD07 4/3 Air Valves, 1/4" NPT Double Solenoid Operated

Rexroth CD07 4/3 Air Valves, 1/4" NPT Double Solenoid Operated

$85.99

Quantity: 1

Claim Your Seller Account

Rexroth CD07 4/3 Air Valves, 1/4" NPT Double Solenoid Operated

Rexroth CD07 4/3 Air Valves, 1/4" NPT Double Solenoid Operated

$85.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Rexroth CD07 4/3 Air Valves deliver superior performance with a 1/4" NPT port size suitable for diverse applications. Operating from vacuum to 150 PSI, these valves offer precise control with dual pressure acceptance. Designed for efficiency and durability, they feature Buna-N seals, temperature ranges from +5 to +120 ºF, and a compact spool type design for space optimization. With compliance to industry standards, these valves ensure reliable functionality and easy operation, making them ideal for marine, mobile, and oil field use.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Electrical Data Electrical Data
Standard Voltage (all coils are rated for continues duty) Power Consumption Inrush Holding 110 VAC 50 Hz/120 VAC 60 Hz 24 VAC 50/60 Hz 6.4 VA 3.7 VA 12, 24 VDC 2.7 W Voltage Tolerance: ±10%NOTE: Electrical connectors must be ordered separately.One per solenoid required, see Solenoid Connectors page.
Features Features
The 1/4" 4-way, 5-ported CD07 Valve is an extremely versatile, yet compact, design. This low-profile spool type design will not only enhance the appearance of your equipment, but will save valuable engineering space. A new simplified internal design allows for consistently reliable performance and ease of operation. The CD07 Valve is available with a wide range of solenoid, air pilot and mechanical operators. This new design allows each valve body to be readily STACKED through a convenient and simplified single pressure port bar. Unique optional solenoid connectors offer neon indicator lights for (AC) circuits and L.E.D. displays for (DC) circuits. Standard Plug-In DIN Connection "Low wattage" (2.1W) solenoid and connector, available with or without built-in indicator light. External Pilot: (not shown) Allows an independent air supply to be connected to the pilot port of the solenoid operator. Manual Locking Overrides: Allow supplementary manual control and permit operating the valve when the electric power is off. Solenoid Coil Removal: Un-screw coil retaining nut and slip off the coil. Seal Spacers: New lightweight acetal cartridge assembly.Manifold System: Common pressure port bar
Specifications Center
Exhaust
Specifications Coil Voltage
110V-50Hz/120V-60Hz
Specifications Flow
Cv
Specifications Manual Override
Locking
Specifications Media
Air (either lubricated or non-lubricated)
Specifications Old Part
PS 032020-1515 | PS 32010-1515 | PS-032020-01515 | PS032020-1515 | PS32010-1515
Specifications Port Size
1/4" NPT
Specifications Seals
Buna-N
Specifications Temperature Range Solenoid Valve
+5 to +120 ºF
Specifications Working Pressure
Vacuum service to 150 PSI
