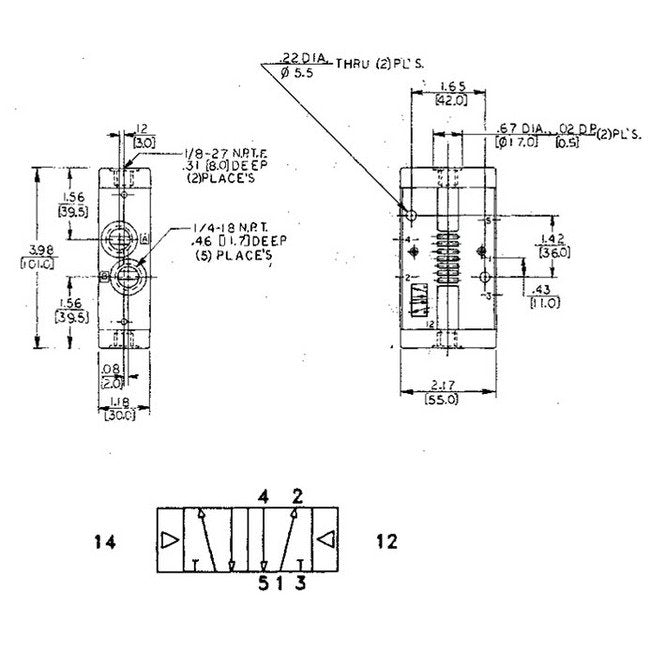

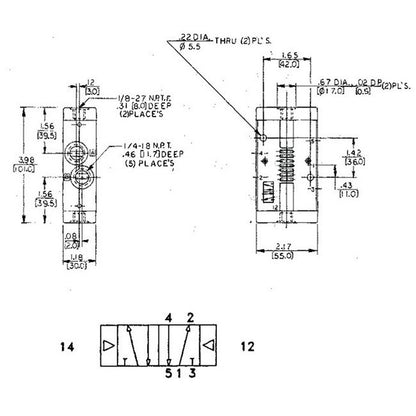

• Rexroth CD07 Air Pilot Operated Valve (4-Way/2 Position) - Image 1

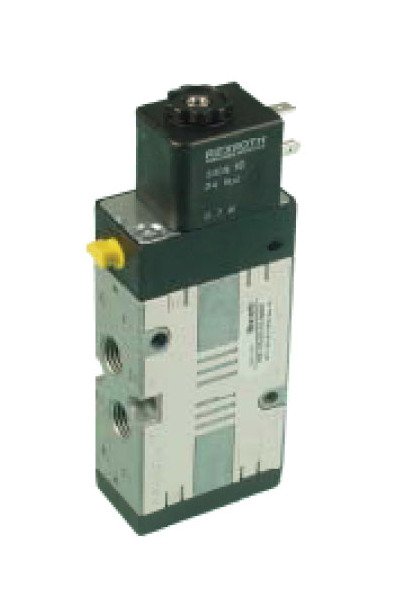

  • Rexroth CD07 Air Pilot Operated Valve (4-Way/2 Position) - Image 2
  • Rexroth CD07 Air Pilot Operated Valve (4-Way/2 Position) - Image 3
1 3
Distributor To Industry, Inc. →

Rexroth CD07 Air Pilot Operated Valve (4-Way/2 Position)

Rexroth CD07 Air Pilot Operated Valve (4-Way/2 Position)

DRI-bd78cc

Versatile Rexroth CD07 Valve for marine, mobile, and oil fields; compact design, efficient performance, and manual override.

$89.99
$89.99
Sale

Initiate Order

Rexroth CD07 Air Pilot Operated Valve (4-Way/2 Position)

Rexroth CD07 Air Pilot Operated Valve (4-Way/2 Position)

$89.99

Quantity: 1

Claim Your Seller Account

Rexroth CD07 Air Pilot Operated Valve (4-Way/2 Position)

Rexroth CD07 Air Pilot Operated Valve (4-Way/2 Position)

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Rexroth CD07 Air Pilot Operated Valve (4-Way/2 Position) is a high-performance valve designed for versatile applications in marine, mobile, and oil field settings. With a 1/4" NPT port size, it operates seamlessly at working pressures from vacuum to 150 PSI. The valve offers reliable performance in temperature ranges of -20 to +175 °F and is suitable for both lubricated and non-lubricated air media. Its compact and efficient design, along with locking manual override capabilities, make it a convenient and space-saving solution for various industrial needs.

Product Specifications

Electrical Data Electrical Data
Standard Voltage (all coils are rated for continues duty) Power Consumption Inrush Holding 110 VAC 50 Hz/120 VAC 60 Hz 24 VAC 50/60 Hz 6.4 VA 3.7 VA 12, 24 VDC 2.7 W Voltage Tolerance: ±10%NOTE: Electrical connectors must be ordered separately.One per solenoid required, see Solenoid Connectors page.
Features Features

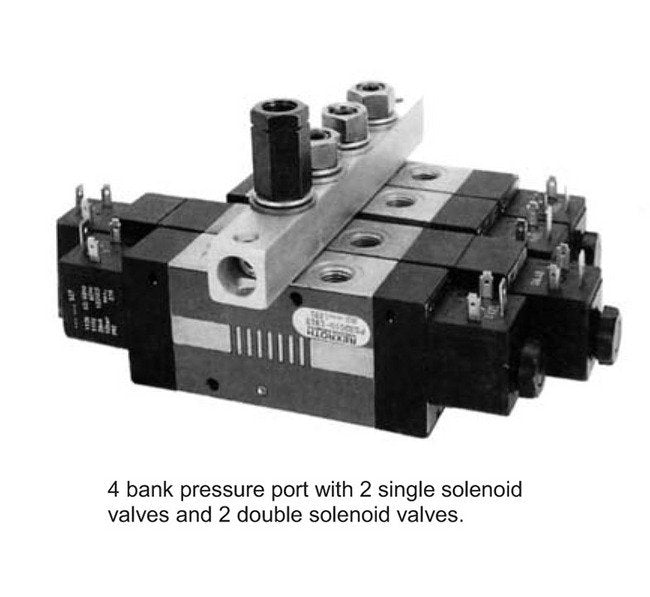

The 1/4" 4-way, 5-ported CD07 Valve is an extremely versatile, yet compact, design. This low-profile spool type design will not only enhance the appearance of your equipment, but will save valuable engineering space. A new simplified internal design allows for consistently reliable performance and ease of operation. The CD07 Valve is available with a wide range of solenoid, air pilot and mechanical operators. This new design allows each valve body to be readily STACKED through a convenient and simplified single pressure port bar. Unique optional solenoid connectors offer neon indicator lights for (AC) circuits and L.E.D. displays for (DC) circuits. Standard Plug-In DIN Connection "Low wattage" (2.1W) solenoid and connector, available with or without built-in indicator light. External Pilot: (not shown) Allows an independent air supply to be connected to the pilot port of the solenoid operator. Manual Locking Overrides: Allow supplementary manual control and permit operating the valve when the electric power is off. Solenoid Coil Removal: Un-screw coil retaining nut and slip off the coil. Seal Spacers: New lightweight acetal cartridge assembly.Manifold System: Common pressure port bar
Specifications Flow
Cv
Specifications Manual Override
Locking
Specifications Media
Air (either lubricated or non-lubricated)
Specifications Old Part
PS 034010-3333 | PS 34010-3333 | PS-034010-03333 | PS034010-333 | PS34010-3333
Specifications Port Size
1/4" NPT
Specifications Seals
Buna-N
Specifications Temperature Range Air Pilot
-20 to +175 ºF
Specifications Type
Double Air Pilot
Specifications Working Pressure
Vacuum service to 150 PSI
