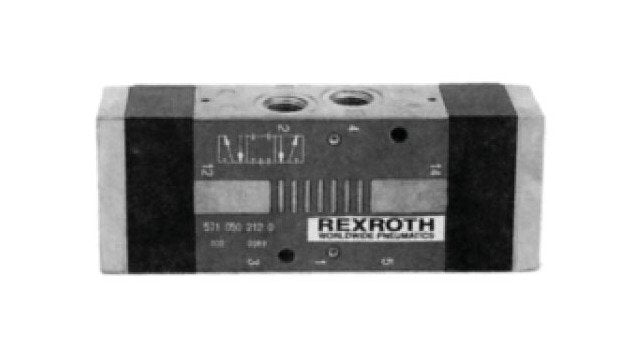

Rexroth CD07 Double Air Pilot Valve
Rexroth CD07 Double Air Pilot Valve
SKU:DRI-f27731
Versatile 4-way/3-position Rexroth CD07 Double Air Pilot Valve for Marine, Mobile, and Oil Field applications. Reliable performance in vacuum services up to 150 PSI.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Rexroth CD07 Double Air Pilot Valve
$299.99
Quantity: 1
Claim Your Seller Account
Rexroth CD07 Double Air Pilot Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rexroth CD07 Double Air Pilot Valve is a versatile 4-way/3-position valve designed for drilling rig applications in Marine, Mobile, and Oil Field industries. With port sizes of 1/4" NPT and working pressure up to 150 PSI, this valve ensures reliable performance in vacuum services. It features a rugged construction with Buna-N seals and a temperature range of -20ºF to +175ºF, suitable for various environmental conditions. Additionally, the valve offers dual solenoid and air pilot control for precise operation and can be stacked for space-efficient installation.
Product Specifications
Electrical Data Electrical Data
Standard Voltage (all coils are rated for continues duty) Power Consumption Inrush Holding 110 VAC 50 Hz/120 VAC 60 Hz 24 VAC 50/60 Hz 6.4 VA 3.7 VA 12, 24 VDC 2.7 W Voltage Tolerance: ±10%NOTE: Electrical connectors must be ordered separately.One per solenoid required, see Solenoid Connectors page.
Features Features
The 1/4â 4-way, 5-ported CD07 Valve is an extremely versatile, yet compact, design. This low-profile spool type design will not only enhance the appearance of your equipment, but will save valuable engineering space. A new simplified internal design allows for consistently reliable performance and ease of operation. The CD07 Valve is available with a wide range of solenoid, air pilot and mechanical operators. This new design allows each valve body to be readily STACKED through a convenient and simplified single pressure port bar. Unique optional solenoid connectors offer neon indicator lights for (AC) circuits and L.E.D. displays for (DC) circuits. Standard Plug-In DIN Connection "Low wattage" (2.1W) solenoid and connector, available with or without built-in indicator light. External Pilot: (not shown) Allows an independent air supply to be connected to the pilot port of the solenoid operator. Manual Locking Overrides: Allow supplementary manual control and permit operating the valve when the electric power is off. Solenoid Coil Removal: Un-screw coil retaining nut and slip off the coil. Seal Spacers: New lightweight acetal cartridge assembly.Manifold System: Common pressure port bar
Specifications Center
Exhaust Open
Specifications Flow
Cv
Specifications Manual Override
Locking
Specifications Media
Air (either lubricated or non-lubricated)
Specifications Old Part
PS 034020-3535 | PS 34020-3535 | PS-034020-03535 | PS034020-3535 | PS34020-3535
Specifications Port Size
1/4" NPT
Specifications Seals
Buna-N
Specifications Temperature Range Air Pilot
-20 to +175 ºF
Specifications Working Pressure
Vacuum service to 150 PSI
