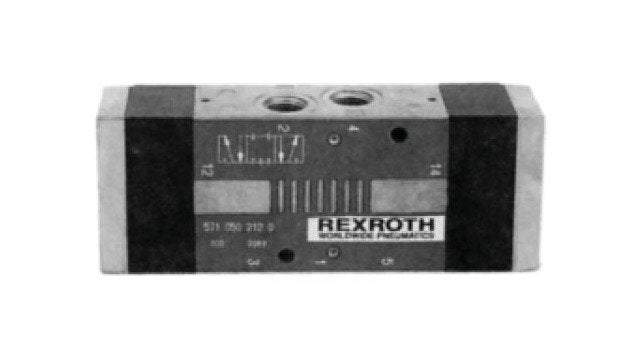

Rexroth CD07 Double Air Pilot Valve
Rexroth CD07 Double Air Pilot Valve
SKU:DRI-d64776
Rexroth CD07 Double Air Pilot Valve - Reliable, compact valve for rugged MMO applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Rexroth CD07 Double Air Pilot Valve
$289.99
Quantity: 1
Claim Your Seller Account
Rexroth CD07 Double Air Pilot Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rexroth CD07 Double Air Pilot Valve is a versatile 4-way/3-position valve designed for rugged applications like drilling rigs in MMO industries. With a compact yet robust design, this valve offers reliable performance under extreme conditions. It features a 1/4" NPT port size, working pressure up to 150 PSI, and a temperature range from -20ºF to +175ºF. The valve is suitable for vacuum services and is compatible with both lubricated and non-lubricated air. Additionally, it comes with manual locking override for enhanced control and is stackable for space optimization.
Product Specifications
Electrical Data Electrical Data
Standard Voltage (all coils are rated for continues duty) Power Consumption Inrush Holding 110 VAC 50 Hz/120 VAC 60 Hz 24 VAC 50/60 Hz 6.4 VA 3.7 VA 12, 24 VDC 2.7 W Voltage Tolerance: ±10%NOTE: Electrical connectors must be ordered separately.One per solenoid required, see Solenoid Connectors page.
Features Features
The 1/4â 4-way, 5-ported CD07 Valve is an extremely versatile, yet compact, design. This low-profile spool type design will not only enhance the appearance of your equipment, but will save valuable engineering space. A new simplified internal design allows for consistently reliable performance and ease of operation. The CD07 Valve is available with a wide range of solenoid, air pilot and mechanical operators. This new design allows each valve body to be readily STACKED through a convenient and simplified single pressure port bar. Unique optional solenoid connectors offer neon indicator lights for (AC) circuits and L.E.D. displays for (DC) circuits. Standard Plug-In DIN Connection "Low wattage" (2.1W) solenoid and connector, available with or without built-in indicator light. External Pilot: (not shown) Allows an independent air supply to be connected to the pilot port of the solenoid operator. Manual Locking Overrides: Allow supplementary manual control and permit operating the valve when the electric power is off. Solenoid Coil Removal: Un-screw coil retaining nut and slip off the coil. Seal Spacers: New lightweight acetal cartridge assembly.Manifold System: Common pressure port bar
Specifications Center
Closed
Specifications Flow
Cv
Specifications Manual Override
Locking
Specifications Media
Air (either lubricated or non-lubricated)
Specifications Old Part
PS 034010-3535 | PS 34010-3535 | PS-034010-03535 | PS034010-3535 | PS34010-3535
Specifications Port Size
1/4" NPT
Specifications Seals
Buna-N
Specifications Temperature Range Air Pilot
-20 to +175 ºF
Specifications Working Pressure
Vacuum service to 150 PSI
