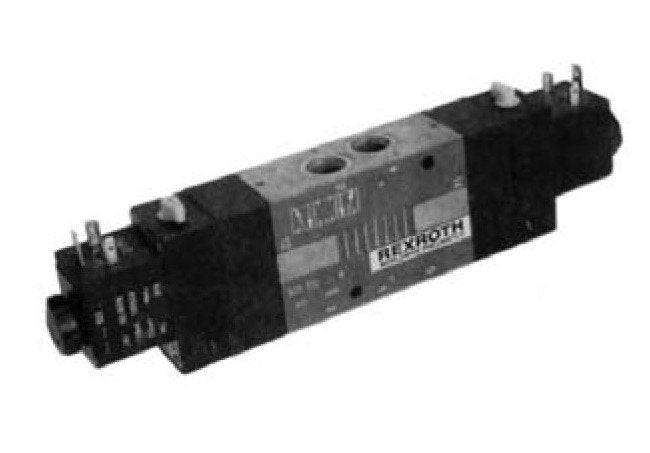

Rexroth CD07 Double Solenoid Valve, 5/3 - 1/4" NPT
Rexroth CD07 Double Solenoid Valve, 5/3 - 1/4" NPT
SKU:DRI-85ce6e
Compact and efficient Rexroth CD07 Double Solenoid Valve with a low-profile design for versatile industrial applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Rexroth CD07 Double Solenoid Valve, 5/3 - 1/4" NPT
$99.99
Quantity: 1
Claim Your Seller Account
Rexroth CD07 Double Solenoid Valve, 5/3 - 1/4" NPT
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rexroth CD07 Double Solenoid Valve is a reliable and versatile solution for industrial applications, featuring a low-profile design that saves valuable engineering space. With a simplified internal structure, this valve ensures consistent performance and ease of operation. It offers a wide range of solenoid, air pilot, and mechanical operators, and can be stacked conveniently for efficient use. The valve also includes unique optional solenoid connectors with indicator lights for AC and DC circuits, manual locking overrides for supplementary control, and easy solenoid coil removal. Enhance your equipment with the compact and efficient Rexroth CD07 Valve.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Electrical Data Electrical Data
Standard Voltage (all coils are rated for continues duty) Power Consumption Inrush Holding 110 VAC 50 Hz/120 VAC 60 Hz 24 VAC 50/60 Hz 6.4 VA 3.7 VA 12, 24 VDC 2.7 W Voltage Tolerance: ±10%NOTE: Electrical connectors must be ordered separately.One per solenoid required, see Solenoid Connectors page.
Features Features
The 1/4" 4-way, 5-ported CD07 Valve is an extremely versatile, yet compact, design. This low-profile spool type design will not only enhance the appearance of your equipment, but will save valuable engineering space. A new simplified internal design allows for consistently reliable performance and ease of operation. The CD07 Valve is available with a wide range of solenoid, air pilot and mechanical operators. This new design allows each valve body to be readily STACKED through a convenient and simplified single pressure port bar. Unique optional solenoid connectors offer neon indicator lights for (AC) circuits and L.E.D. displays for (DC) circuits. Standard Plug-In DIN Connection "Low wattage" (2.1W) solenoid and connector, available with or without built-in indicator light. External Pilot: (not shown) Allows an independent air supply to be connected to the pilot port of the solenoid operator. Manual Locking Overrides: Allow supplementary manual control and permit operating the valve when the electric power is off. Solenoid Coil Removal: Un-screw coil retaining nut and slip off the coil. Seal Spacers: New lightweight acetal cartridge assembly.Manifold System: Common pressure port bar
Specifications Center
Closed
Specifications Coil Voltage
24 VDC
Specifications Flow
Cv
Specifications Manual Override
Locking
Specifications Media
Air (either lubricated or non-lubricated)
Specifications Old Part
PS 032010-7171 | PS-032010-07171 | PS032010-7171 | PS32010-7171
Specifications Port Size
1/4" NPT
Specifications Seals
Buna-N
Specifications Temperature Range Solenoid Valve
+5 to +120 ºF
Specifications Working Pressure
Vacuum service to 150 PSI
