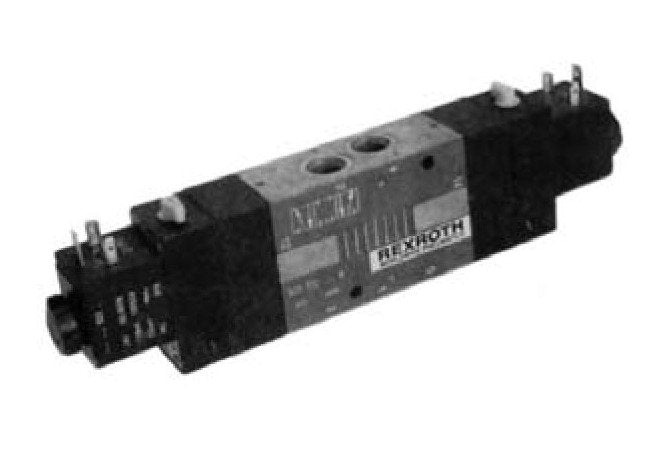

Rexroth CD07 Double Solenoid Valve 5/3, 1/4" NPT
Rexroth CD07 Double Solenoid Valve 5/3, 1/4" NPT
SKU:DRI-39f5f3
Enhance equipment performance with the compact and reliable Rexroth CD07 Double Solenoid Valve 5/3, featuring a 1/4" NPT port size.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Rexroth CD07 Double Solenoid Valve 5/3, 1/4" NPT
$89.99
Quantity: 1
Claim Your Seller Account
Rexroth CD07 Double Solenoid Valve 5/3, 1/4" NPT
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rexroth CD07 Double Solenoid Valve 5/3, equipped with a 1/4" NPT port size, offers exceptional versatility and reliability for industrial applications. This compact valve features a low-profile spool design that optimizes equipment space while ensuring consistent performance. With options for solenoid, air pilot, and mechanical operators, this valve simplifies installation and operation. Unique features include neon indicator lights for AC circuits, LED displays for DC circuits, and manual locking overrides for enhanced control. The valve's stackable design and lightweight construction make it a standout choice for efficiency and functionality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Electrical Data Electrical Data
Standard Voltage (all coils are rated for continues duty) Power Consumption Inrush Holding 110 VAC 50 Hz/120 VAC 60 Hz 24 VAC 50/60 Hz 6.4 VA 3.7 VA 12, 24 VDC 2.7 W Voltage Tolerance: ±10%NOTE: Electrical connectors must be ordered separately.One per solenoid required, see Solenoid Connectors page.
Features Features
The 1/4" 4-way, 5-ported CD07 Valve is an extremely versatile, yet compact, design. This low-profile spool type design will not only enhance the appearance of your equipment, but will save valuable engineering space. A new simplified internal design allows for consistently reliable performance and ease of operation. The CD07 Valve is available with a wide range of solenoid, air pilot and mechanical operators. This new design allows each valve body to be readily STACKED through a convenient and simplified single pressure port bar. Unique optional solenoid connectors offer neon indicator lights for (AC) circuits and L.E.D. displays for (DC) circuits. Standard Plug-In DIN Connection "Low wattage" (2.1W) solenoid and connector, available with or without built-in indicator light. External Pilot: (not shown) Allows an independent air supply to be connected to the pilot port of the solenoid operator. Manual Locking Overrides: Allow supplementary manual control and permit operating the valve when the electric power is off. Solenoid Coil Removal: Un-screw coil retaining nut and slip off the coil. Seal Spacers: New lightweight acetal cartridge assembly.Manifold System: Common pressure port bar
Specifications Center
Closed
Specifications Coil Voltage
24 VAC-50/60Hz
Specifications Flow
Cv
Specifications Manual Override
Locking
Specifications Media
Air (either lubricated or non-lubricated)
Specifications Old Part
PS 032010-7979 | PS 32010-7979 | PS-032010-07979 | PS032010-7979 | PS32010-7979
Specifications Port Size
1/4" NPT
Specifications Seals
Buna-N
Specifications Temperature Range Solenoid Valve
+5 to +120 ºF
Specifications Working Pressure
Vacuum service to 150 PSI
