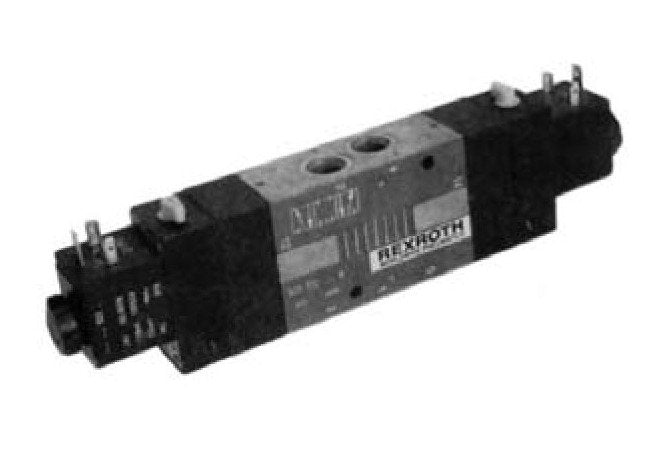

Rexroth CD07 Double Solenoid Valve, 5/3 - Marine, Mobile & Oil Field

Rexroth CD07 Double Solenoid Valve, 5/3 - Marine, Mobile & Oil Field

DRI-ccd2e0

Reliable 4-way/3-position Rexroth CD07 Solenoid Valve for industrial applications. Compact design, versatile performance. Ideal for Marine, Mobile & Oil Field use.

$129.99
$129.99
Sale

Initiate Order

Rexroth CD07 Double Solenoid Valve, 5/3 - Marine, Mobile & Oil Field

Rexroth CD07 Double Solenoid Valve, 5/3 - Marine, Mobile & Oil Field

$129.99

Quantity: 1

Claim Your Seller Account

Rexroth CD07 Double Solenoid Valve, 5/3 - Marine, Mobile & Oil Field

Rexroth CD07 Double Solenoid Valve, 5/3 - Marine, Mobile & Oil Field

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Rexroth CD07 Double Solenoid Valve provides reliable 4-way/3-position operation for industrial applications. With 1/4" NPT port size and vacuum to 150 PSI working pressure, this valve offers superior performance. Featuring Buna-N seals and a temperature range from +5°F to +120°F, it ensures durability in various environments. The valve's compact design, stackable configuration, and optional solenoid connectors make it versatile and efficient for marine, mobile, and oil field operations.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Electrical Data Electrical Data
Standard Voltage (all coils are rated for continues duty) Power Consumption Inrush Holding 110 VAC 50 Hz/120 VAC 60 Hz 24 VAC 50/60 Hz 6.4 VA 3.7 VA 12, 24 VDC 2.7 W Voltage Tolerance: ±10%NOTE: Electrical connectors must be ordered separately.One per solenoid required, see Solenoid Connectors page.
Features Features
The 1/4" 4-way, 5-ported CD07 Valve is an extremely versatile, yet compact, design. This low-profile spool type design will not only enhance the appearance of your equipment, but will save valuable engineering space. A new simplified internal design allows for consistently reliable performance and ease of operation. The CD07 Valve is available with a wide range of solenoid, air pilot and mechanical operators. This new design allows each valve body to be readily STACKED through a convenient and simplified single pressure port bar. Unique optional solenoid connectors offer neon indicator lights for (AC) circuits and L.E.D. displays for (DC) circuits. Standard Plug-In DIN Connection "Low wattage" (2.1W) solenoid and connector, available with or without built-in indicator light. External Pilot: (not shown) Allows an independent air supply to be connected to the pilot port of the solenoid operator. Manual Locking Overrides: Allow supplementary manual control and permit operating the valve when the electric power is off. Solenoid Coil Removal: Un-screw coil retaining nut and slip off the coil. Seal Spacers: New lightweight acetal cartridge assembly.Manifold System: Common pressure port bar
Specifications Center
Exhaust
Specifications Coil Voltage
24 VDC
Specifications Flow
Cv
Specifications Manual Override
Locking
Specifications Media
Air (either lubricated or non-lubricated)
Specifications Old Part
PS 032020-7171 | PS 32010-7171 | PS-032020-07171 | PS032020-7171 | PS32010-7171
Specifications Port Size
1/4" NPT
Specifications Seals
Buna-N
Specifications Temperature Range Solenoid Valve
+5 to +120 ºF
Specifications Working Pressure
Vacuum service to 150 PSI
