Rexroth Dryseal NPTF Check Valve - High Capacity Air Valve

Name: Rexroth Dryseal NPTF Check Valve - High Capacity Air Valve
Brand: Distributor To Industry, Inc.
SKU: DRI-ab242d
Price: 69.99 USD
Availability: OutOfStock

SKU:DRI-ab242d

Rexroth High Capacity Check Valve for precise one-way air flow control in demanding environments.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

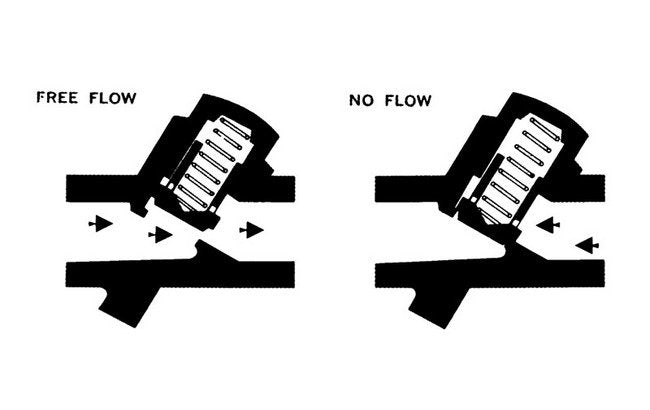

The Rexroth Dryseal NPTF Check Valve is designed for high capacity air flow applications with a maximum working pressure of 250 psi and an operating temperature range from -40°F to +160°F. Featuring anodized die-cast aluminum construction, stainless steel valve, plated spring, and Buna N Seal, this valve ensures trouble-free service. Suitable for marine, mobile, and oil field environments, it allows air flow in one direction only with minimal pressure requirements for opening, making it versatile for various pipeline installations.

Product Specifications

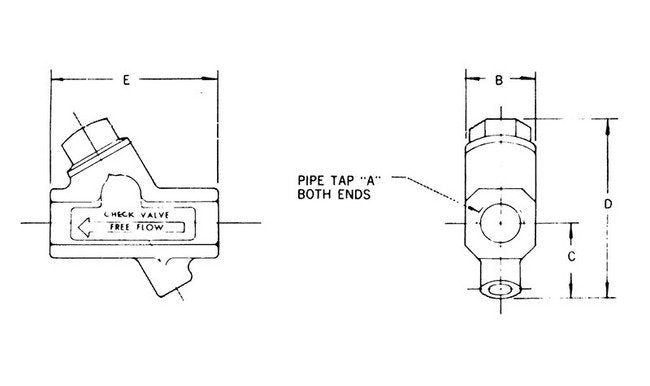

Specifications A Pipe Taps

1"-11 1/2" Dryseal NPTF

Specifications Capacity Cv

13.80

Specifications Dimension B

2 Inch

Specifications Dimension C

1 3/4 Inch

Specifications Dimension D

4 1/4 Inch

Specifications Dimension E

4 Inch

Specifications Intermittent Service

+200 ÂºF

Specifications Maximum Working Pressure

250 psi

Specifications Media

Air

Specifications Note

All pipe taps are DRYSEAL NPTF. Choice of 1/8", 1/4", 3/8", 1/2", 3/4" and 1".

Specifications Old Part

P 055028 | P -055028-00000 | P 55028 | P055028 | P55028

Specifications Operating Temperature

-40 to +160 ÂºF

Specifications Ports

1 Inch

Specifications Type

High Capacity

Specifications Weight

24 oz
