High capacity Rexroth Dryseal NPTF Check Valves for precise air flow control in marine, mobile, and oil field applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Rexroth Dryseal NPTF Check Valves - High Capacity Air Flow Control
$29.99
Quantity: 1
Claim Your Seller Account
Rexroth Dryseal NPTF Check Valves - High Capacity Air Flow Control
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

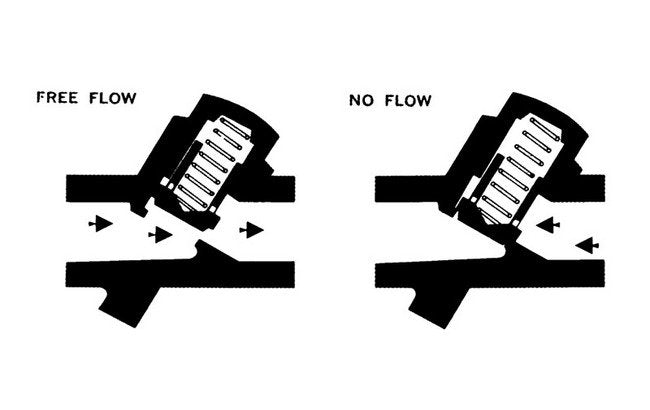

The Rexroth Dryseal NPTF Check Valves offer exceptional performance in managing air flow with a high capacity design. With a maximum working pressure of 250 psi, operating temperatures from -40°F to +200°F in intermittent service, and anodized die cast aluminum body, these valves ensure reliable and trouble-free operation. Featuring stainless steel valves, plated springs, and Buna N Seal, they are suitable for Marine, Mobile & Oil Field applications. Easily mountable in any position, these valves require less than 1/2 psi pressure to open, providing efficient air flow control.
Product Specifications
Specifications A Pipe Taps
1/4"-18 Dryseal NPTF
Specifications Capacity Cv
1.34

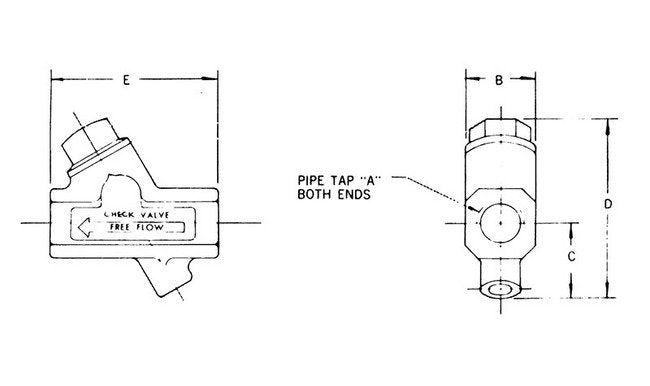

Specifications Dimension B
7/8 Inch
Specifications Dimension C
15/16 Inch
Specifications Dimension D
2 3/16 Inch
Specifications Dimension E
2 Inch
Specifications Intermittent Service
+200 ºF
Specifications Maximum Working Pressure
250 psi
Specifications Media
Air
Specifications Note
All pipe taps are DRYSEAL NPTF. Choice of 1/8", 1/4", 3/8", 1/2", 3/4" and 1".
Specifications Old Part
P 055024 | P -055024-00000 | P 55024 | P055024 | P55024
Specifications Operating Temperature
-40 to +160 ºF
Specifications Ports
1/4 Inch
Specifications Type
High Capacity
Specifications Weight
2 1/2 oz
