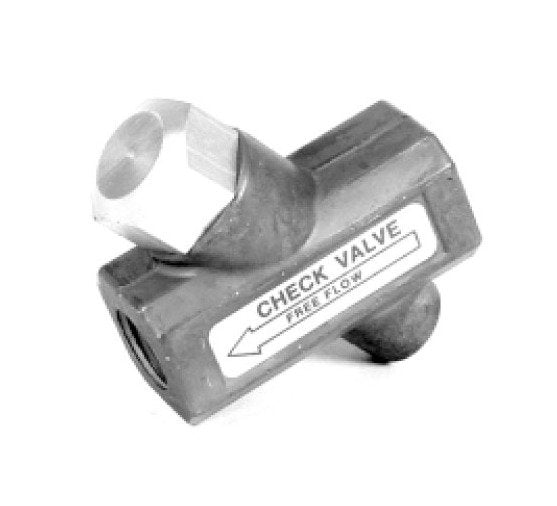

Rexroth Dryseal NPTF Check Valves - High Capacity Air Valve

Name: Rexroth Dryseal NPTF Check Valves - High Capacity Air Valve
Brand: Distributor To Industry, Inc.
SKU: DRI-e83fae
Price: 39.99 USD
Availability: OutOfStock

SKU:DRI-e83fae

Reliable Rexroth Dryseal NPTF Check Valves for high-capacity air flow applications, ensuring one-way air flow with ease of installation and durable construction.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

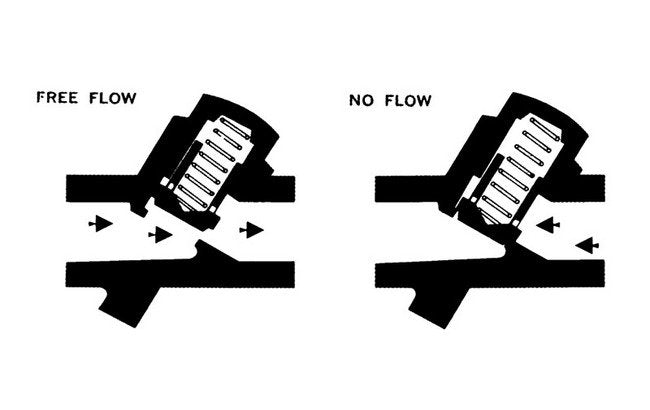

The Rexroth Dryseal NPTF Check Valves are designed for high-capacity air flow applications, with a maximum working pressure of 250 psi and an operating temperature range from -40°F to +160°F (+200°F intermittent). These check valves ensure one-way air flow, requiring less than 1/2 psi pressure to open and featuring a spring-loaded design for reliable closing. Constructed with anodized die-cast aluminum body and cap, stainless steel valve, plated spring, and Buna N Seal, these valves guarantee trouble-free service and can be mounted in any position, making them versatile for various installation needs.

Product Specifications

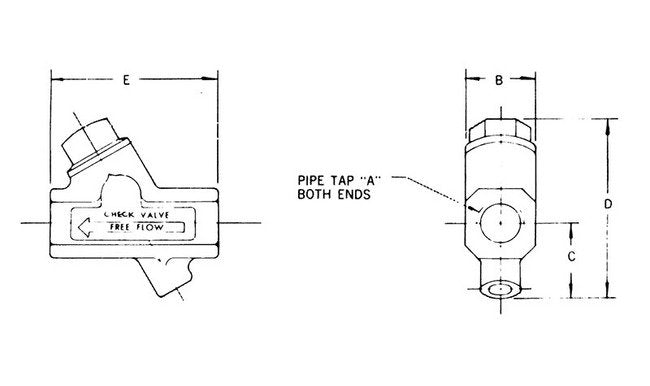

Specifications A Pipe Taps

1/2"-14 Dryseal NPTF

Specifications Capacity Cv

3.50

Specifications Dimension B

1 1/4 Inch

Specifications Dimension C

1 3/16 Inch

Specifications Dimension D

2 13/16 Inch

Specifications Dimension E

2 3/4 Inch

Specifications Intermittent Service

+200 ÂºF

Specifications Maximum Working Pressure

250 psi

Specifications Media

Air

Specifications Note

All pipe taps are DRYSEAL NPTF. Choice of 1/8", 1/4", 3/8", 1/2", 3/4" and 1".

Specifications Old Part

P 055026 | P -055026-00000 | P 55026 | P055026 | P55026

Specifications Operating Temperature

-40 to +160 ÂºF

Specifications Ports

1/2 Inch

Specifications Type

High Capacity

Specifications Weight

6 1/2 oz
