Rexroth Dryseal NPTF Check Valves - High Capacity Air Valves

Name: Rexroth Dryseal NPTF Check Valves - High Capacity Air Valves
Brand: Distributor To Industry, Inc.
SKU: DRI-893d77
Price: 79.99 USD
Availability: OutOfStock

SKU:DRI-893d77

Rexroth Dryseal NPTF Check Valves - High Capacity, 250 psi, -40°F to +160°F, Marine, Mobile & Oil Field

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

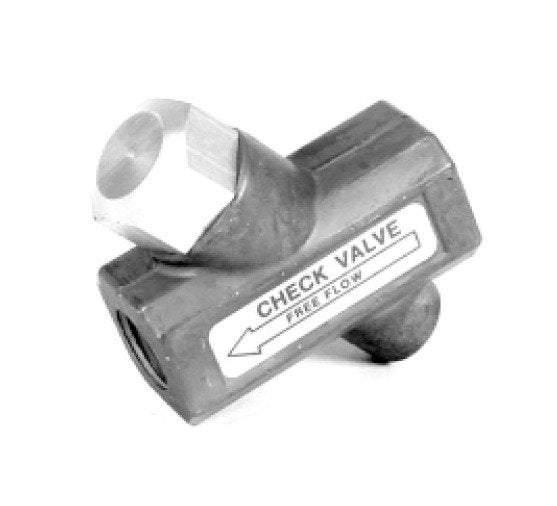

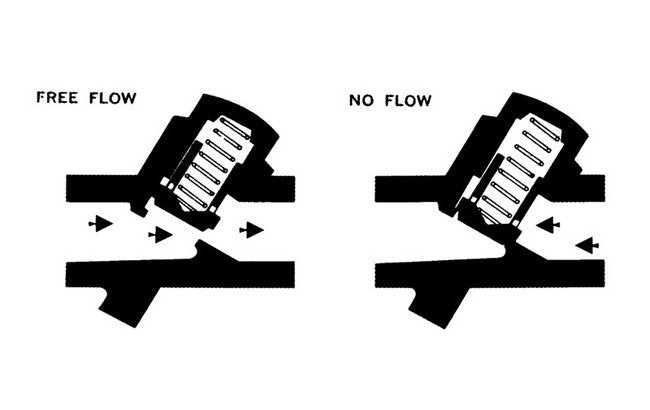

The Rexroth Dryseal NPTF Check Valves are engineered for high capacity air flow applications in drilling rigs for the Marine, Mobile, and Oil Field sectors. With a maximum working pressure of 250 psi and an operating temperature range from -40°F to +160°F (intermittent service up to +200°F), these valves ensure reliable performance in demanding environments. Their anodized die-cast aluminum body and cap, stainless steel valve, plated spring, and Buna N Seal guarantee trouble-free operation. Additionally, the valve's low opening pressure of less than 1/2 psi, combined with its spring-loaded design, enables efficient unidirectional airflow. Suitable for various port sizes from 1/8" to 1", these valves offer versatility and durability for critical air flow control.

Product Specifications

Specifications A Pipe Taps

3/8"-14 Dryseal NPTF

Specifications Capacity Cv

3.03

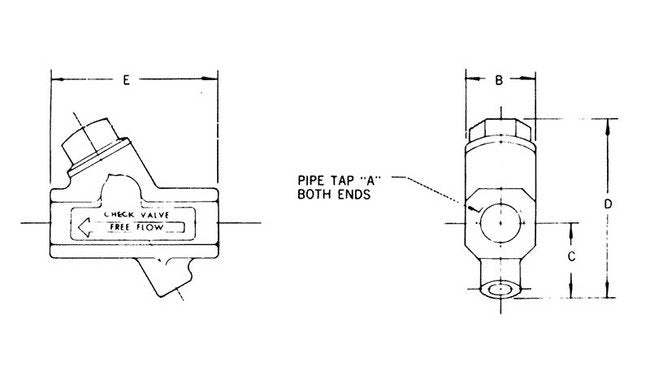

Specifications Dimension B

1 Inch

Specifications Dimension C

1 1/16 Inch

Specifications Dimension D

2 9/16 Inch

Specifications Dimension E

2 3/8 Inch

Specifications Intermittent Service

+200 ÂºF

Specifications Maximum Working Pressure

250 psi

Specifications Media

Air

Specifications Note

All pipe taps are DRYSEAL NPTF. Choice of 1/8", 1/4", 3/8", 1/2", 3/4" and 1".

Specifications Old Part

P 055025 | P -055025-00000 | P 55025 | P055025 | P55025

Specifications Operating Temperature

-40 to +160 ÂºF

Specifications Ports

3/8 Inch

Specifications Type

High Capacity

Specifications Weight

3 3/4 oz
