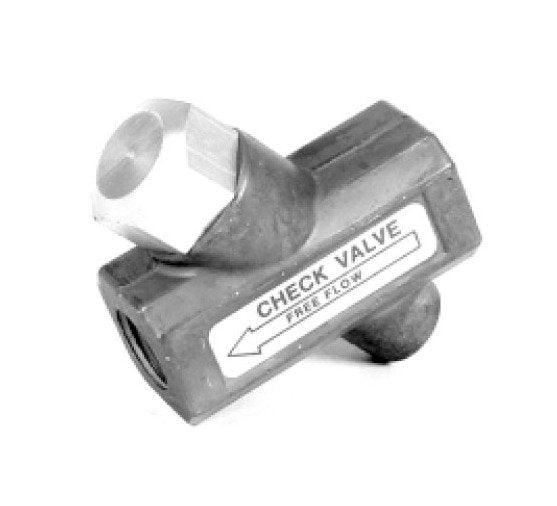

Rexroth High Capacity NPTF Check Valve

Name: Rexroth High Capacity NPTF Check Valve
Brand: Distributor To Industry, Inc.
SKU: DRI-f0c1a1
Price: 29.99 USD
Availability: OutOfStock

SKU:DRI-f0c1a1

Reliable Rexroth Check Valve for unidirectional airflow in pipelines. Durable construction, optimized for marine, mobile, and oil field use.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Rexroth High Capacity NPTF Check Valve is ideal for pipelines requiring unidirectional airflow. With a maximum working pressure of 250 psi, operating temperatures from -40°F to +160°F (with intermittent service up to +200°F), and anodized die-cast aluminum body and cap, this valve ensures reliable performance in diverse environments. The stainless steel valve, plated spring, and Buna N Seal enhance durability and operational efficiency, making it suitable for marine, mobile, and oil field applications.

Product Specifications

Specifications A Pipe Taps

1/8"-27 Dryseal NPTF

Specifications Capacity Cv

1.19

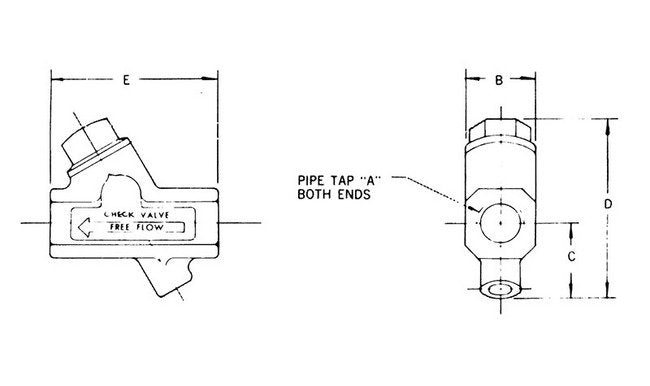

Specifications Dimension B

7/8 Inch

Specifications Dimension C

15/16 Inch

Specifications Dimension D

2 3/16 Inch

Specifications Dimension E

2 Inch

Specifications Intermittent Service

+200 ÂºF

Specifications Maximum Working Pressure

250 psi

Specifications Media

Air

Specifications Note

All pipe taps are DRYSEAL NPTF. Choice of 1/8", 1/4", 3/8", 1/2", 3/4" and 1".

Specifications Old Part

P 055023 | P -055023-00000 | P 55023 | P055023 | P55023

Specifications Operating Temperature

-40 to +160 ÂºF

Specifications Ports

1/8 Inch

Specifications Type

High Capacity

Specifications Weight

2 3/4 oz

Rexroth High Capacity NPTF Check Valve
