Rexroth High Capacity NPTF Check Valves

Name: Rexroth High Capacity NPTF Check Valves
Brand: Distributor To Industry, Inc.
SKU: DRI-d9f8ed
Price: 89.99 USD
Availability: OutOfStock

SKU:DRI-d9f8ed

Reliable Rexroth High Capacity NPTF Check Valves for industrial air systems. Ideal for drilling rig applications.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

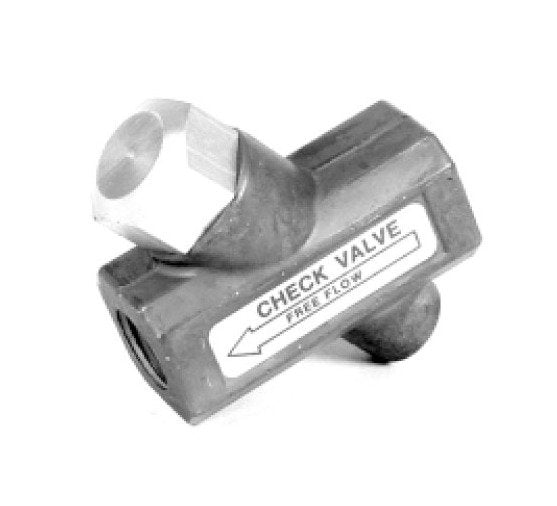

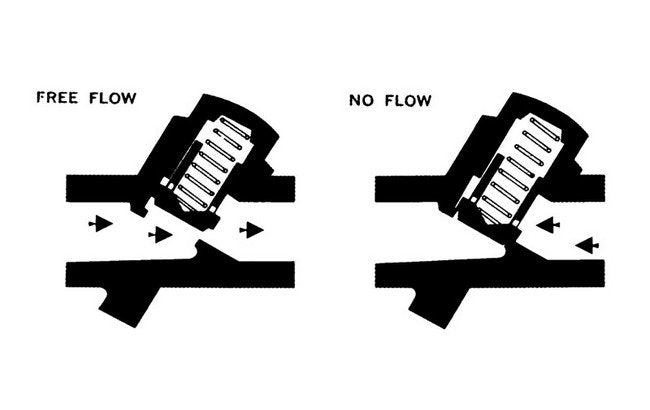

The Rexroth High Capacity NPTF Check Valves are designed for demanding industrial applications, featuring a working pressure of 250 psi and an operating temperature range of -40Â°F to +160Â°F. With a robust construction of anodized die-cast aluminum body and cap, stainless steel valve, and plated spring, these valves ensure reliable one-way flow of air with minimal pressure requirements. Ideal for drilling rig air systems, these valves offer easy installation in any orientation for hassle-free maintenance and long-term service.

Product Specifications

Specifications A Pipe Taps

3/4"-14 Dryseal NPTF

Specifications Capacity Cv

10.00

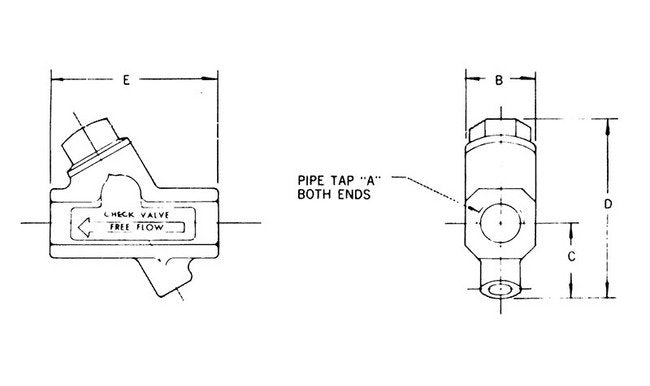

Specifications Dimension B

2 Inch

Specifications Dimension C

1 3/4 Inch

Specifications Dimension D

4 1/4 Inch

Specifications Dimension E

4 Inch

Specifications Intermittent Service

+200 ÂºF

Specifications Maximum Working Pressure

250 psi

Specifications Media

Air

Specifications Note

All pipe taps are DRYSEAL NPTF. Choice of 1/8", 1/4", 3/8", 1/2", 3/4" and 1".

Specifications Old Part

P 055027 | P -055027-00000 | P 55027 | P055027 | P55027

Specifications Operating Temperature

-40 to +160 ÂºF

Specifications Ports

3/4 Inch

Specifications Type

High Capacity

Specifications Weight

26 oz

Rexroth High Capacity NPTF Check Valves
