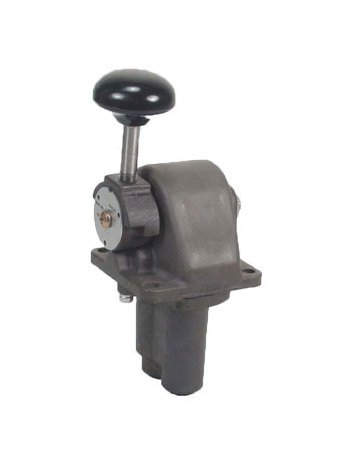

Rexroth Panel-Mounted PILOTAIR 2-HA-3 & 2-HA-4 Valves

Name: Rexroth Panel-Mounted PILOTAIR 2-HA-3 & 2-HA-4 Valves
Brand: Distributor To Industry, Inc.
SKU: DRI-6a567d
Price: 199.99 USD
Availability: OutOfStock

SKU:DRI-6a567d

Compact and robust pneumatic directional control valves for versatile applications, built for strength and durability.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Rexroth Panel-Mounted PILOTAIR 2-HA-3 & 2-HA-4 Valves are precision-engineered pneumatic directional control valves featuring a streamlined design for deluxe panel installations. Designed for versatile operations, these valves offer up to four 3-way valve units in a compact and durable housing. With features like solid steel shafts, bronze bearings, tooth-type detents, and die-cast aluminum construction, these valves ensure strength, longevity, and ease of maintenance. Meeting rigorous institutional procurement standards, these valves are ideal for outdoor installations and adverse working conditions, providing reliable performance and efficiency.

Product Specifications

Features Features

Several new features have been designed into the Panel-Mounted "A" PILOTAIR Valve for added strength, easier maintenance and longer service life.One-piece solid steel shaft for increased strength.Bronze bearings in cam housing for longer wear.Separate steel handle and hub for increased strength.Tooth-type Nylatron plastic detents for longer wear and more positive detenting.Internal centering spring assembly for longer wear and more positive handle centering.Die-cast anodized aluminum body and cam housing for lighter weight, added strength and corrosion resistance.More-positive handle latch. Available in one, two, and three positions for added flexibility and longer service lift.

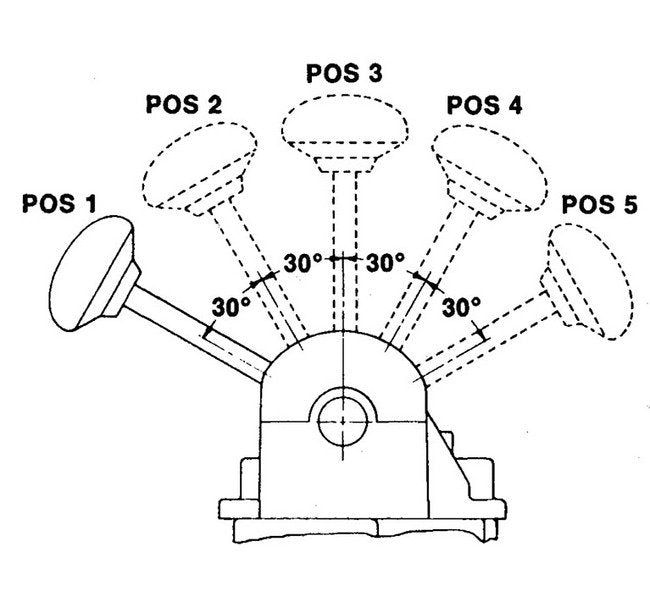

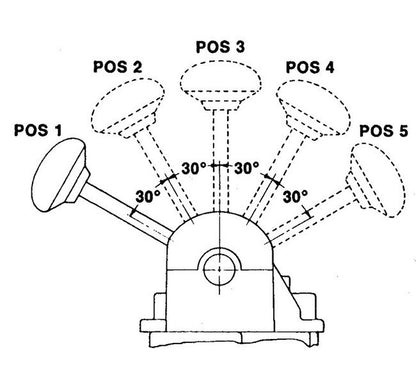

Specifications Handle Positions

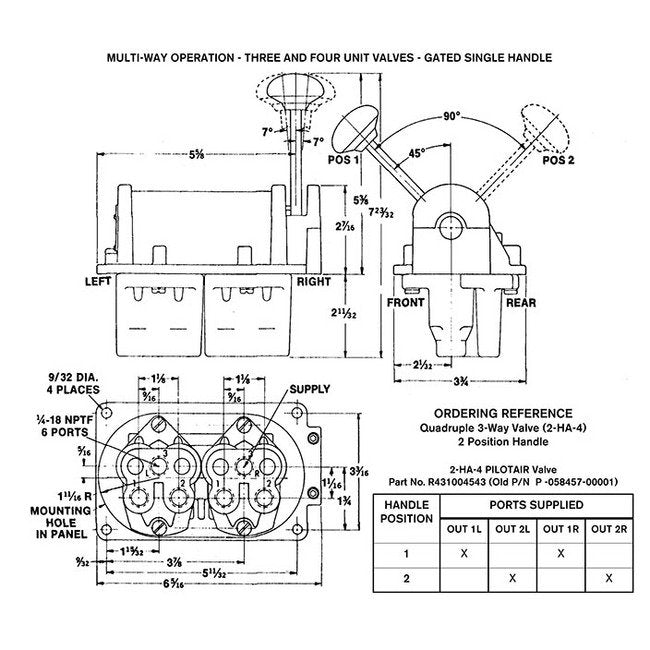

Specifications Height

7 23/32 in.

Specifications Length

6 5/16 in.

Specifications Model

2-HA-4

Specifications Old Part

P 060153 | P -060153-00000 | P 60153 | P060153 | P60153

Specifications Type

Quadruple 3-Way Valve

Specifications Weight

4 lb | 1.81 kg

Specifications Width

3 3/4 in.
