Rexroth Panel-Mounted Pilotair Valve 2-HA-3 & 2-HA-4

Name: Rexroth Panel-Mounted Pilotair Valve 2-HA-3 & 2-HA-4
Brand: Distributor To Industry, Inc.
SKU: DRI-73ad23
Price: 235.99 USD
Availability: OutOfStock

SKU:DRI-73ad23

Advanced Panel-Mounted Pilotair Valve for precise directional control in marine, mobile & oil field applications.

$235.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Rexroth Panel-Mounted Pilotair Valve 2-HA-3 & 2-HA-4 are precision-engineered pneumatic directional control valves designed to meet the diverse needs of marine, mobile, and oil field applications. Featuring a compact design suitable for outdoor use, these valves offer unmatched versatility with up to four 3-way valve units in a single housing. With durable construction and advanced features like steel shafts, bronze bearings, and die-cast aluminum bodies, they ensure superior strength, longevity, and ease of maintenance. Ideal for multiposition cylinders and transmission controls, these valves provide precise control over multiple circuits with ergonomic handle options for efficient operation.

Product Specifications

Features Features

Several new features have been designed into the Panel-Mounted "A" PILOTAIR Valve for added strength, easier maintenance and longer service life.One-piece solid steel shaft for increased strength.Bronze bearings in cam housing for longer wear.Separate steel handle and hub for increased strength.Tooth-type Nylatron plastic detents for longer wear and more positive detenting.Internal centering spring assembly for longer wear and more positive handle centering.Die-cast anodized aluminum body and cam housing for lighter weight, added strength and corrosion resistance.More-positive handle latch. Available in one, two, and three positions for added flexibility and longer service lift.

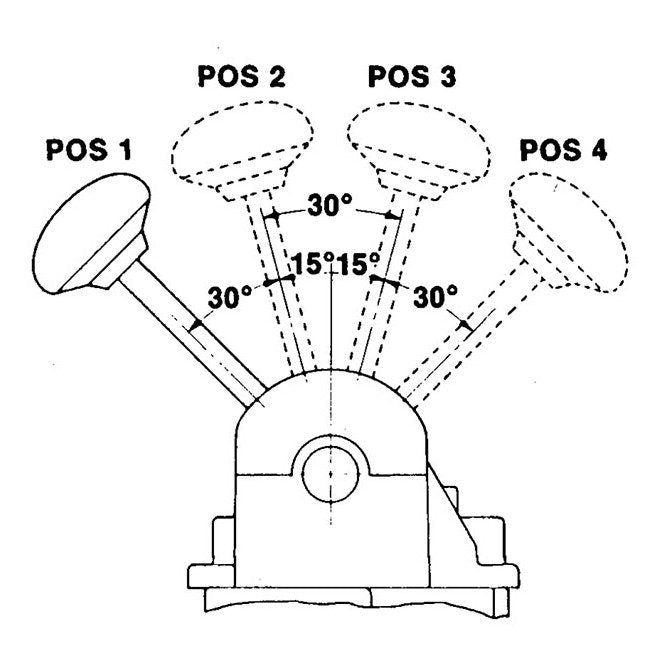

Specifications Handle Positions

Specifications Height

7 23/32 in.

Specifications Length

6 5/16 in.

Specifications Model

2-HA-4

Specifications Old Part

P 060324 | P -060324-00000 | P 60324 | P060324 | P60324

Specifications Type

Quadruple 3-Way Valve

Specifications Weight

4 lb | 1.81 kg

Specifications Width

3 3/4 in.

Rexroth Panel-Mounted Pilotair Valve 2-HA-3 & 2-HA-4
