Rexroth Panel-Mounted Pilotair Valve 2-HA-3 & 2-HA-4

Name: Rexroth Panel-Mounted Pilotair Valve 2-HA-3 & 2-HA-4
Brand: Distributor To Industry, Inc.
SKU: DRI-53b237
Price: 189.99 USD
Availability: OutOfStock

SKU:DRI-53b237

Premium poppet-type pneumatic directional control valves for deluxe panel mountings, offering versatile operation and durability.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

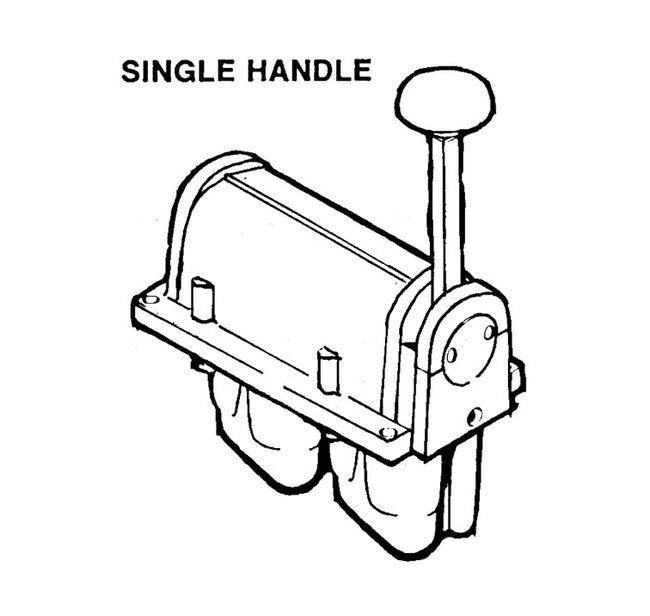

The Rexroth Panel-Mounted Pilotair Valve 2-HA-3 & 2-HA-4 are expertly designed poppet-type pneumatic directional control valves suitable for deluxe panel mountings. With a streamlined compact design, durable construction, and versatile operating features, these valves are ideal for outdoor installations and unfavorable working conditions. The valves offer multiple handle positions, separate supply sources for different functions, and the ability to control up to four different circuits. Designed for operating flexibility, strength, and longevity, these valves meet the highest standards of performance and reliability in industrial settings.

Product Specifications

Features Features

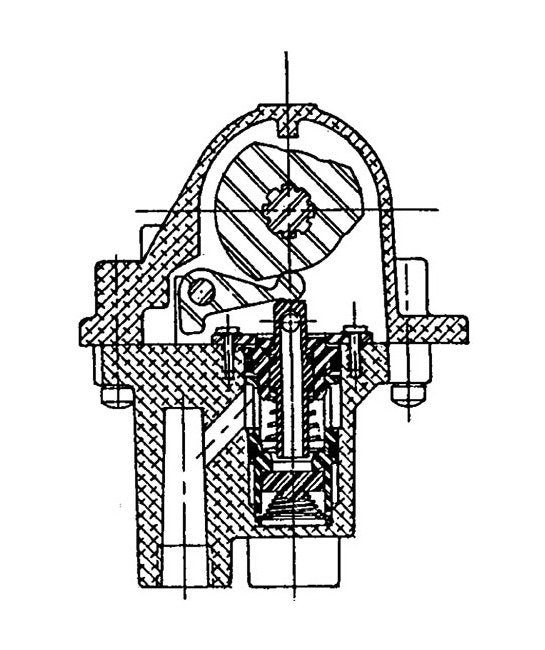

Several new features have been designed into the Panel-Mounted "A" PILOTAIR Valve for added strength, easier maintenance and longer service life.One-piece solid steel shaft for increased strength.Bronze bearings in cam housing for longer wear.Separate steel handle and hub for increased strength.Tooth-type Nylatron plastic detents for longer wear and more positive detenting.Internal centering spring assembly for longer wear and more positive handle centering.Die-cast anodized aluminum body and cam housing for lighter weight, added strength and corrosion resistance.More-positive handle latch. Available in one, two, and three positions for added flexibility and longer service lift.

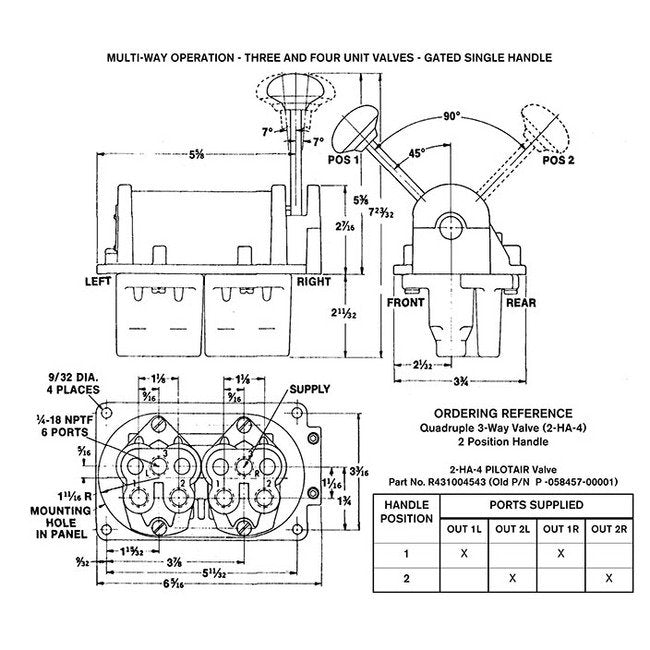

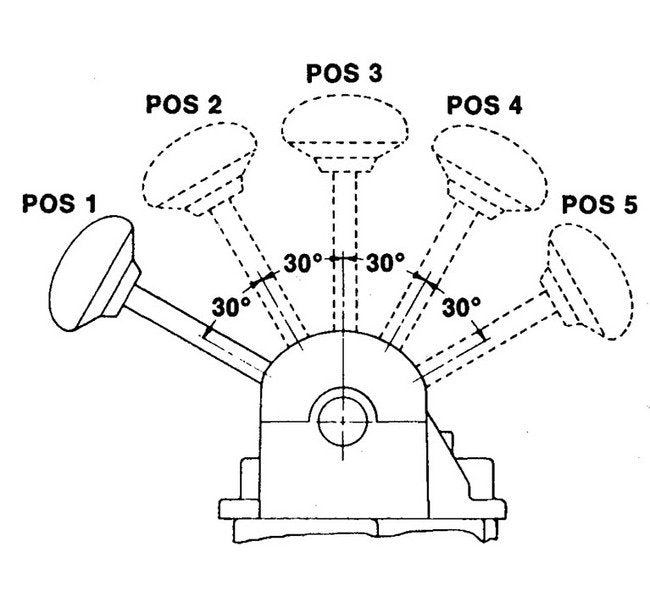

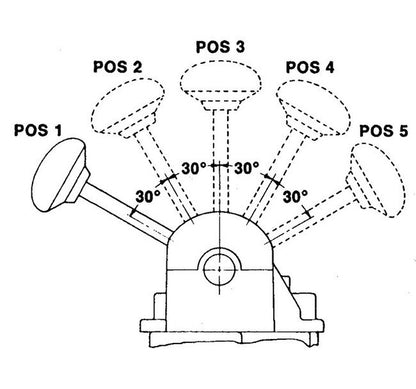

Specifications Handle Positions

Specifications Height

7 23/32 in.

Specifications Length

6 5/16 in.

Specifications Model

2-HA-4

Specifications Old Part

P -058456-00001 | P 058456-1 | P 58456-1 | P058456-1 | P58456-1

Specifications Type

Quadruple 3-Way Valve

Specifications Weight

4 lb | 1.81 kg

Specifications Width

3 3/4 in.

Rexroth Panel-Mounted Pilotair Valve 2-HA-3 & 2-HA-4
