Rexroth Panel-Mounted Pilotair Valve 2-HA-3 & 2-HA-4

Name: Rexroth Panel-Mounted Pilotair Valve 2-HA-3 & 2-HA-4
Brand: Distributor To Industry, Inc.
SKU: DRI-a34e96
Price: 349.99 USD
Availability: OutOfStock

SKU:DRI-a34e96

Premium pneumatic directional control valves for marine, mobile, and oil field applications, offering durability, versatility, and compliance.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

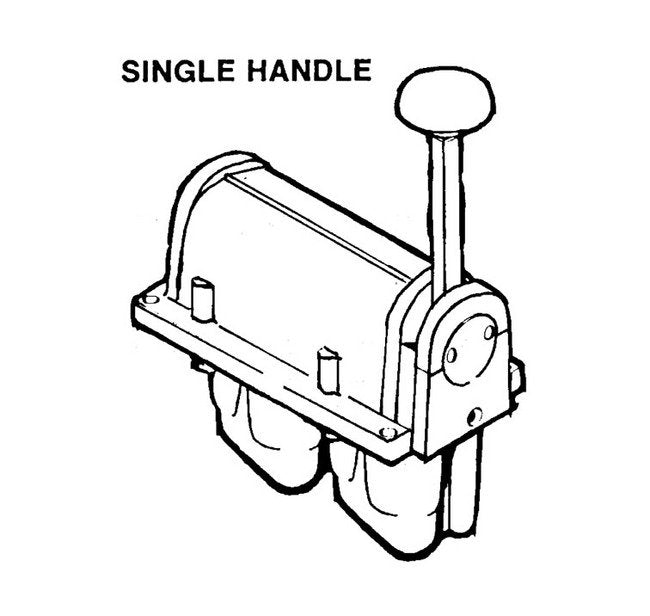

The Rexroth Panel-Mounted Pilotair Valve 2-HA-3 & 2-HA-4 are premium poppet-type pneumatic directional control valves designed for deluxe panel mountings in marine, mobile, and oil field applications. With a streamlined compact design, these valves feature a one-piece solid steel shaft, bronze bearings, Nylatron plastic detents, and die-cast anodized aluminum body for increased strength, wear resistance, and corrosion resistance. Ideal for outdoor use, these valves provide versatile operating cams, multiple handle positions, and separate handle and hub for enhanced durability and longevity. They offer flexibility in function control and meet stringent industrial standards.

Product Specifications

Features Features

Several new features have been designed into the Panel-Mounted "A" PILOTAIR Valve for added strength, easier maintenance and longer service life.One-piece solid steel shaft for increased strength.Bronze bearings in cam housing for longer wear.Separate steel handle and hub for increased strength.Tooth-type Nylatron plastic detents for longer wear and more positive detenting.Internal centering spring assembly for longer wear and more positive handle centering.Die-cast anodized aluminum body and cam housing for lighter weight, added strength and corrosion resistance.More-positive handle latch. Available in one, two, and three positions for added flexibility and longer service lift.

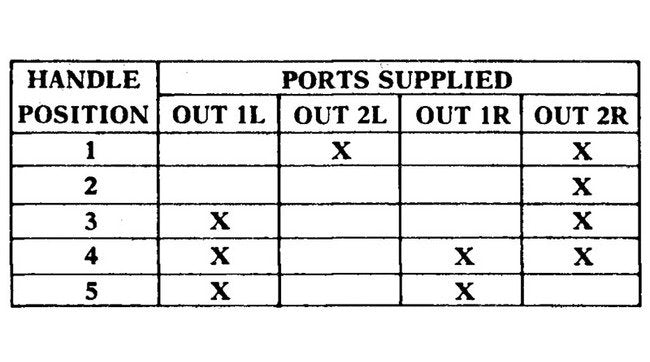

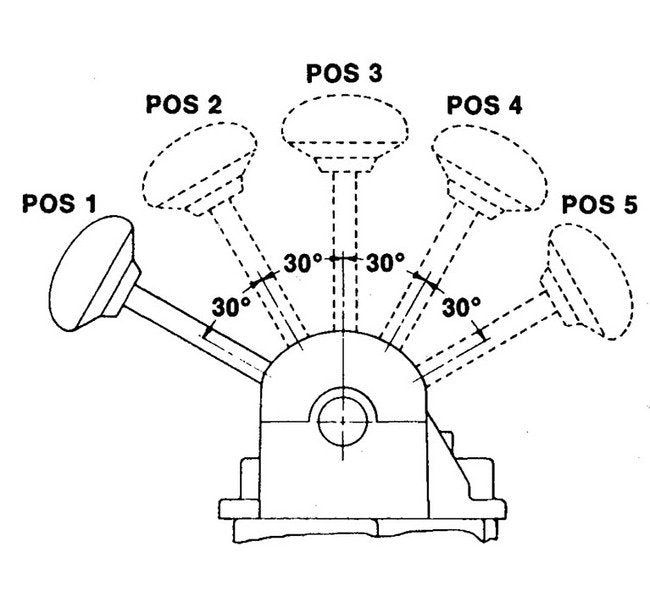

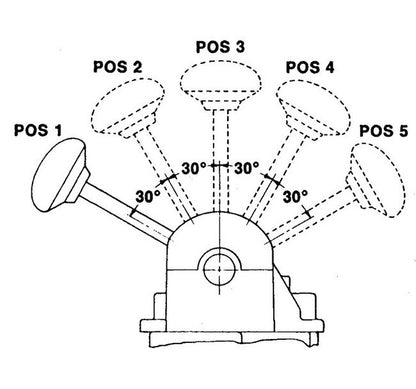

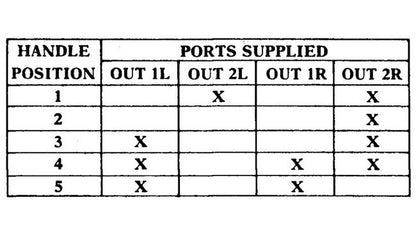

Specifications Handle Positions

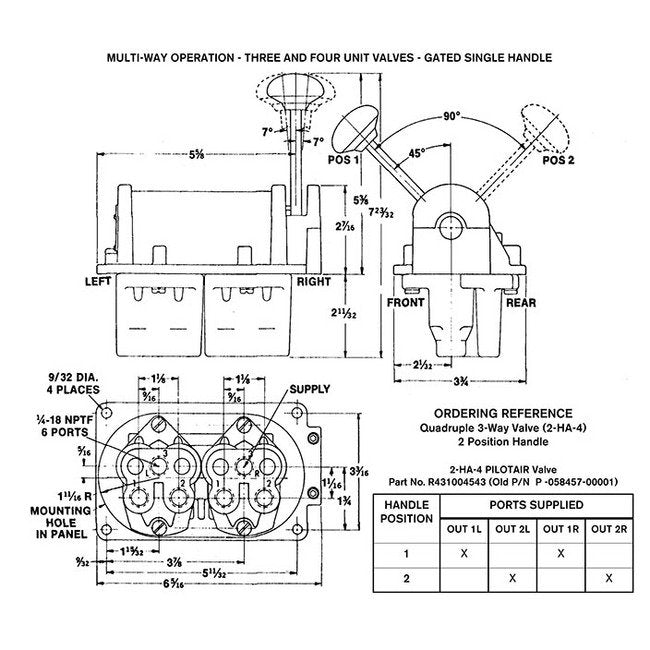

Specifications Height

7 23/32 in.

Specifications Length

6 5/16 in.

Specifications Model

2-HA-4

Specifications Old Part

P -058381-00001 | P 058381-1 | P 58381-1 | P058381-1 | P58381-1

Specifications Type

Quadruple 3-Way Valve

Specifications Weight

4 lb | 1.81 kg

Specifications Width

3 3/4 in.
