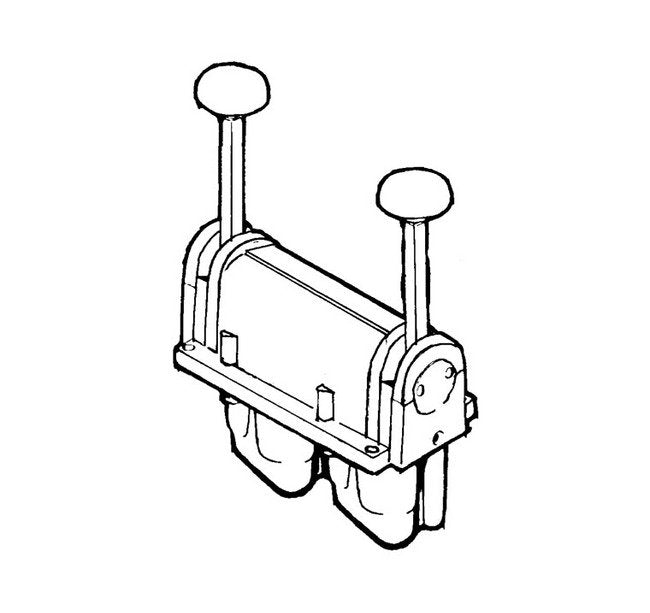

Rexroth Panel-Mounted Pilotair Valve 2-HA-3 & 2-HA-4

Name: Rexroth Panel-Mounted Pilotair Valve 2-HA-3 & 2-HA-4
Brand: Distributor To Industry, Inc.
SKU: DRI-af8691
Price: 179.99 USD
Availability: OutOfStock

SKU:DRI-af8691

Get precise control with the Rexroth Panel-Mounted Pilotair Valve 2-HA-3 & 2-HA-4. Versatile, durable, and compliant with industry standards.

$179.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Rexroth Panel-Mounted Pilotair Valve 2-HA-3 & 2-HA-4 is a robust poppet-type pneumatic directional control valve designed for deluxe panel mountings. Featuring a streamlined compact design, it excels in outdoor installations and adverse working conditions. With versatile operating cams and durable components, this valve offers ease of maintenance, longer service life, and enhanced strength. The valve's multiple function models, double handle assembly, and compliance with industry standards make it an ideal choice for applications requiring directional control of up to four different circuits.

Product Specifications

Features Features

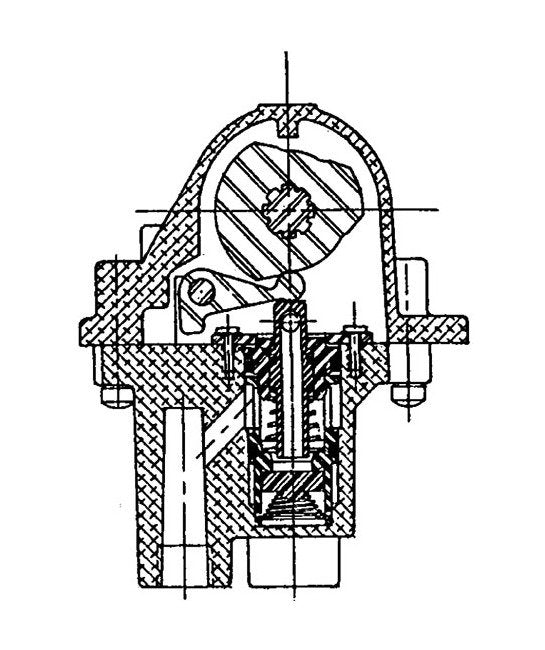

Several new features have been designed into the Panel-Mounted "A" PILOTAIR Valve for added strength, easier maintenance and longer service life.One-piece solid steel shaft for increased strength.Bronze bearings in cam housing for longer wear.Separate steel handle and hub for increased strength.Tooth-type Nylatron plastic detents for longer wear and more positive detenting.Internal centering spring assembly for longer wear and more positive handle centering.Die-cast anodized aluminum body and cam housing for lighter weight, added strength and corrosion resistance.More-positive handle latch. Available in one, two, and three positions for added flexibility and longer service lift.

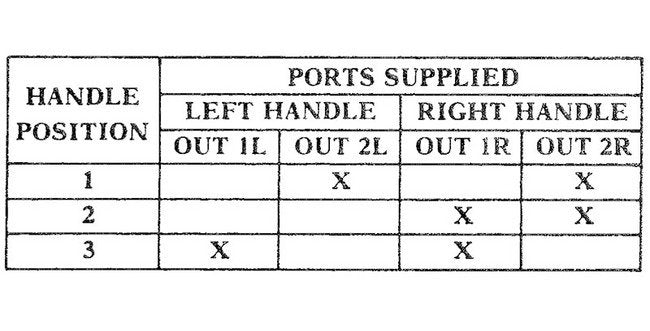

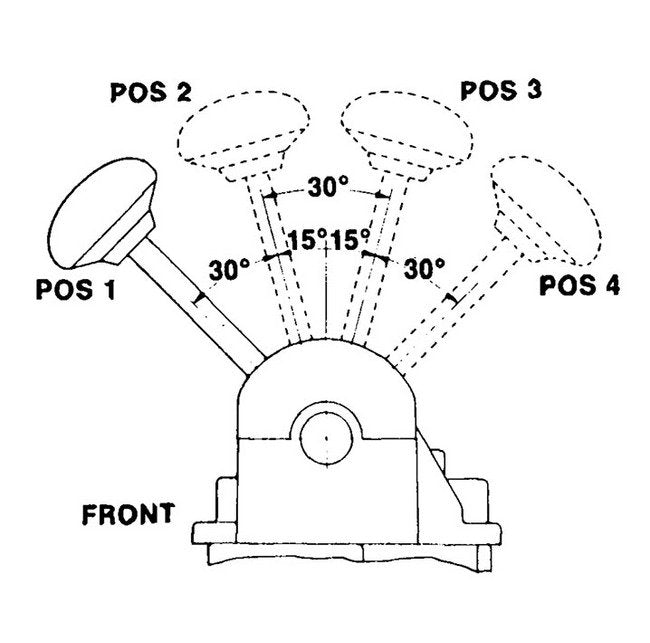

Specifications Handle Positions

3 (Left Handle) | 3 (Right Handle)

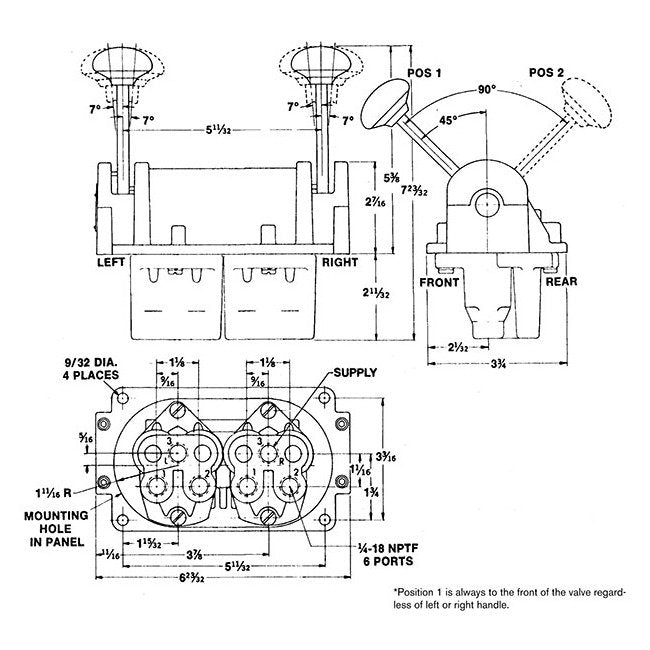

Specifications Height

7 23/32 in.

Specifications Length

6 23/32 in.

Specifications Model

2-HA-4

Specifications Old Part

P -058451-00001 | P 058451-1 | P058451-1 | P58451-1

Specifications Type

Quadruple 3-Way Valve

Specifications Weight

4 lb | 1.81 kg

Specifications Width

3 3/4 in.

Rexroth Panel-Mounted Pilotair Valve 2-HA-3 & 2-HA-4
