Rexroth Panel-Mounted PILOTAIR Valve 2-HA-3 & 2-HA-4

Name: Rexroth Panel-Mounted PILOTAIR Valve 2-HA-3 & 2-HA-4
Brand: Distributor To Industry, Inc.
SKU: DRI-52543e
Price: 249.99 USD
Availability: OutOfStock

SKU:DRI-52543e

Enhance control precision with the durable and compact Rexroth Panel-Mounted PILOTAIR Valve 2-HA-3 & 2-HA-4. Suitable for outdoor and deluxe panel mountings, offering exceptional operating versatility and handle flexibility.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Rexroth Panel-Mounted PILOTAIR Valve in models 2-HA-3 & 2-HA-4 offers exceptional pneumatic directional control for various applications. These valves feature a compact design suitable for outdoor installations, deluxe panel mountings, and adverse working conditions. With a one-piece solid steel shaft, bronze bearings, tooth-type Nylatron detents, and die-cast aluminum construction, they ensure durability, strength, and corrosion resistance. Operating versatility and multiple handle positions provide flexibility for precise control, making them ideal for multi-function control panels and consoles.

Product Specifications

Features Features

Several new features have been designed into the Panel-Mounted "A" PILOTAIR Valve for added strength, easier maintenance and longer service life.One-piece solid steel shaft for increased strength.Bronze bearings in cam housing for longer wear.Separate steel handle and hub for increased strength.Tooth-type Nylatron plastic detents for longer wear and more positive detenting.Internal centering spring assembly for longer wear and more positive handle centering.Die-cast anodized aluminum body and cam housing for lighter weight, added strength and corrosion resistance.More-positive handle latch. Available in one, two, and three positions for added flexibility and longer service lift.

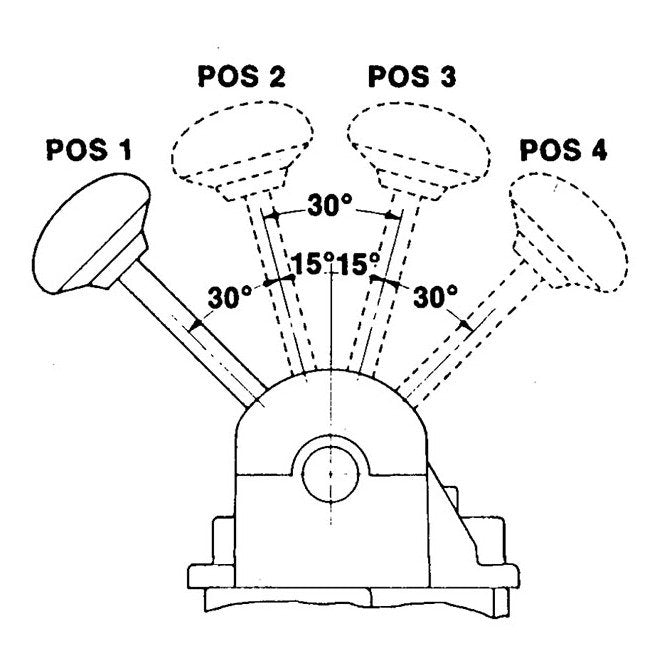

Specifications Handle Positions

Specifications Height

7 23/32 in.

Specifications Length

6 5/16 in.

Specifications Model

2-HA-3

Specifications Old Part

P -058378-00002 | P 058378-2 | P 58378-2 | P058378-2 | P58378-2

Specifications Type

Triple 3-Way Valve

Specifications Weight

4 lb | 1.81 kg

Specifications Width

3 3/4 in.

Rexroth Panel-Mounted PILOTAIR Valve 2-HA-3 & 2-HA-4
