Rexroth Panel-Mounted Pilotair Valve 2-HA-3 & 2-HA-4

Name: Rexroth Panel-Mounted Pilotair Valve 2-HA-3 & 2-HA-4
Brand: Distributor To Industry, Inc.
SKU: DRI-81de52
Price: 289.99 USD
Availability: OutOfStock

SKU:DRI-81de52

Streamlined Rexroth Panel-Mounted Pilotair Valve for versatile and durable pneumatic directional control.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your panel with the versatile Rexroth Panel-Mounted Pilotair Valve. With a compact design suited for deluxe mountings, it offers strength, durability, and ease of maintenance. Ideal for marine, mobile, and oil field applications, this valve provides precise directional control and multiple handle positions for diverse operational needs.

Product Specifications

Features Features

Several new features have been designed into the Panel-Mounted "A" PILOTAIR Valve for added strength, easier maintenance and longer service life.One-piece solid steel shaft for increased strength.Bronze bearings in cam housing for longer wear.Separate steel handle and hub for increased strength.Tooth-type Nylatron plastic detents for longer wear and more positive detenting.Internal centering spring assembly for longer wear and more positive handle centering.Die-cast anodized aluminum body and cam housing for lighter weight, added strength and corrosion resistance.More-positive handle latch. Available in one, two, and three positions for added flexibility and longer service lift.

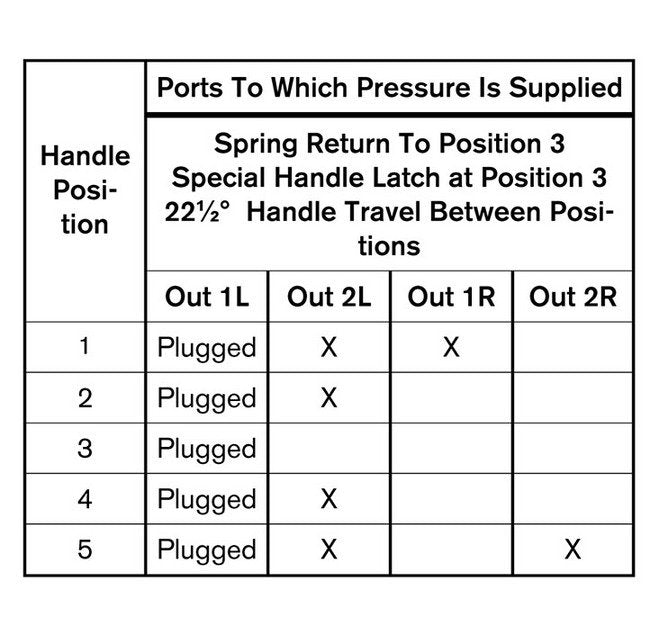

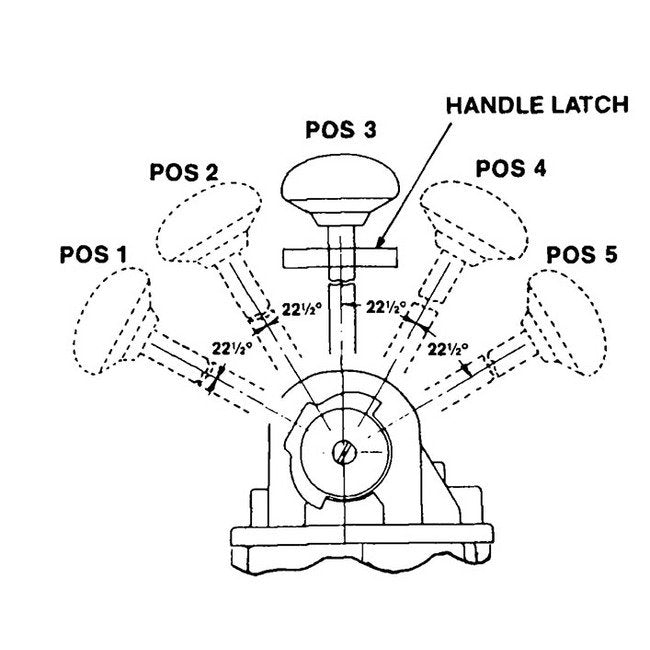

Specifications Handle Positions

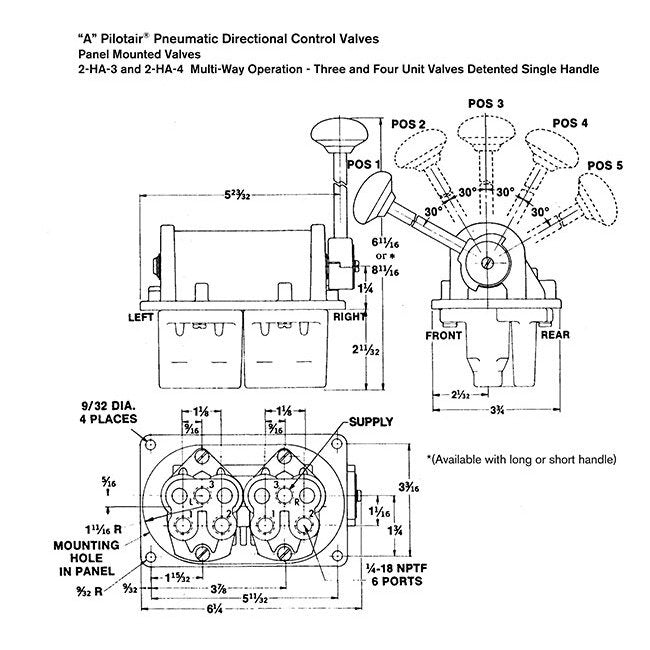

Specifications Height

6 11/16 in. | 8 11/16 in.

Specifications Length

6 1/4 in.

Specifications Model

2-HA-3L

Specifications Old Part

P 069079 | P -069079-00000 | P 69079 | P069079 | P69079

Specifications Type

Triple 3-Way Valve

Specifications Weight

4 lb | 1.81 kg

Specifications Width

3 3/4 in.
