Rexroth Panel-Mounted Pilotair Valve - Quadruple 3-Way, Model 2-HA-4

Name: Rexroth Panel-Mounted Pilotair Valve - Quadruple 3-Way, Model 2-HA-4
Brand: Distributor To Industry, Inc.
SKU: DRI-aee0ab
Price: 289.99 USD
Availability: OutOfStock

SKU:DRI-aee0ab

Enhanced durability and versatile operation. Ideal for multiposition cylinders and transmission controls.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Rexroth Panel-Mounted Pilotair Valve, Model 2-HA-4, is a robust pneumatic directional control valve designed for deluxe panel mountings in challenging environments. Featuring a one-piece solid steel shaft, bronze bearings, and Nylatron plastic detents, this valve offers enhanced strength and durability. With a die-cast aluminum body and cam housing, it provides corrosion resistance and longevity. Ideal for multiposition cylinders and transmission controls, this valve allows flexible operation with up to four 3-way valves, meeting the requirements for varying supply pressures and selector functions. The double handle setup enables convenient control of different functions, making it a versatile choice for industrial applications.

Product Specifications

Features Features

Several new features have been designed into the Panel-Mounted "A" PILOTAIR Valve for added strength, easier maintenance and longer service life.One-piece solid steel shaft for increased strength.Bronze bearings in cam housing for longer wear.Separate steel handle and hub for increased strength.Tooth-type Nylatron plastic detents for longer wear and more positive detenting.Internal centering spring assembly for longer wear and more positive handle centering.Die-cast anodized aluminum body and cam housing for lighter weight, added strength and corrosion resistance.More-positive handle latch. Available in one, two, and three positions for added flexibility and longer service lift.

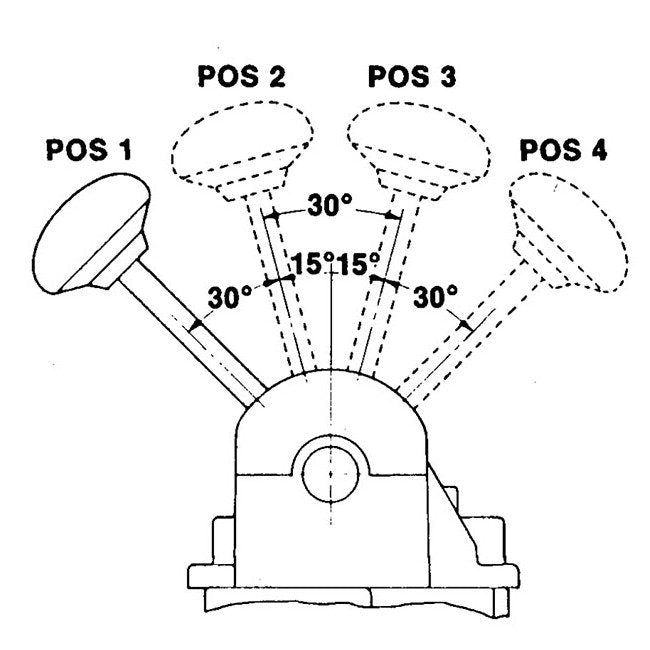

Specifications Handle Positions

4 | 5

Specifications Height

7 23/32 in.

Specifications Length

6 5/16 in.

Specifications Model

2-HA-4

Specifications Old Part

P -058454-00001 | P 058454-1 | P 58454-1 | P058454-1 | P58454-1

Specifications Type

Quadruple 3-Way Valve

Specifications Weight

4 lb | 1.81 kg

Specifications Width

3 3/4 in.

Rexroth Panel-Mounted Pilotair Valve - Quadruple 3-Way, Model 2-HA-4
