The Rexroth Panel-Mounted Pneumatic Valve 2-HA-3 & 2-HA-4 models are robust, poppet-type directional control valves designed for deluxe panel mountings in harsh environments. With a streamlined compact design, these valves offer increased strength with features like a solid steel shaft, bronze bearings, and tooth-type detents for durability and longer service life. Ideal for multiposition cylinders and transmission controls, these valves provide versatility with up to four different circuit controls and two handle options. Meet diverse application requirements with this reliable and corrosion-resistant valve for marine, mobile, and oil field operations.

Product Specifications

Features Features

Several new features have been designed into the Panel-Mounted "A" PILOTAIR Valve for added strength, easier maintenance and longer service life.One-piece solid steel shaft for increased strength.Bronze bearings in cam housing for longer wear.Separate steel handle and hub for increased strength.Tooth-type Nylatron plastic detents for longer wear and more positive detenting.Internal centering spring assembly for longer wear and more positive handle centering.Die-cast anodized aluminum body and cam housing for lighter weight, added strength and corrosion resistance.More-positive handle latch. Available in one, two, and three positions for added flexibility and longer service lift.

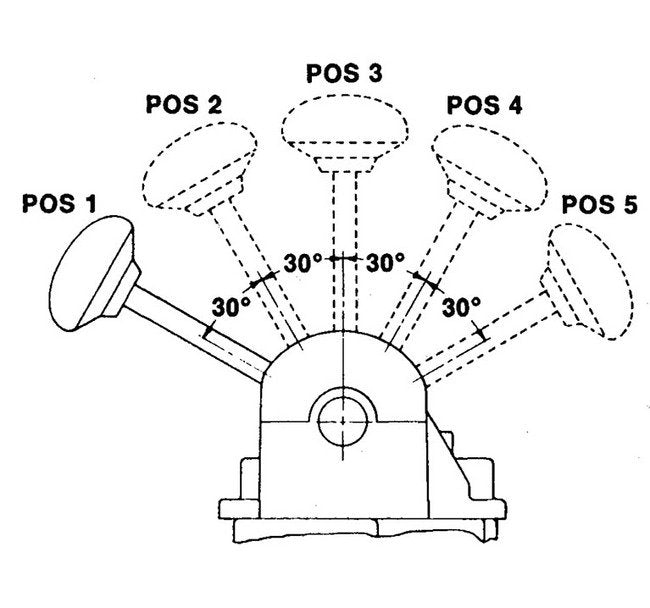

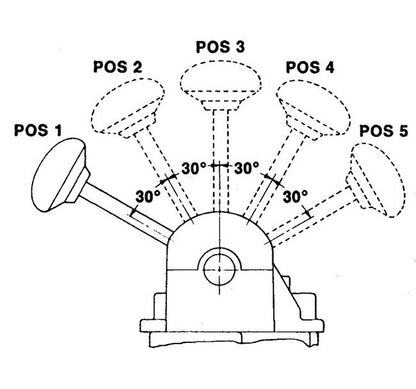

Specifications Handle Positions

Specifications Height

7 23/32 in.

Specifications Length

6 5/16 in.

Specifications Model

2-HA-4

Specifications Old Part

P 061274 | P -061274-00000 | P 61274 | P061274 | P61274

Specifications Type

Quadruple 3-Way Valve

Specifications Weight

4 lb | 1.81 kg

Specifications Width

3 3/4 in.
