Rexroth Panel-Mounted Pneumatic Valve with Quadruple 3-Way Functionality
Rexroth Panel-Mounted Pneumatic Valve with Quadruple 3-Way Functionality
SKU:DRI-d1a71d
Enhance drilling rig precision with the Rexroth Panel-Mounted Pneumatic Valve for up to four functions.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order

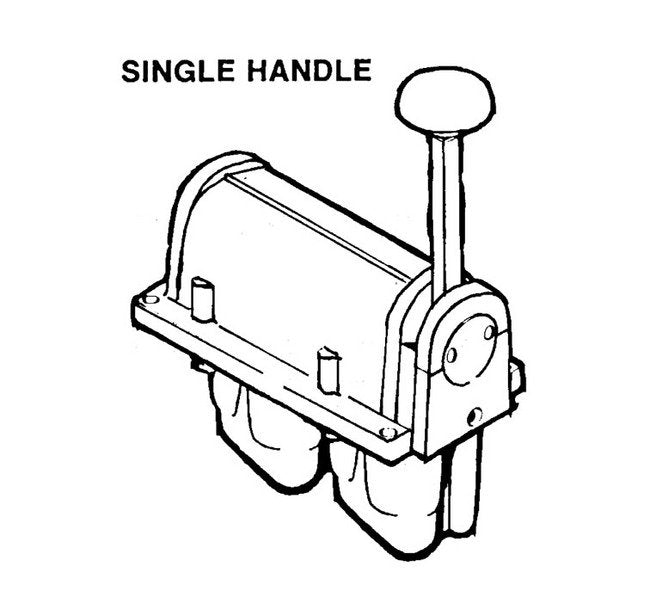

Rexroth Panel-Mounted Pneumatic Valve with Quadruple 3-Way Functionality
$279.99
Quantity: 1
Claim Your Seller Account
Rexroth Panel-Mounted Pneumatic Valve with Quadruple 3-Way Functionality
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rexroth Panel-Mounted Pneumatic Valve with Quadruple 3-Way Functionality is designed for premium directional control in drilling rig applications. Featuring a durable die-cast aluminum body, steel shaft, and bronze bearings, this valve ensures longevity and strength. With tooth-type detents for precision and a spring assembly for reliable centering, it offers enhanced performance. Suitable for outdoor installations and adverse conditions, the valve's design allows for flexible handle positions and seamless operation for up to four valves simultaneously.
Product Specifications
Features Features
Several new features have been designed into the Panel-Mounted "A" PILOTAIR Valve for added strength, easier maintenance and longer service life.One-piece solid steel shaft for increased strength.Bronze bearings in cam housing for longer wear.Separate steel handle and hub for increased strength.Tooth-type Nylatron plastic detents for longer wear and more positive detenting.Internal centering spring assembly for longer wear and more positive handle centering.Die-cast anodized aluminum body and cam housing for lighter weight, added strength and corrosion resistance.More-positive handle latch. Available in one, two, and three positions for added flexibility and longer service lift.

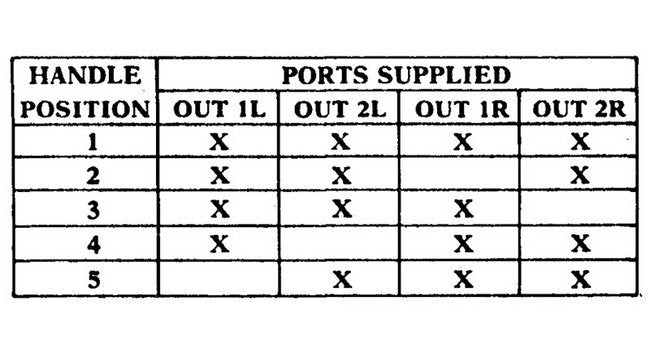

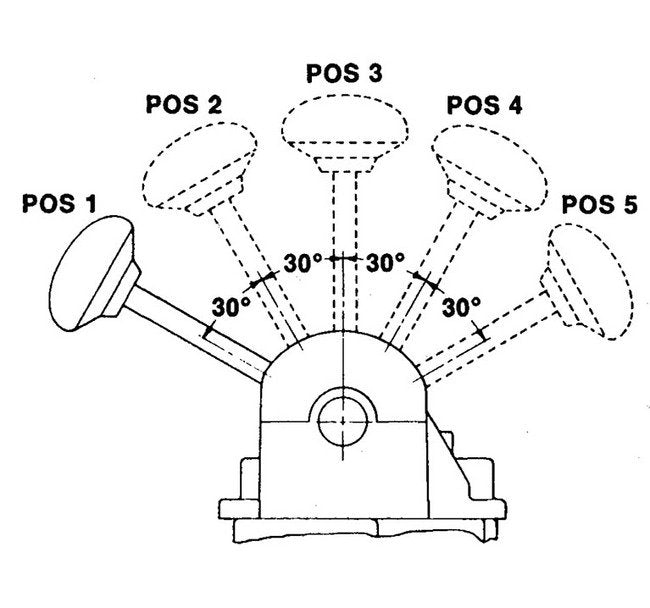

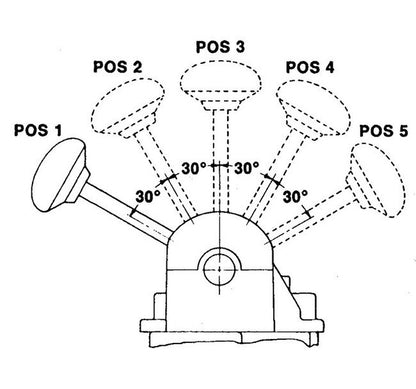

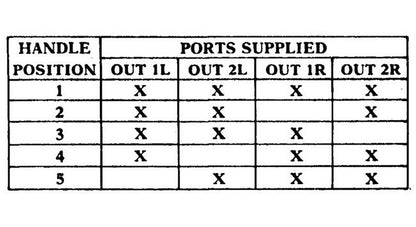

Specifications Handle Positions
5

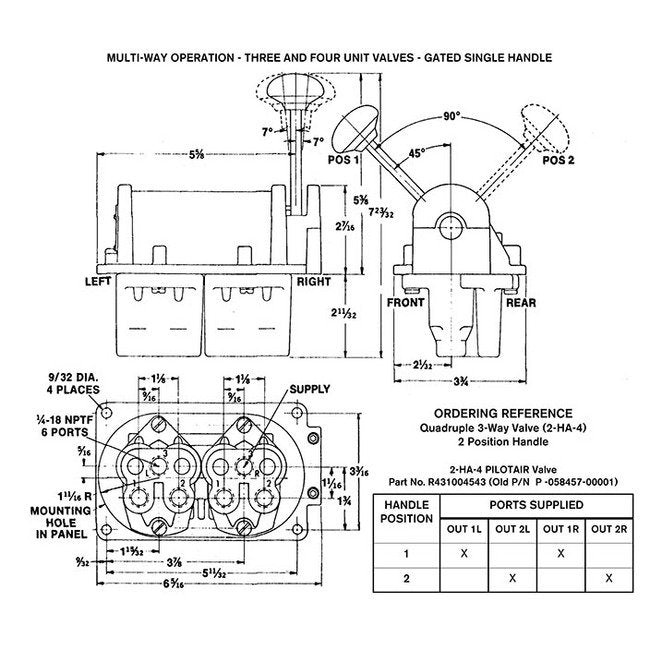

Specifications Height
7 23/32 in.
Specifications Length
6 5/16 in.
Specifications Model
2-HA-4
Specifications Old Part
P 061619 | P -061619-00000 | P 61619 | P061619 | P61619
Specifications Type
Quadruple 3-Way Valve
Specifications Weight
4 lb | 1.81 kg
Specifications Width
3 3/4 in.
