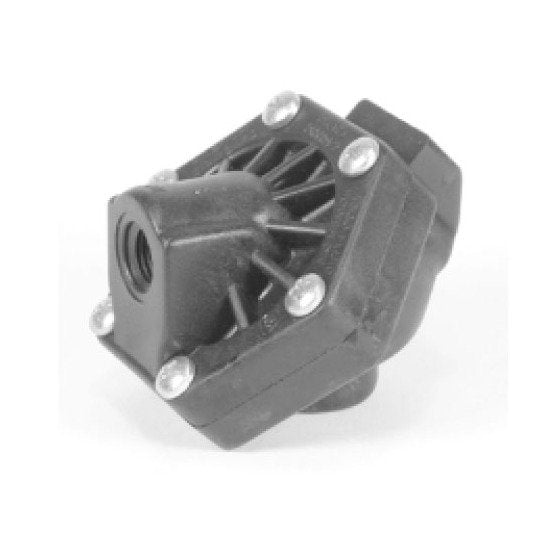

Rexroth Plastic Quick Exhaust Valve - 3/8 Inch (Imperial)

Name: Rexroth Plastic Quick Exhaust Valve - 3/8 Inch (Imperial)
Brand: Distributor To Industry, Inc.
SKU: DRI-021c36
Price: 39.99 USD
Availability: OutOfStock

SKU:DRI-021c36

Efficient air control with Rexroth Plastic Quick Exhaust Valve - 3/8 Inch. Maximize performance in marine, mobile, and oil field applications.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Rexroth Plastic Quick Exhaust Valve is a reliable solution for industrial applications requiring efficient air passage. With a working pressure of 150 psi and a temperature range from -20°F to 160°F (200°F Intermittent), this valve ensures optimal performance in diverse environments. Ideal for marine, mobile, and oil field applications, it features a 3/8 inch port size and an in-line design for easy installation. With a lightweight body and precise specifications, this valve offers responsive air control and unmatched durability.

Product Specifications

Specifications Capacity Cv In To Out

2.30

Specifications Capacity Cv Out To Exh

2.76

Specifications Intermittent Temperature Range

200 ÂºF

Specifications Maximum Working Pressure

150 psi

Specifications Media

Air

Specifications Old Part

P -069324-00003 | P 069324-3 | P 69324-3 | P069324-3 | P69324-3

Specifications Port Size

3/8 Inch

Specifications Temperature Range

-20 to 160 ÂºF

Specifications Type

In-Line

Specifications Weight

7 oz

Rexroth Plastic Quick Exhaust Valve - 3/8 Inch (Imperial)
