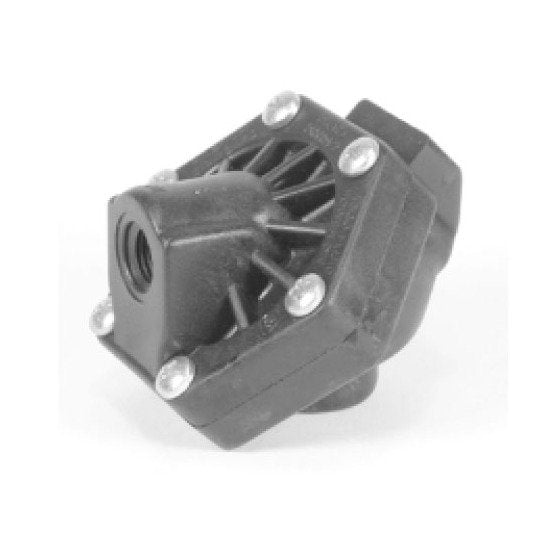

Rexroth Plastic Quick Exhaust Valve (Imperial) - Right Angle 1/4 Inch

Name: Rexroth Plastic Quick Exhaust Valve (Imperial) - Right Angle 1/4 Inch
Brand: Distributor To Industry, Inc.
SKU: DRI-f79e28
Price: 32.99 USD
Availability: OutOfStock

SKU:DRI-f79e28

Rexroth Plastic Quick Exhaust Valve (Imperial) - Durable, High Performance, 150 psi Max Pressure

$32.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Rexroth Plastic Quick Exhaust Valve (Imperial) is designed with a durable plastic body suitable for in-line or right-angle piping configurations. It can handle a maximum working pressure of 150 psi, making it ideal for demanding industrial applications. With a temperature range of -20 to 160°F (-20 to 200°F intermittent), this valve ensures reliable performance in varying conditions. Its air capacity CV from inlet to outlet is 1.54, while from outlet to exhaust it is 1.84, ensuring efficient air flow. Precision-engineered to meet stringent quality standards, this valve guarantees exceptional performance and longevity in marine, mobile, and oil field settings.

Product Specifications

Specifications Capacity Cv In To Out

1.54

Specifications Capacity Cv Out To Exh

1.84

Specifications Intermittent Temperature Range

200 ÂºF

Specifications Maximum Working Pressure

150 psi

Specifications Media

Air

Specifications Old Part

P -069324-00021 | P 069324-21 | P 69324-21 | P069324-21 | P69324-21

Specifications Port Size

1/4 Inch

Specifications Temperature Range

-20 to 160 ÂºF

Specifications Type

Right Angle

Specifications Weight

7 oz
