Rexroth Plastic Quick Exhaust Valves 3/8 Inch Right Angle
Rexroth Plastic Quick Exhaust Valves 3/8 Inch Right Angle
SKU:DRI-35c754
Enhance air exhaust in MMO drilling rigs with Rexroth Plastic Quick Exhaust Valves. Durable, high-performance valves for demanding environments.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Rexroth Plastic Quick Exhaust Valves 3/8 Inch Right Angle
$49.99
Quantity: 1
Claim Your Seller Account
Rexroth Plastic Quick Exhaust Valves 3/8 Inch Right Angle
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

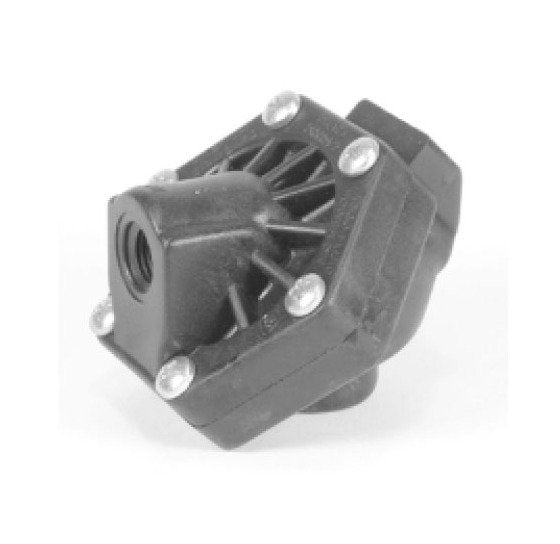

The Rexroth Plastic Quick Exhaust Valves (Imperial) are designed for efficient air exhaust applications in drilling rigs for MMO settings. With a working pressure of 150 psi, these valves ensure reliable performance in demanding environments. Featuring a durable plastic body suitable for in-line or right-angle piping, they offer a wide temperature range from -20°F to 160°F (200°F Intermittent). The valves are optimized for air media and come with a 3/8" NPT port size, making them versatile and easy to integrate into existing systems.
Product Specifications
Specifications Capacity Cv In To Out
2.30
Specifications Capacity Cv Out To Exh
2.76
Specifications Intermittent Temperature Range
200 ºF
Specifications Maximum Working Pressure
150 psi
Specifications Media
Air
Specifications Old Part
P -069324-00031 | P 069324-31 | P 69324-31 | P069324-31 | P69324-31
Specifications Port Size
3/8 Inch
Specifications Temperature Range
-20 to 160 ºF
Specifications Type
Right Angle
Specifications Weight
7 oz
