Rexroth Quadruple 3-Way Valve Panel-Mounted Pilotair Valve

Name: Rexroth Quadruple 3-Way Valve Panel-Mounted Pilotair Valve
Brand: Distributor To Industry, Inc.
SKU: DRI-030bba
Price: 299.99 USD
Availability: OutOfStock

SKU:DRI-030bba

Enhanced quadruple 3-way valve for versatile directional control with durability & precision handling.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Rexroth Quadruple 3-Way Valve Panel-Mounted Pilotair Valve offers a versatile and compact design tailored for deluxe panel mountings in control panels or consoles. With a one-piece solid steel shaft, bronze bearings, and anodized aluminum body, this valve ensures durability and corrosion resistance. The separate steel handle and hub, tooth-type Nylatron plastic detents, and internal centering spring assembly enhance strength, wear resistance, and handling precision. Ideal for multiple position cylinders and transmission controls, this valve meets the stringent requirements of industrial applications for directional control, selector functions, and various supply pressures.

Product Specifications

Features Features

Several new features have been designed into the Panel-Mounted "A" PILOTAIR Valve for added strength, easier maintenance and longer service life.One-piece solid steel shaft for increased strength.Bronze bearings in cam housing for longer wear.Separate steel handle and hub for increased strength.Tooth-type Nylatron plastic detents for longer wear and more positive detenting.Internal centering spring assembly for longer wear and more positive handle centering.Die-cast anodized aluminum body and cam housing for lighter weight, added strength and corrosion resistance.More-positive handle latch. Available in one, two, and three positions for added flexibility and longer service lift.

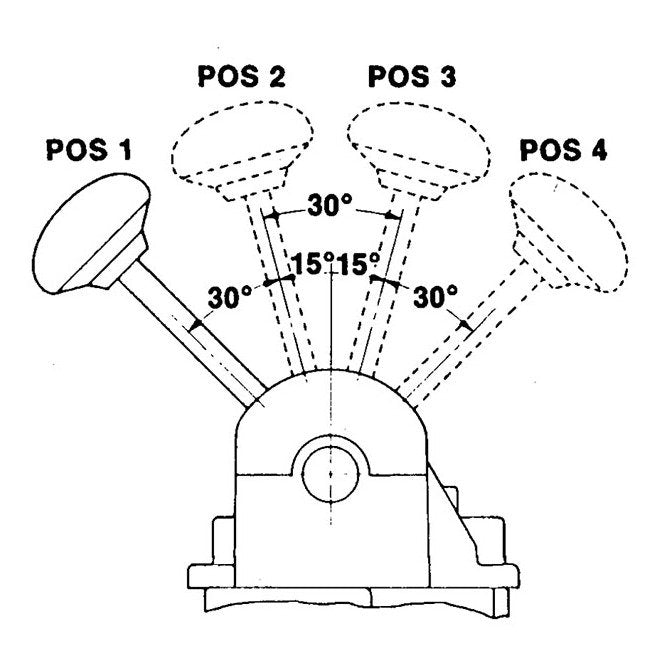

Specifications Handle Positions

4 | 5

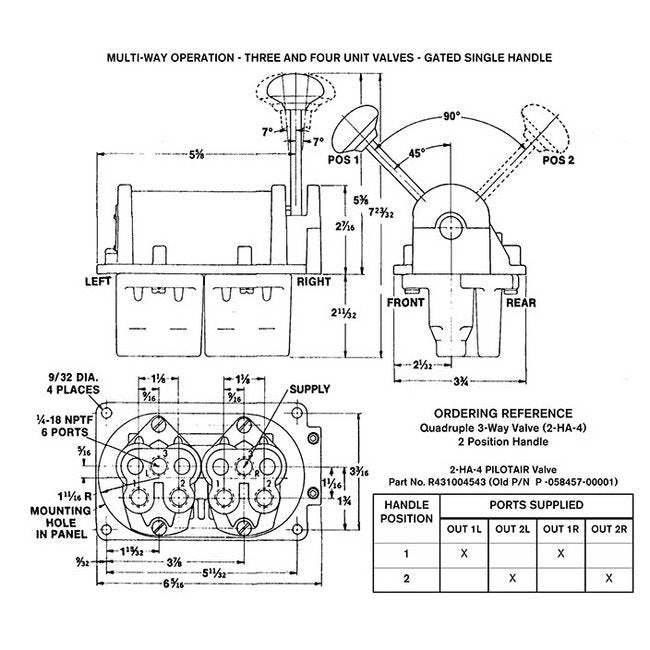

Specifications Height

7 23/32 in.

Specifications Length

6 5/16 in.

Specifications Model

2-HA-4

Specifications Old Part

P 062068 | P -062068-00000 | P 62068 | P062068 | P62068

Specifications Type

Quadruple 3-Way Valve

Specifications Weight

4 lb | 1.81 kg

Specifications Width

3 3/4 in.

Rexroth Quadruple 3-Way Valve Panel-Mounted Pilotair Valve
