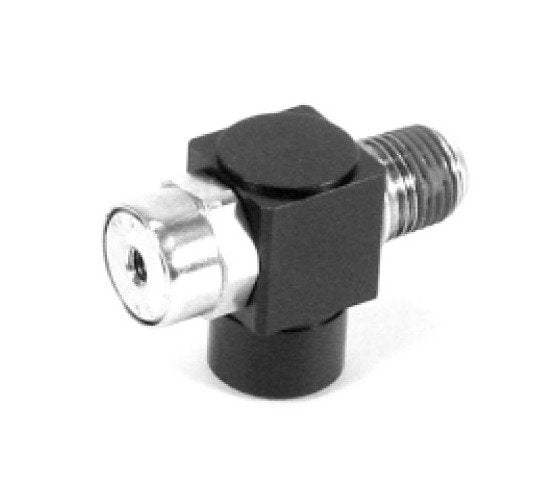

Rexroth Right Angle Check Valves 3/8 Inch

Name: Rexroth Right Angle Check Valves 3/8 Inch
Brand: Distributor To Industry, Inc.
SKU: DRI-d55d4f
Price: 129.99 USD
Availability: OutOfStock

SKU:DRI-d55d4f

High-performance Rexroth Right Angle Check Valve 3/8 Inch for reliable air control in demanding environments.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Rexroth Right Angle Check Valve in 3/8 Inch size is a pilot-operated valve designed for Inch Threaded Inlet applications, ensuring reliable performance in demanding environments. With a supply pressure of 150 PSIG and a durable construction featuring Nickel Plated Brass body and Anodized Aluminum swivel housing, this valve offers exceptional durability and corrosion resistance. Suitable for temperatures ranging from -9 to 71°C, it is ideal for use with air or inert gas media. The valve meets stringent industry standards for quality and performance, making it a reliable choice for both consumer and institutional buyers.

Product Specifications

Specifications Body Material

Nickel Plated Brass

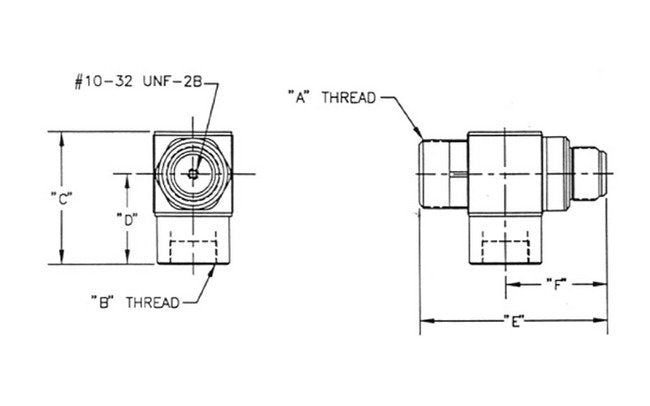

Specifications Dimension A

3/8" NPTF

Specifications Dimension B

3/8" NPTF

Specifications Dimension C

41.0 mm

Specifications Dimension D

28.5 mm

Specifications Dimension E

55.0 mm

Specifications Dimension F

29.0 mm

Specifications Flow 1 2

41.2/1168 SCFM/Nlm

Specifications Flow 2 1

40.8/1156 SCFM/Nlm

Specifications Media

Air or inert gas

Specifications Minimum Pressure

14.5 psig | 1 bar

Specifications Old Part

P 029979 | P -029979-00000 | P 29979 | P029979 | P29979

Specifications Pilot Port Thread Material

1/2 NPTF

Specifications Seal Material

Buna N

Specifications Supply Pressure

150 psig | 10 bar

Specifications Swivel Housing Material

Anodized Aluminum

Specifications Temperature Range

-9 to 71 ÂºC | 15 to 160 ÂºF

Specifications Thread Size

3/8 Inch

Specifications Type

Pilot Operated, Right Angle - for Inch Threaded Inlet
