Rexroth Right Angle Check Valves - Inch Series

Name: Rexroth Right Angle Check Valves - Inch Series
Brand: Distributor To Industry, Inc.
SKU: DRI-805f67
Price: 129.99 USD
Availability: OutOfStock

SKU:DRI-805f67

High-performance Rexroth Right Angle Check Valves for drilling rig applications, with precision control and durable construction.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

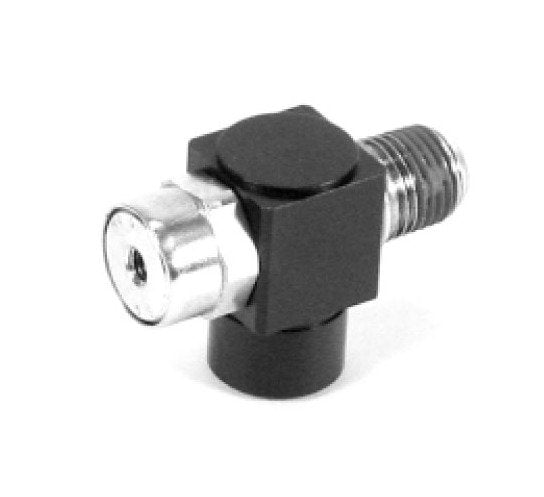

The Rexroth Right Angle Check Valves in the Inch Series are designed for precision control in drilling rig applications for MMO (Marine, Mobile & Oil Field). With a pilot-operated right-angle configuration suitable for inch threaded inlets, these valves offer a supply pressure of 150 PSIG (10 bar) and operate effectively at temperatures ranging from 15 to 160°F (-9 to 71°C). Constructed with high-quality materials including nickel-plated brass body, anodized aluminum swivel housing, and Buna-N seals, these valves ensure reliability and durability in demanding environments.

Product Specifications

Specifications Body Material

Nickel Plated Brass

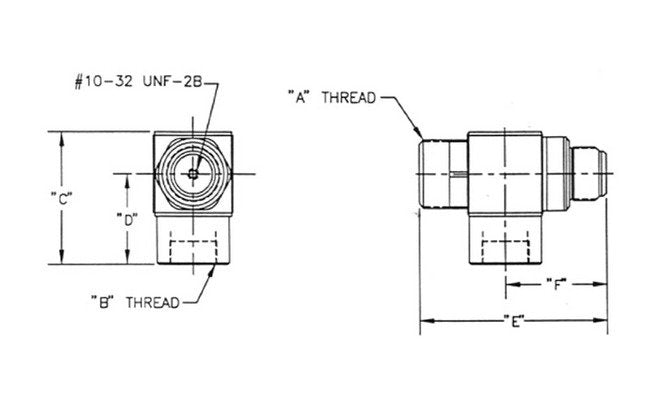

Specifications Dimension A

1/2" NPTF

Specifications Dimension B

1/2" NPTF

Specifications Dimension C

46.3 mm

Specifications Dimension D

31.0 mm

Specifications Dimension E

65.5 mm

Specifications Dimension F

36.0 mm

Specifications Flow 1 2

66.7/1888 SCFM/Nlm

Specifications Flow 2 1

67.5/1910 SCFM/Nlm

Specifications Media

Air or inert gas

Specifications Minimum Pressure

14.5 psig | 1 bar

Specifications Old Part

P 029980 | P -029980-00000 | P 29980 | P029980 | P29980

Specifications Pilot Port Thread Material

1/2 NPTF

Specifications Seal Material

Buna N

Specifications Supply Pressure

150 psig | 10 bar

Specifications Swivel Housing Material

Anodized Aluminum

Specifications Temperature Range

-9 to 71 ÂºC | 15 to 160 ÂºF

Specifications Thread Size

1/2 Inch

Specifications Type

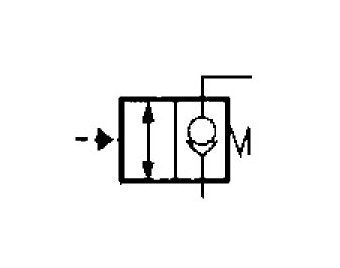

Pilot Operated, Right Angle - for Inch Threaded Inlet

Rexroth Right Angle Check Valves - Inch Series
