Durable Rexroth Right Angle Check Valves for marine, mobile & oil field use. Pilot-operated design, brass body, aluminum housing, ideal for air/inert gas.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

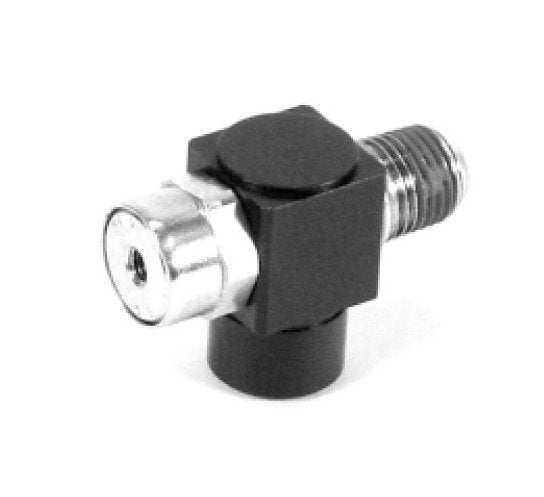

The Rexroth Right Angle Check Valves (Inch Series) feature a pilot-operated design, specifically engineered for inch threaded inlet applications. With a durable nickel-plated brass body, anodized aluminum swivel housing, and Buna-N seals, these valves ensure reliable performance in marine, mobile, and oil field environments. Operating at a supply pressure of 150 PSIG (10 bar) and a temperature range of -9 to 71°C (15 to 160°F), they are ideal for handling air or inert gas with precision and efficiency.

Product Specifications

Specifications Body Material

Nickel Plated Brass

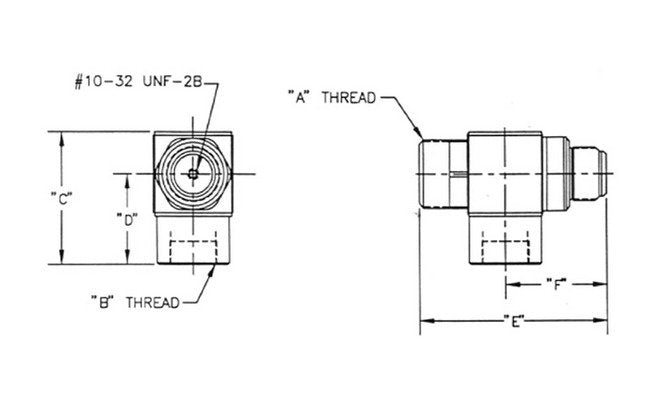

Specifications Dimension A

1/8" NPTF

Specifications Dimension B

1/8" NPTF

Specifications Dimension C

26.7 mm

Specifications Dimension D

18.5 mm

Specifications Dimension E

41.0 mm

Specifications Dimension F

19.8 mm

Specifications Flow 1 2

4.5/128 SCFM/Nlm

Specifications Flow 2 1

10.2/289 SCFM/Nlm

Specifications Media

Air or inert gas

Specifications Minimum Pressure

14.5 psig | 1 bar

Specifications Old Part

P 029977 | P -029977 | P -029977-00000 | P 29977 | P029977

Specifications Pilot Port Thread Material

1/2 NPTF

Specifications Seal Material

Buna N

Specifications Supply Pressure

150 psig | 10 bar

Specifications Swivel Housing Material

Anodized Aluminum

Specifications Temperature Range

-9 to 71 ÂºC | 15 to 160 ÂºF

Specifications Thread Size

1/8 Inch

Specifications Type

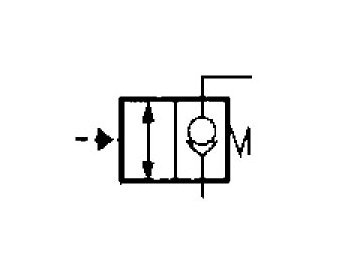

Pilot Operated, Right Angle - for Inch Threaded Inlet
