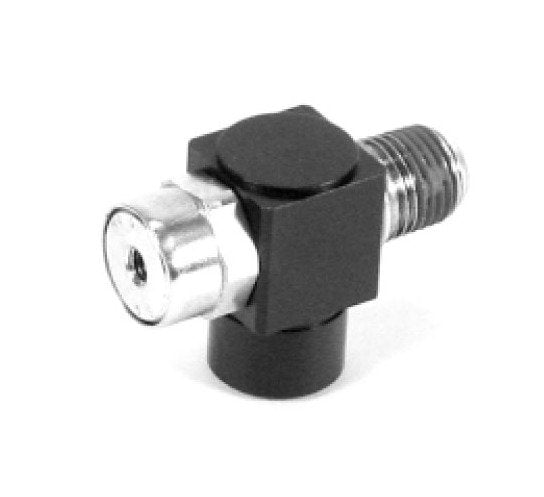

The Rexroth Right Angle Check Valves (Inch Series) are meticulously engineered for optimal performance in drilling rig air valve systems. Featuring a pilot-operated design and anodized aluminum swivel housing, these valves ensure reliable operation under varying supply pressures. With a temperature range of -9°C to 71°C and compatibility with air or inert gases, they offer versatility for diverse applications. Crafted with durable nickel-plated brass bodies and Buna-N seals, these valves deliver long-lasting durability and leak-free performance. Ideal for Marine, Mobile, and Oil Field settings, these valves meet rigorous industry standards for precision and efficiency.
Product Specifications
Specifications Body Material
Nickel Plated Brass

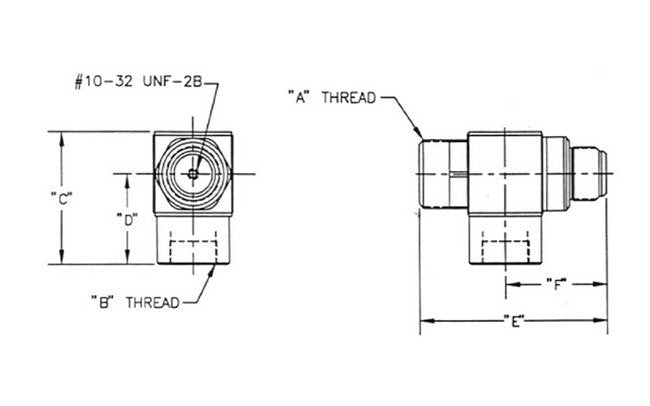

Specifications Dimension A
1/4" NPTF
Specifications Dimension B
1/4" NPTF
Specifications Dimension C
32.9 mm
Specifications Dimension D
22.5 mm
Specifications Dimension E
48.0 mm
Specifications Dimension F
25.8 mm
Specifications Flow 1 2
21.8/617 SCFM/Nlm
Specifications Flow 2 1
23.8/676 SCFM/Nlm
Specifications Media
Air or inert gas
Specifications Minimum Pressure
14.5 psig | 1 bar
Specifications Old Part
P 029978 | P -029978-00000 | P 29978 | P029978 | P29978
Specifications Pilot Port Thread Material
1/2 NPTF
Specifications Seal Material
Buna N
Specifications Supply Pressure
150 psig | 10 bar
Specifications Swivel Housing Material
Anodized Aluminum
Specifications Temperature Range
-9 to 71 ºC | 15 to 160 ºF
Specifications Thread Size
1/4 Inch

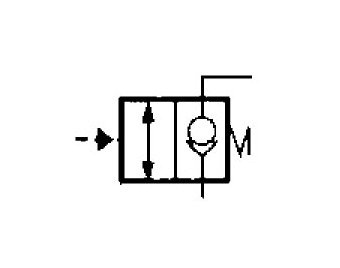

Specifications Type
Pilot Operated, Right Angle - for Inch Threaded Inlet
