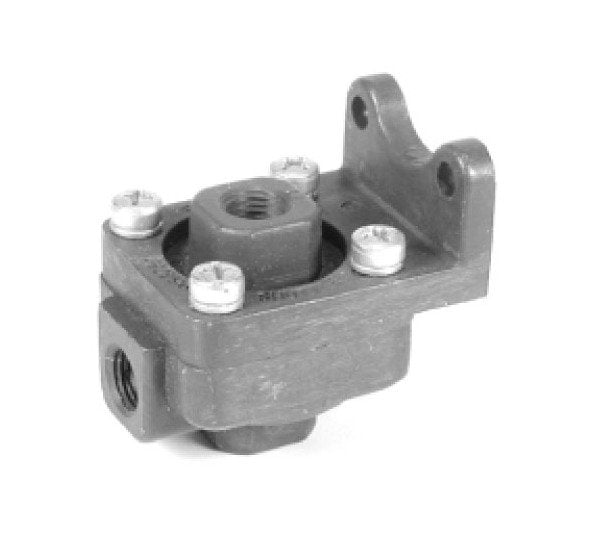

Rexroth Shuttle Valves - NPT Ports for Drilling Rigs
Rexroth Shuttle Valves - NPT Ports for Drilling Rigs
SKU:DRI-90b4bf
Reliable Rexroth Shuttle Valves for precise air flow control in drilling rigs. Compact, durable, and sensitive to pressure differentials.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Rexroth Shuttle Valves - NPT Ports for Drilling Rigs
$39.99
Quantity: 1
Claim Your Seller Account
Rexroth Shuttle Valves - NPT Ports for Drilling Rigs
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

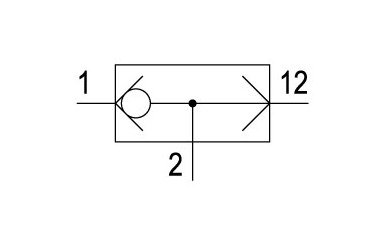

The Rexroth Shuttle Valves with NPT Ports are designed for drilling rig applications in demanding environments like Marine, Mobile & Oil Fields. These valves automatically select and direct air flow between two controlling devices to a common outlet, ensuring seamless operation and flow control. With a robust design featuring a replaceable synthetic rubber diaphragm and lightweight construction, these valves offer reliability, sensitivity, and long life expectancy. Ideal for connecting independent air lines without compromising segregation, the Rexroth Shuttle Valves are compact, easy to install, and effective even in high-pressure scenarios.
Product Specifications
Dimensions A
1 7/8 in.
Dimensions B
15/16 in.
Dimensions C
1 1/4 in.
Dimensions D
2 3/16 in.
Dimensions E
2 3/8 in.
Dimensions F
9/32 in.
Dimensions G
9/32 in.
Dimensions H
2 1/8 in.
Dimensions J
9/32 in.
Dimensions K
21/32 in.
Dimensions L
1 5/16 in.
Dimensions M
1 7/32 in.
Dimensions N
1 29/32 in.
Specifications All Ports
18
Specifications Flow Cv
1.58
Specifications Maximum Supply Pressure
200 psi
Specifications Media
Air or inert gas
Specifications Old Part
P -054350-00002 | P 054350-2 | P 54350-2 | P054350-2 | P54350-2
Specifications Port Size
1/4 in.
Specifications Temperature Range
-40ºF to 160ºF; Intermittent 200ºF is permissible.
Specifications Weight
7 oz
