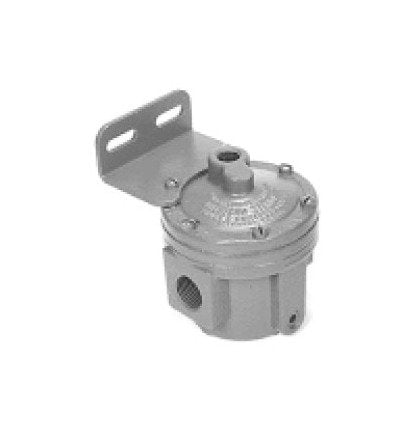

Rexroth Type 'S' Pilot-Operated Relay Valve
Rexroth Type 'S' Pilot-Operated Relay Valve
SKU:DRI-1dc769
Reliable pilot-operated relay valve for efficient pneumatic pressure control.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Rexroth Type 'S' Pilot-Operated Relay Valve
$199.99
Quantity: 1
Claim Your Seller Account
Rexroth Type 'S' Pilot-Operated Relay Valve
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

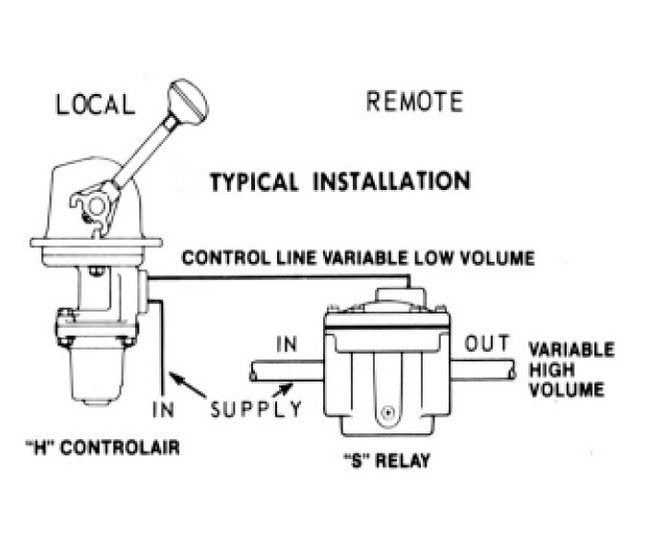

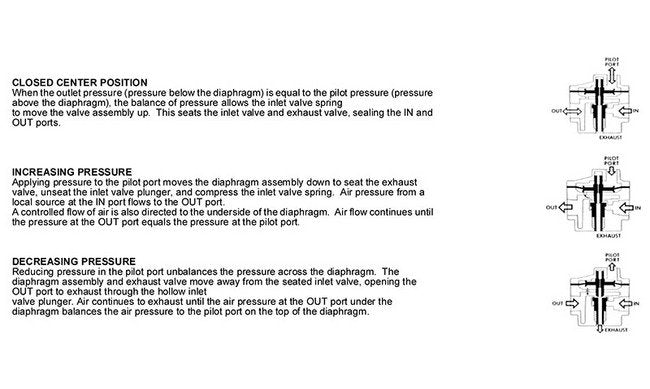

The Rexroth Type 'S' Pilot-Operated Relay Valve offers unparalleled reliability and performance for pneumatic pressure control applications. This valve functions on a 1:1 ratio, maintaining pressure as directed by the pilot line. Its balanced internal valve ensures pressure regulation, while the rubber-seated design guarantees zero leakage. With versatile installation options, easy maintenance, and corrosion-resistant construction, this valve is a dependable solution for long piping runs or branch circuits. Maximize your system's efficiency with the large capacity and modern construction of the Rexroth Type 'S' Relay Valve.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

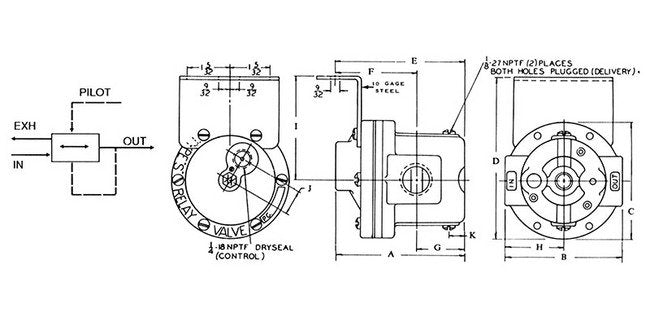

Dimensions A
3 9/16 in.
Dimensions B
3 1/4 in.
Dimensions C
3 1/4 in.
Dimensions D
4 1/2 in.
Dimensions E
4 1/16 in.
Dimensions F
2 1/4 in.
Dimensions G
1 11/32 in.
Dimensions H
1 5/8 in.
Dimensions I
2 7/8 in.
Dimensions J
11/16 in.
Dimensions K
15/32 in.
Materials Body Material
3/4" and 1" die cast aluminum | 3/8" & 1/2" die cast zinc
Materials Diaphragm Material
Nylon reinforced HYCAR
Materials Other Material
Anodized aluminum or plated
Specifications Body Port Size
1/4" and 1" as noted below
Specifications Hysteresis
Less than 5 psi.
Specifications Maximum Pilot Pressure
250 psi
Specifications Maximum Supply Pressure
250 psi
Specifications Media
Air or inert gas
Specifications Model Designation
4-S
Specifications Old Part
P -055161-00000 | P055161 | P-055161 | P55161 | P-55161
Specifications Pilot Port Size
1/4" NPT
Specifications Pipe Size
1/2"-14
Specifications Ratio Pilot To Delivery
1:1 standard; others noted below.
Specifications Temperature Range
-20 to 160 ºF
Specifications Type
3 way pilot operated pressure control
Specifications Weight
2 lb | 4 oz
