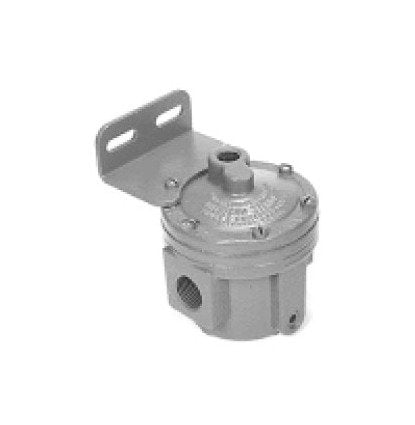

Rexroth Type 'S' Pilot-Operated Relay Valve

Name: Rexroth Type 'S' Pilot-Operated Relay Valve
Brand: Distributor To Industry, Inc.
SKU: DRI-52a61a
Price: 149.99 USD
Availability: OutOfStock

SKU:DRI-52a61a

Reliable Rexroth Type 'S' Relay Valve for precise pressure control and long-distance pneumatic applications.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

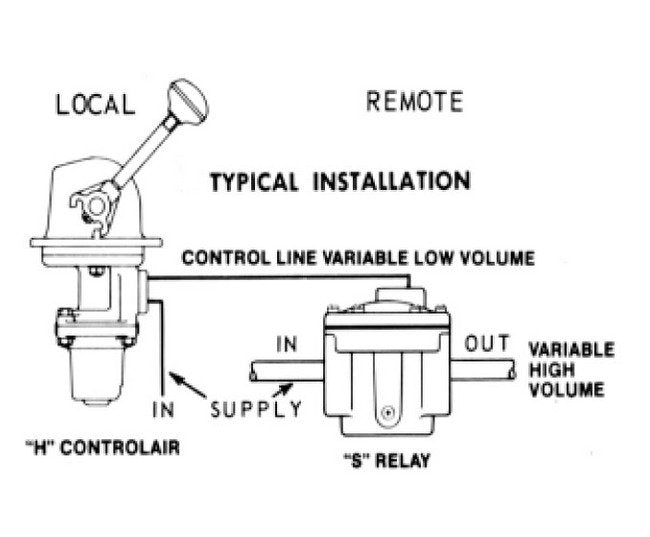

The Rexroth Type 'S' Pilot-Operated Relay Valve offers exceptional reliability with a 1 to 1 pressure ratio, balanced internal valve for pressure regulation, and zero leakage rubber seated valves. Its versatile installation allows operation in any position, with clear marking on the body for easy setup. The valve's design ensures easy maintenance without disconnecting lines, providing large capacity flow and modern corrosion-resistant construction. Ideal for volume boosting applications, the valve enhances response time in pneumatic circuits over long distances or inaccessible locations.

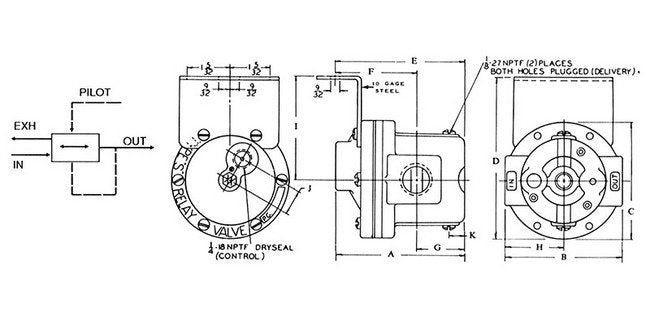

Product Specifications

Dimensions A

4 11/32 in.

Dimensions B

4 1/8 in.

Dimensions C

4 1/8 in.

Dimensions D

5 1/4 in.

Dimensions E

4 7/8 in.

Dimensions F

2 7/8 in.

Dimensions G

1 1/2 in.

Dimensions H

2 1/16 in.

Dimensions I

3 3/16 in.

Dimensions J

3/4 in.

Dimensions K

13/16 in.

Materials Body Material

3/4" and 1" die cast aluminum | 3/8" & 1/2" die cast zinc

Materials Diaphragm Material

Nylon reinforced HYCAR

Materials Other Material

Anodized aluminum or plated

Specifications Body Port Size

1/4" and 1" as noted below

Specifications Hysteresis

Less than 5 psi.

Specifications Maximum Pilot Pressure

250 psi

Specifications Maximum Supply Pressure

250 psi

Specifications Media

Air or inert gas

Specifications Model Designation

8-S

Specifications Old Part

P -055163-00000 | P055163 | P-055163 | P55163 | P-55163

Specifications Pilot Port Size

1/4" NPT

Specifications Pipe Size

1"-11

Specifications Ratio Pilot To Delivery

1:1 standard; others noted below.

Specifications Temperature Range

-20 to 160 ÂºF

Specifications Type

3 way pilot operated pressure control

Specifications Weight

2 lb | 7 oz
