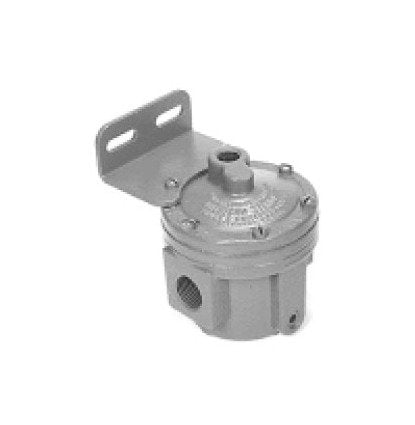

Rexroth Type 'S' Pilot-Operated Relay Valve - P-062243-1

Rexroth Type 'S' Pilot-Operated Relay Valve - P-062243-1

DRI-efeb4d

Enhance pneumatic systems with the reliable Rexroth Type 'S' Pilot-Operated Relay Valve P-062243-1. Ideal for volume boosting and rapid response applications.

$149.99
$149.99
Sale

Initiate Order

Rexroth Type 'S' Pilot-Operated Relay Valve - P-062243-1

Rexroth Type 'S' Pilot-Operated Relay Valve - P-062243-1

$149.99

Quantity: 1

Claim Your Seller Account

Rexroth Type 'S' Pilot-Operated Relay Valve - P-062243-1

Rexroth Type 'S' Pilot-Operated Relay Valve - P-062243-1

$149.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Rexroth Type 'S' Pilot-Operated Relay Valve P-062243-1 offers unparalleled reliability and precise pressure control for pneumatic systems. Featuring a 3-way design and a maximum supply pressure of 250 psi, this valve is ideal for applications requiring efficient volume boosting and rapid response times. With durable corrosion-resistant materials, versatile installation options, and ease of maintenance, this valve ensures optimal performance in demanding industrial environments.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

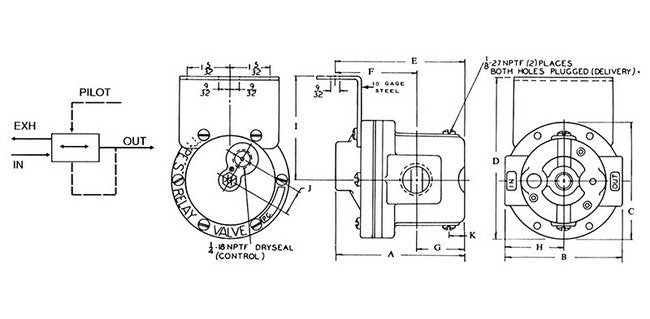

Dimensions A
3 9/16 in.
Dimensions B
3 1/4 in.
Dimensions C
3 1/4 in.
Dimensions D
4 1/2 in.
Dimensions E
4 1/16 in.
Dimensions F
2 1/4 in.
Dimensions G
1 11/32 in.
Dimensions H
1 5/8 in.
Dimensions I
2 7/8 in.
Dimensions J
11/16 in.
Dimensions K
15/32 in.
Materials Body Material
3/4" and 1" die cast aluminum | 3/8" & 1/2" die cast zinc
Materials Diaphragm Material
Nylon reinforced HYCAR
Materials Other Material
Anodized aluminum or plated
Specifications Body Port Size
1/4" and 1" as noted below
Specifications Hysteresis
Less than 5 psi.
Specifications Maximum Pilot Pressure
250 psi
Specifications Maximum Supply Pressure
250 psi
Specifications Media
Air or inert gas
Specifications Model Designation
3-S
Specifications Old Part
P -062243-00001 | P-062243-1 | P062243-1 | P-62243-1 | P62243-1
Specifications Pilot Port Size
1/4" NPT
Specifications Pipe Size
3/8"-18 Reducing 3:1
Specifications Ratio Pilot To Delivery
1:1 standard; others noted below.
Specifications Temperature Range
-20 to 160 ºF
Specifications Type
3 way pilot operated pressure control
