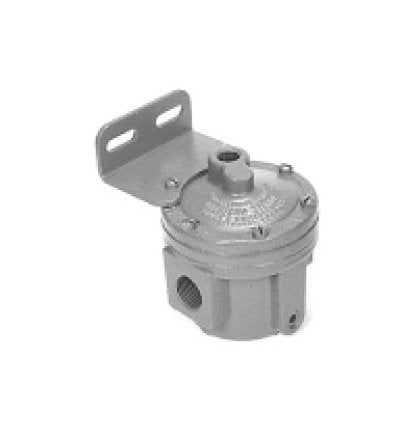

Rexroth Type 'S' Relay Valve - 2-S Model

Rexroth Type 'S' Relay Valve - 2-S Model

DRI-7e8400

Reliable, high-capacity 3-way pneumatic pressure control valve for industrial applications.

$249.99
$249.99
Sale

Initiate Order

Rexroth Type 'S' Relay Valve - 2-S Model

Rexroth Type 'S' Relay Valve - 2-S Model

$249.99

Quantity: 1

Claim Your Seller Account

Rexroth Type 'S' Relay Valve - 2-S Model

Rexroth Type 'S' Relay Valve - 2-S Model

$249.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Rexroth Type 'S' Relay Valve in the 2-S Model is a pilot-operated, pneumatic pressure control valve designed for reliability and large capacity performance. Featuring a 3-way configuration with open exhaust, this valve offers automatic pressure sustainability on a 1:1 ratio, balanced internal valve for pressure relief, and rubber seated valves for zero leakage. With installation versatility and ease of maintenance, it ensures efficient operation in any position. Constructed with corrosion-resistant materials and positive seals at critical points, this valve delivers optimal performance in demanding industrial environments.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Materials Body Material
3/4" and 1" die cast aluminum | 3/8" & 1/2" die cast zinc
Materials Diaphragm Material
Nylon reinforced HYCAR
Materials Other Material
Anodized aluminum or plated
Specifications Body Port Size
1/4" and 1" as noted below
Specifications Hysteresis
Less than 5 psi.
Specifications Maximum Pilot Pressure
250 psi
Specifications Maximum Supply Pressure
250 psi
Specifications Media
Air or inert gas
Specifications Model Designation
2-S
Specifications Old Part
P -062243-00000 | P062243 | P-062243 | P62243 | P-62343
Specifications Pilot Port Size
1/4" NPT
Specifications Pipe Size
1/2"-18 Reducing 3:1
Specifications Ratio Pilot To Delivery
1:1 standard; others noted below.
Specifications Temperature Range
-20 to 160 ºF
Specifications Type
3 way pilot operated pressure control
