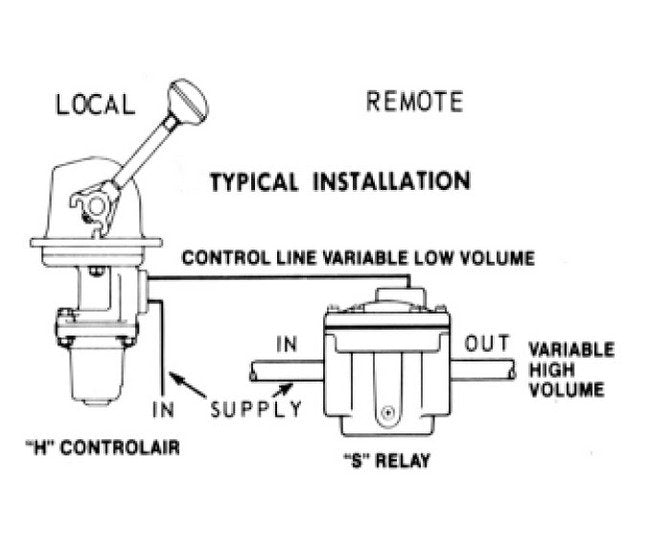

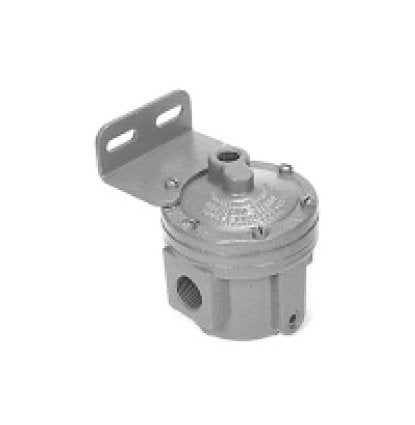

The Rexroth Type 'S' Relay Valve 6-S is a reliable and versatile pneumatic pressure control valve designed for drilling rigs in marine, mobile, and oil field operations. With a 1:1 pilot to delivery ratio and a maximum supply pressure of 250 psi, this valve ensures precision pressure control with minimal hysteresis. Featuring a corrosion-resistant die-cast aluminum body, rubber seated valves for zero leakage, and easy maintenance access, this valve guarantees efficient and durable performance. Its large capacity and modern construction make it ideal for boosting volume and speeding response time in long pneumatic circuits. The Rexroth Type 'S' Relay Valve 6-S is the trusted choice for applications requiring remote piloting and superior control.
Product Specifications

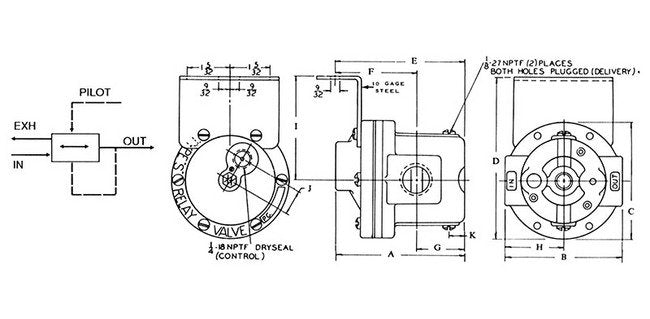

Dimensions A
4 11/32 in.
Dimensions B
4 1/8 in.
Dimensions C
4 1/8 in.
Dimensions D
5 1/4 in.
Dimensions E
4 7/8 in.
Dimensions F
2 7/8 in.
Dimensions G
1 1/2 in.
Dimensions H
2 1/16 in.
Dimensions I
3 3/16 in.
Dimensions J
3/4 in.
Dimensions K
13/16 in.
Materials Body Material
3/4" and 1" die cast aluminum | 3/8" & 1/2" die cast zinc
Materials Diaphragm Material
Nylon reinforced HYCAR
Materials Other Material
Anodized aluminum or plated
Specifications Body Port Size
1/4" and 1" as noted below
Specifications Hysteresis
Less than 5 psi.
Specifications Maximum Pilot Pressure
250 psi
Specifications Maximum Supply Pressure
250 psi
Specifications Media
Air or inert gas
Specifications Model Designation
6-S
Specifications Old Part
P -027450-00000 | P027450 | P-027450 | P27450 | P-27450
Specifications Pilot Port Size
1/4" NPT
Specifications Pipe Size
3/4"-14 Multifunction (2:1 or 3:1)
Specifications Ratio Pilot To Delivery
1:1 standard; others noted below.
Specifications Temperature Range
-20 to 160 ºF
Specifications Type
3 way pilot operated pressure control
