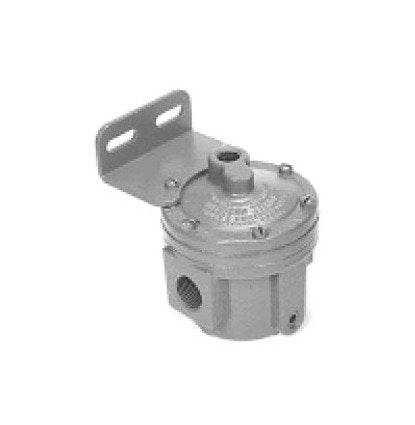

Rexroth Type 'S' Relay Valve - Efficient Pressure Control Solution

Name: Rexroth Type 'S' Relay Valve - Efficient Pressure Control Solution
Brand: Distributor To Industry, Inc.
SKU: DRI-cb97e0
Price: 129.99 USD
Availability: OutOfStock

SKU:DRI-cb97e0

Rexroth Type 'S' Relay Valve - Reliable, Efficient, and Easy Maintenance

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Rexroth Type 'S' Relay Valve is a reliable 3-way pilot-operated pressure control valve built for maximum flow capacity, versatility in installation, and ease of maintenance. With a 1:1 ratio pilot-to-delivery pressure control, it ensures efficient pressure management in pneumatic circuits, making it an ideal volume booster. The valve's corrosion-resistant materials, large capacity, and positive seals eliminate internal and external leakage, guaranteeing long-term reliability and optimal performance.

Product Specifications

Materials Body Material

3/4" and 1" die cast aluminum | 3/8" & 1/2" die cast zinc

Materials Diaphragm Material

Nylon reinforced HYCAR

Materials Other Material

Anodized aluminum or plated

Specifications Body Port Size

1/4" and 1" as noted below

Specifications Hysteresis

Less than 5 psi.

Specifications Maximum Pilot Pressure

250 psi

Specifications Maximum Supply Pressure

250 psi

Specifications Media

Air or inert gas

Specifications Model Designation

2-S

Specifications Old Part

P -027257-00000 | P027257 | P-027257 | P27257 | P-27257

Specifications Pilot Port Size

1/4" NPT

Specifications Pipe Size

1/2"-18 Adjustable

Specifications Ratio Pilot To Delivery

1:1 standard; others noted below.

Specifications Temperature Range

-20 to 160 ÂºF

Specifications Type

3 way pilot operated pressure control
