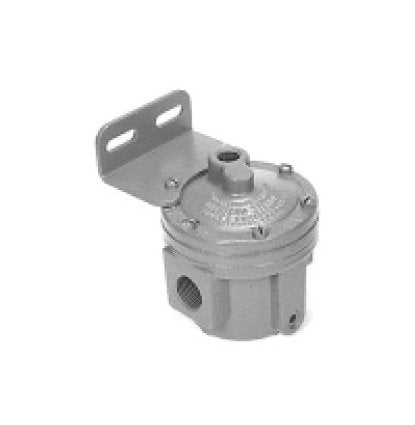

The Rexroth Type 'S' Relay Valve is a top-tier solution for pneumatic pressure control, offering unmatched reliability and efficiency. With a 1:1 standard ratio and a pilot-operated design, this valve ensures precise pressure management, making it ideal for applications requiring rapid response times over long distances. Its large capacity and modern construction ensure maximum durability and optimal flow rates. Easy to install and maintain, this valve is designed for versatility and performance, meeting the stringent requirements of marine, mobile, and oil field applications.
Product Specifications

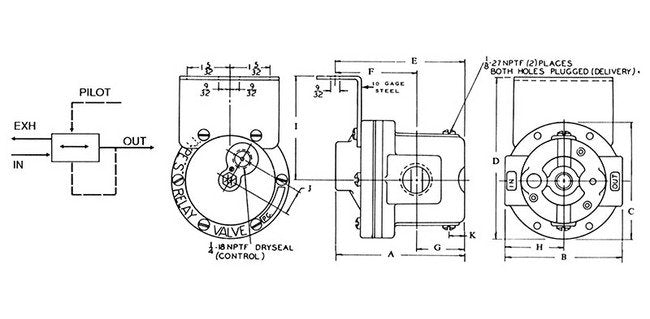

Dimensions A
3 9/16 in.
Dimensions B
3 1/4 in.
Dimensions C
3 1/4 in.
Dimensions D
4 1/2 in.
Dimensions E
4 1/16 in.
Dimensions F
2 1/4 in.
Dimensions G
1 11/32 in.
Dimensions H
1 5/8 in.
Dimensions I
2 7/8 in.
Dimensions J
11/16 in.
Dimensions K
15/32 in.
Materials Body Material
3/4" and 1" die cast aluminum | 3/8" & 1/2" die cast zinc
Materials Diaphragm Material
Nylon reinforced HYCAR
Materials Other Material
Anodized aluminum or plated
Specifications Body Port Size
1/4" and 1" as noted below
Specifications Hysteresis
Less than 5 psi.
Specifications Maximum Pilot Pressure
250 psi
Specifications Maximum Supply Pressure
250 psi
Specifications Media
Air or inert gas
Specifications Model Designation
4-S
Specifications Old Part
P -064955-00002 | P-064955-2 | P064955-2 | P-64955-2 | P64955-2
Specifications Pilot Port Size
1/4" NPT
Specifications Pipe Size
1/2"-14 Hydraulic piloted 300 psi max-Air inlet 150 psi max
Specifications Ratio Pilot To Delivery
1:1 standard; others noted below.
Specifications Temperature Range
-20 to 160 ºF
Specifications Type
3 way pilot operated pressure control
Specifications Weight
2 lb | 10 oz
