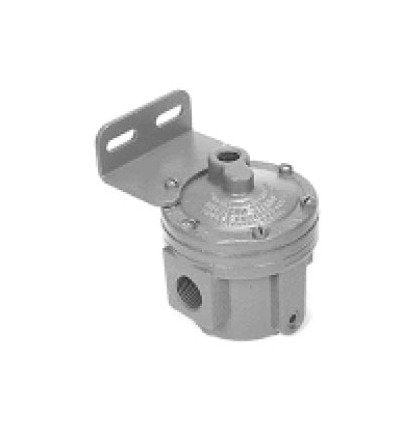

Rexroth Type 'S' Relay Valve - High-Performance Pressure Control
Rexroth Type 'S' Relay Valve - High-Performance Pressure Control
SKU:DRI-629f32
Reliable 3-way pilot-operated pressure control valve for efficient volume boosting in pneumatic systems.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Rexroth Type 'S' Relay Valve - High-Performance Pressure Control
$129.99
Quantity: 1
Claim Your Seller Account
Rexroth Type 'S' Relay Valve - High-Performance Pressure Control
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

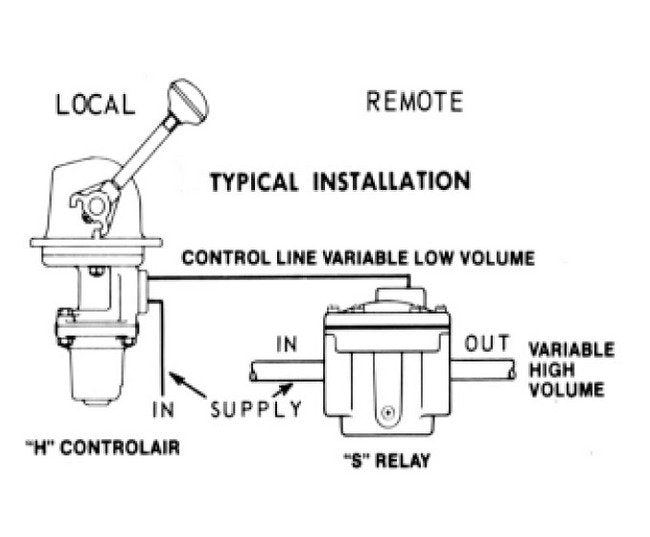

The Rexroth Type 'S' Relay Valve is a reliable 3-way pilot-operated pressure control valve designed for optimal pressure sustainment and flow regulation in pneumatic systems. With a sturdy construction and corrosion-resistant materials, it ensures minimal leakage and maximum durability. It offers versatile installation options, ease of maintenance, and large capacity for efficient volume boosting. Ideal for applications requiring rapid response times over long piping runs, this valve enhances operational efficiency and precision in marine, mobile, and oil field operations.
Product Specifications

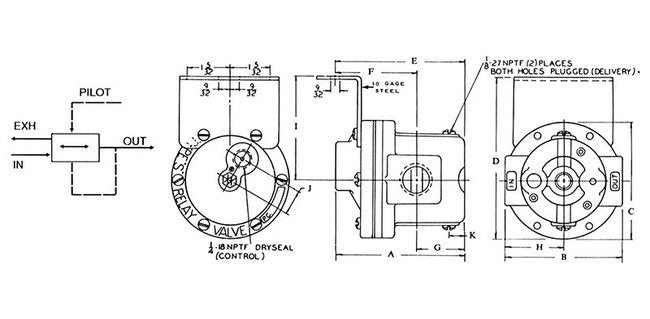

Dimensions A
4 11/32 in.
Dimensions B
4 1/8 in.
Dimensions C
4 1/8 in.
Dimensions D
5 1/4 in.
Dimensions E
4 7/8 in.
Dimensions F
2 7/8 in.
Dimensions G
1 1/2 in.
Dimensions H
2 1/16 in.
Dimensions I
3 3/16 in.
Dimensions J
3/4 in.
Dimensions K
13/16 in.
Materials Body Material
3/4" and 1" die cast aluminum | 3/8" & 1/2" die cast zinc
Materials Diaphragm Material
Nylon reinforced HYCAR
Materials Other Material
Anodized aluminum or plated
Specifications Body Port Size
1/4" and 1" as noted below
Specifications Hysteresis
Less than 5 psi.
Specifications Maximum Pilot Pressure
250 psi
Specifications Maximum Supply Pressure
250 psi
Specifications Media
Air or inert gas
Specifications Model Designation
6-S
Specifications Old Part
P -055162-00000 | P055162 | P-055162 | P55162 | P-55162
Specifications Pilot Port Size
1/4" NPT
Specifications Pipe Size
3/4"-14
Specifications Ratio Pilot To Delivery
1:1 standard; others noted below.
Specifications Temperature Range
-20 to 160 ºF
Specifications Type
3 way pilot operated pressure control
Specifications Weight
2 lb | 10 oz
