RF-Rated SPFT Feed Thru Ceramic Capacitors
RF-Rated SPFT Feed Thru Ceramic Capacitors
SKU:CER-7467ec
Enhance RF system performance with our precision RF-Rated Ceramic Capacitors.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
RF-Rated SPFT Feed Thru Ceramic Capacitors
$34.99
Quantity: 1
Claim Your Seller Account
RF-Rated SPFT Feed Thru Ceramic Capacitors
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

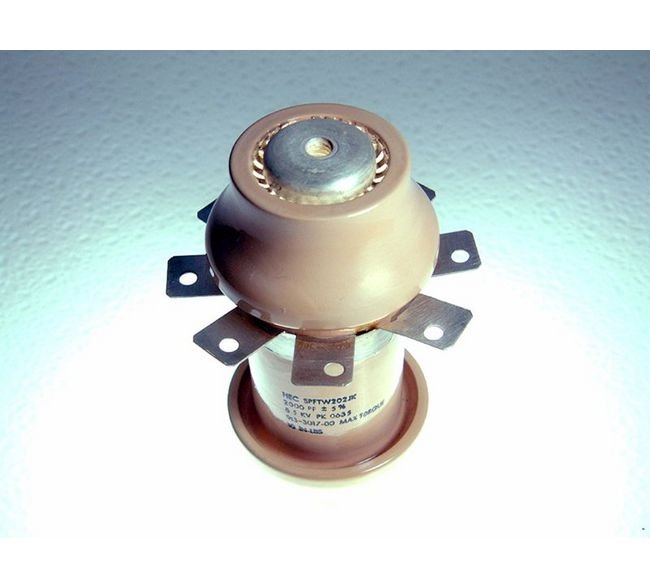

Elevate your RF system performance with the High Energy Corporation SPFT Series RF-Rated Feed-Thru Ceramic Capacitors. These hollow ceramic tubes efficiently bypass RF energy to ground, ensuring exceptional signal integrity. Crafted with premium Class I dielectrics, they boast a low dissipation factor and broad bandwidth, making them ideal for RF heating, power transmitters, and high voltage filters. With capacitance tolerance of 2000 ± 5% pF and VMAX (DC) of 8.5 kV, these capacitors meet stringent RF requirements.
Product Specifications
Specifications Capacitance Tolerance
2000 ± 5% pF
Specifications Dielectric Tc
N470
Specifications Physical Length
5.156 in
Specifications Physical Type
II
Specifications Vmax Dc
8.5 kV
